ВИДЕО И БЫТОВАЯ ТЕХНИКА Инструкция по эксплуатации GB RUS UA…

Инструкция по эксплуатации Support chat

  • Image
  • Text

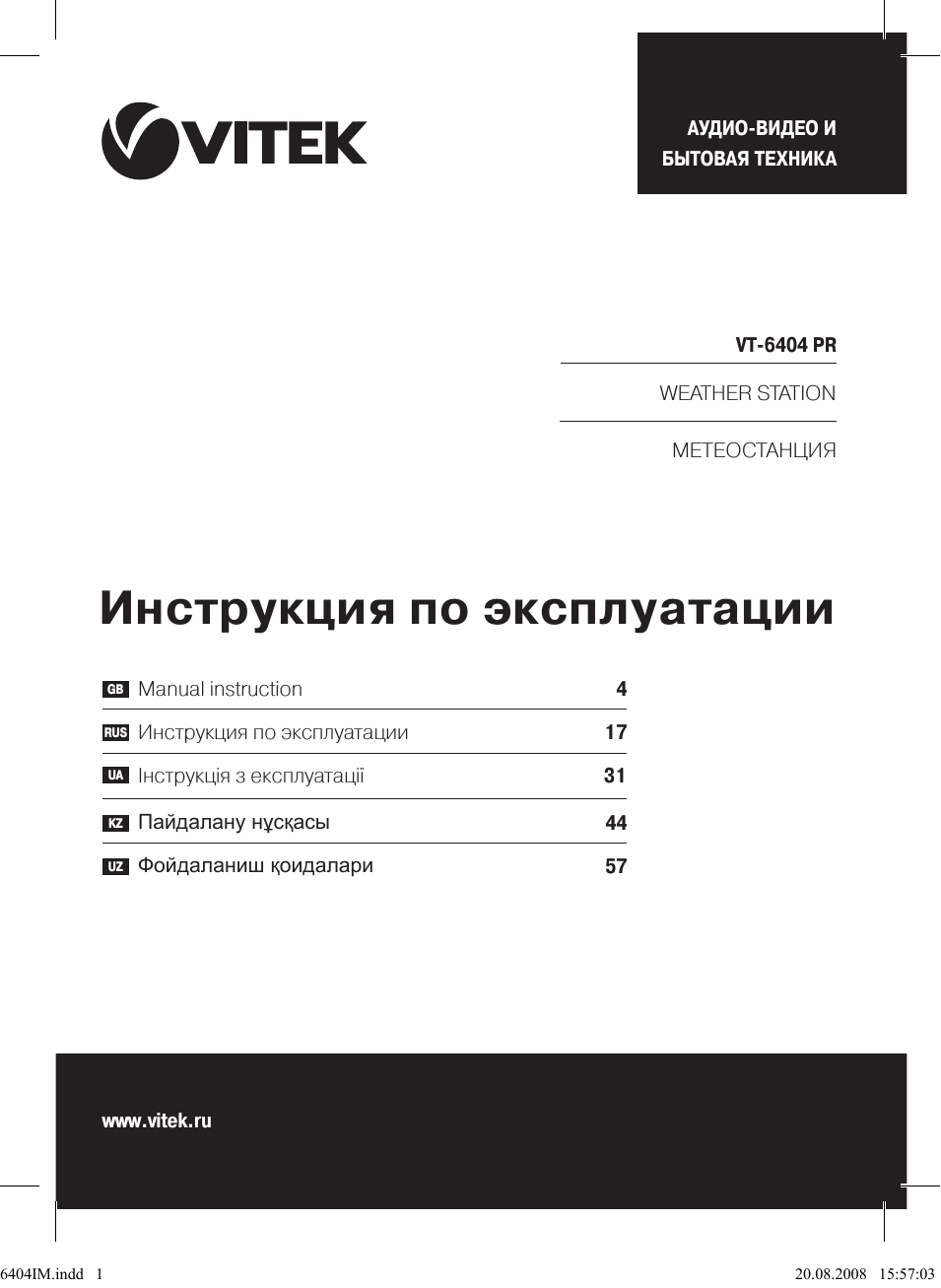

АУДИО-ВИДЕО И

БЫТОВАЯ ТЕХНИКА

Инструкция по эксплуатации

GB

RUS

UA

KZ

UZ

Manual instruction

Инструкция по эксплуатации

Інструкція з експлуатації

Пайдалану нұсқасы

Фойдаланиш қоидалари

www.vitek.ru

4

17

31

44

57

VT-6404 PR

WEATHER STATION

МЕТЕОСТАНЦИЯ

6404IM.indd 1

20.08.2008 15:57:03

ВИДЕО И БЫТОВАЯ ТЕХНИКА Инструкция по эксплуатации GB RUS UA...



6404IM.indd 2

20.08.2008 15:57:03

Инструкция по эксплуатации

С



6404IM.indd 3

20.08.2008 15:57:03

***

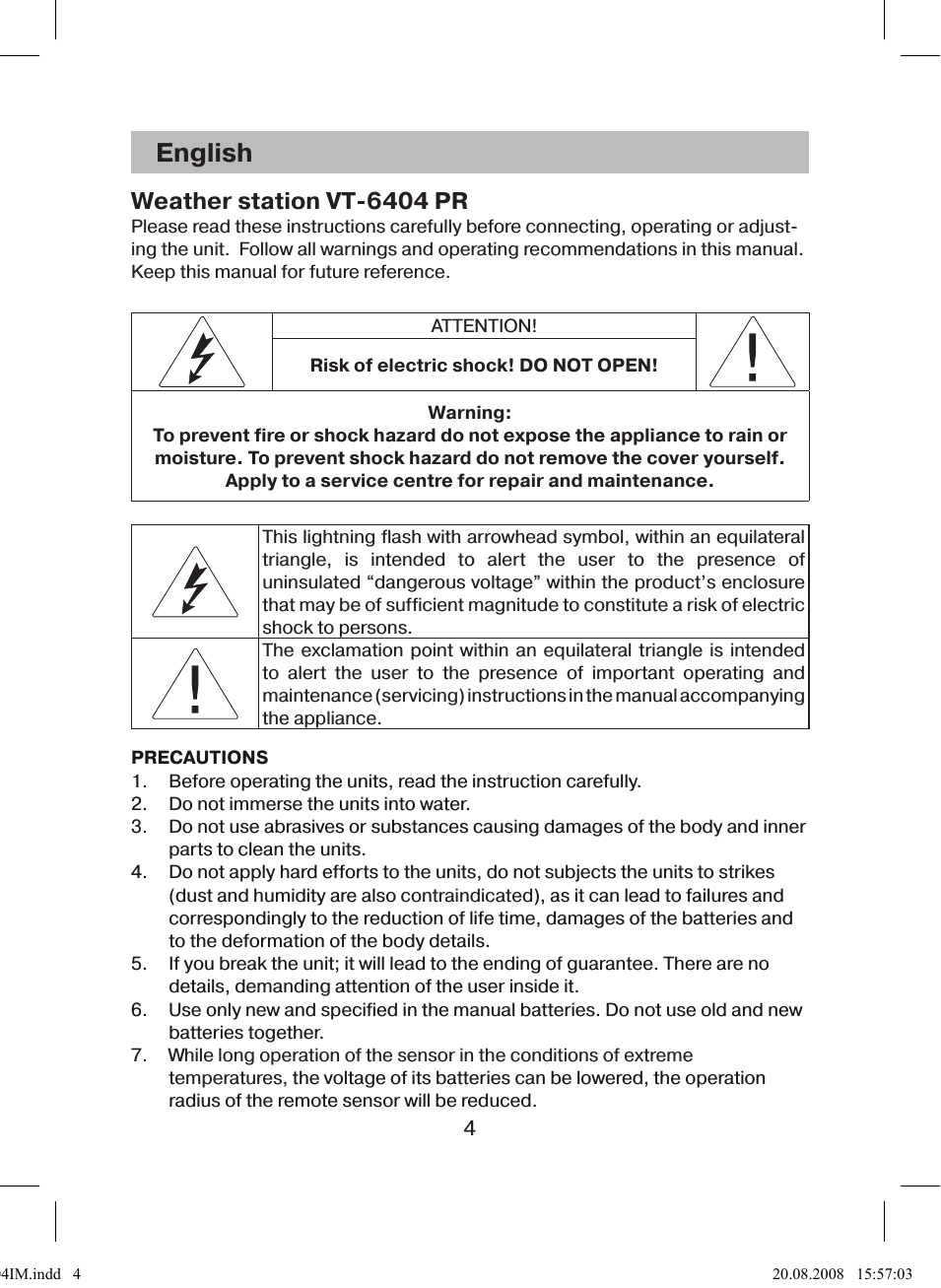

English



Weather station VT-6404 PR

Please read these instructions carefully before connecting, operating or adjust-
ing the unit. Follow all warnings and operating recommendations in this manual.
Keep this manual for future reference.

ATTENTION!

Risk of electric shock! DO NOT OPEN!

Warning:

To prevent fire or shock hazard do not expose the appliance to rain or

moisture. To prevent shock hazard do not remove the cover yourself.

Apply to a service centre for repair and maintenance.

This lightning flash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of
uninsulated “dangerous voltage” within the product’s enclosure
that may be of sufficient magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operating and
maintenance (servicing) instructions in the manual accompanying
the appliance.

PRECAUTIONS
1. Before operating the units, read the instruction carefully.
. Do not immerse the units into water.
. Do not use abrasives or substances causing damages of the body and inner

parts to clean the units.

. Do not apply hard efforts to the units, do not subjects the units to strikes

(dust and humidity are also

contraindicated

), as it can lead to failures and

correspondingly to the reduction of life time, damages of the batteries and
to the deformation of the body details.

5. If you break the unit; it will lead to the ending of guarantee. There are no

details, demanding attention of the user inside it.

6. Use only new and specified in the manual batteries. Do not use old and new

batteries together.

7.

While long operation of the sensor in the conditions of extreme
temperatures,

the voltage of its batteries can be lowered, the operation

radius of the remote sensor will be reduced.

6404IM.indd 4

20.08.2008 15:57:03

English, Weather station vt-6404 pr

English

5

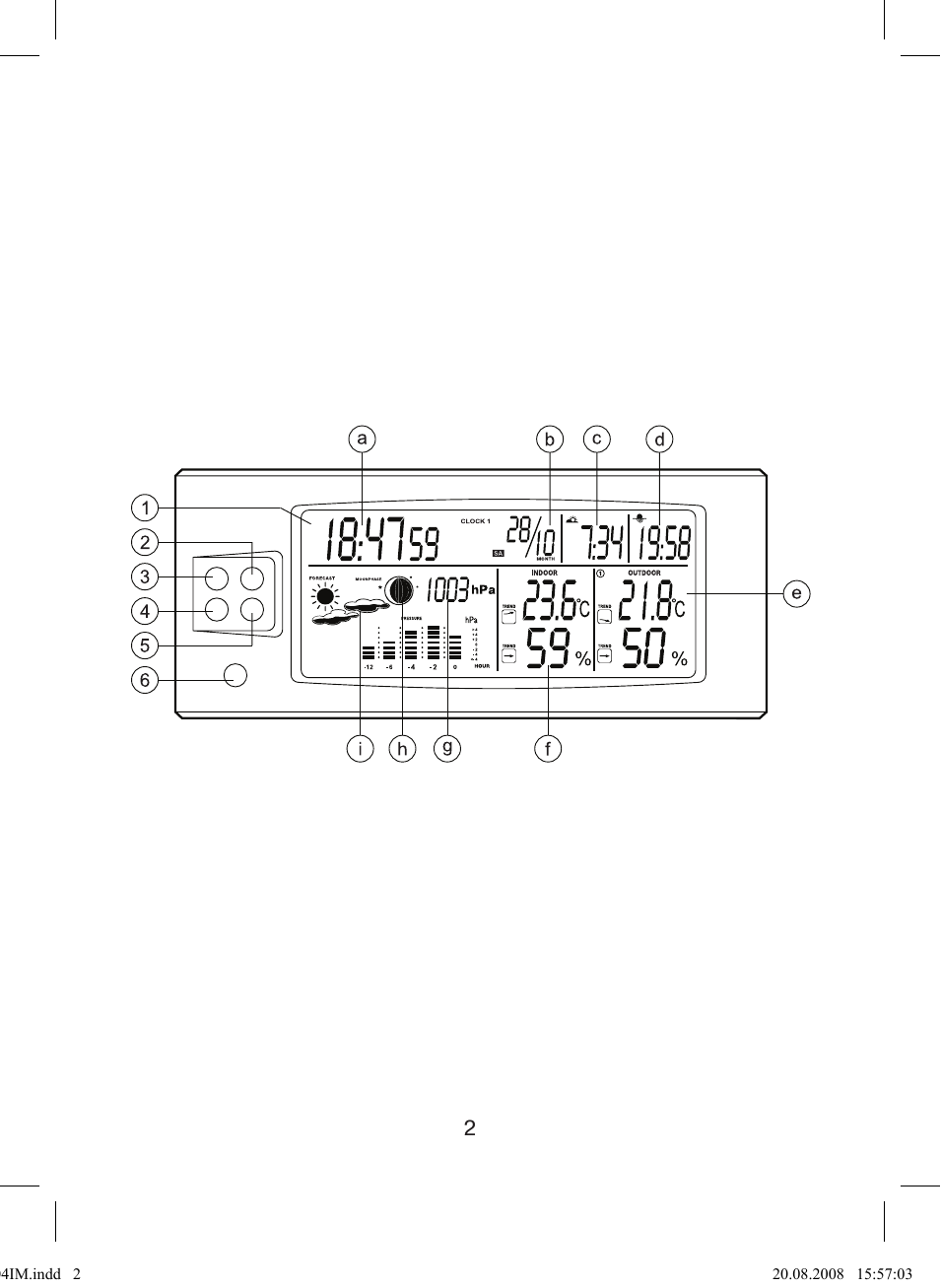

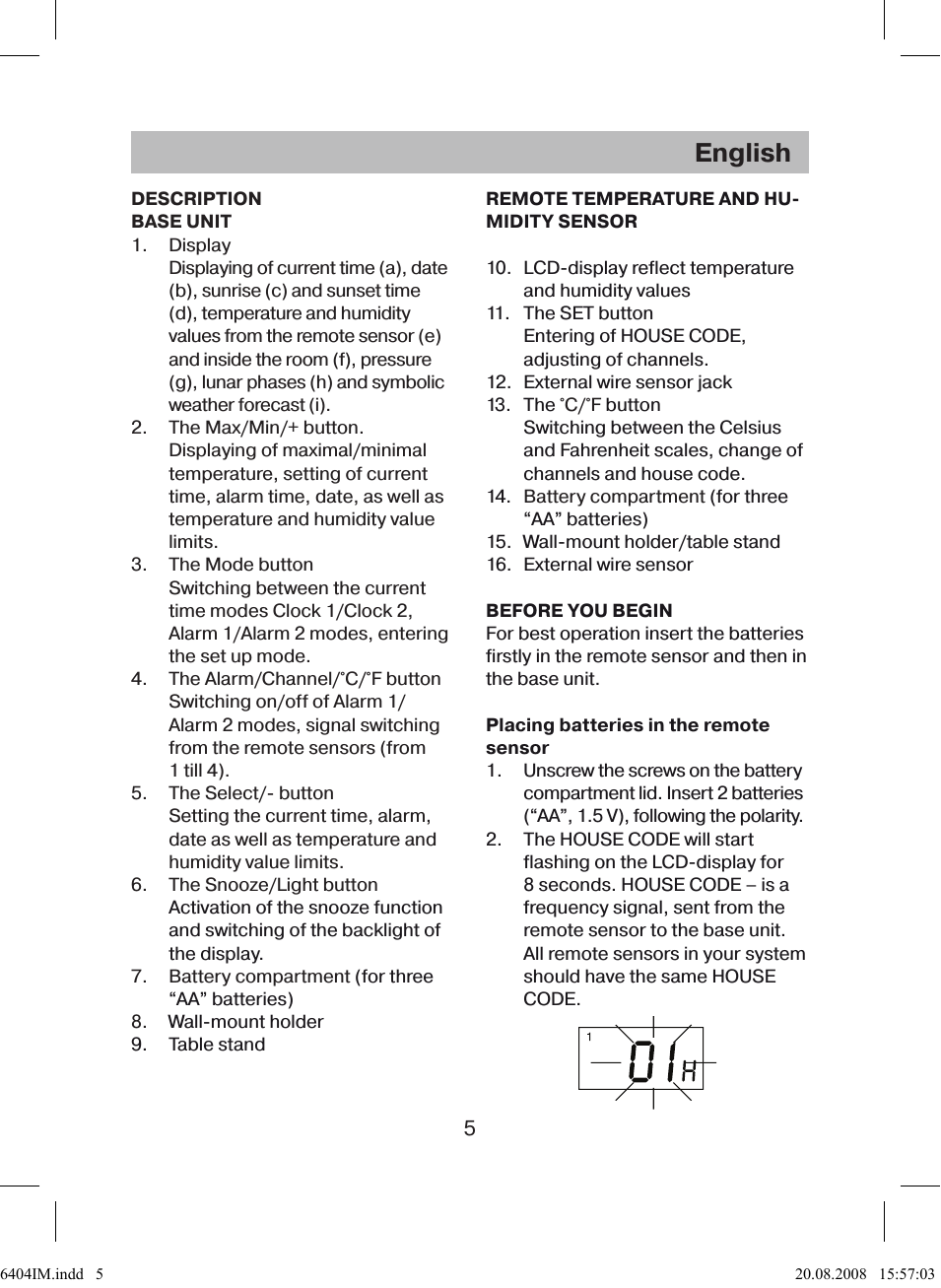

DESCRIPTION
BASE UNIT
1. Display

Displaying of current time (a), date
(b), sunrise (c) and sunset time
(d), temperature and humidity
values from the remote sensor (e)
and inside the room (f), pressure
(g), lunar phases (h) and symbolic
weather forecast (i).

. The Max/Min/+ button.

Displaying of maximal/minimal
temperature, setting of current
time, alarm time, date, as well as
temperature and humidity value
limits.

. The Mode button

Switching between the current
time modes Clock 1/Clock ,
Alarm 1/Alarm  modes, entering
the set up mode.

. The Alarm/Channel/°C/°F button

Switching on/off of Alarm 1/
Alarm  modes, signal switching
from the remote sensors (from
1 till ).

5. The Select/- button

Setting the current time, alarm,
date as well as temperature and
humidity value limits.

6. The Snooze/Light button

Activation of the snooze function
and switching of the backlight of
the display.

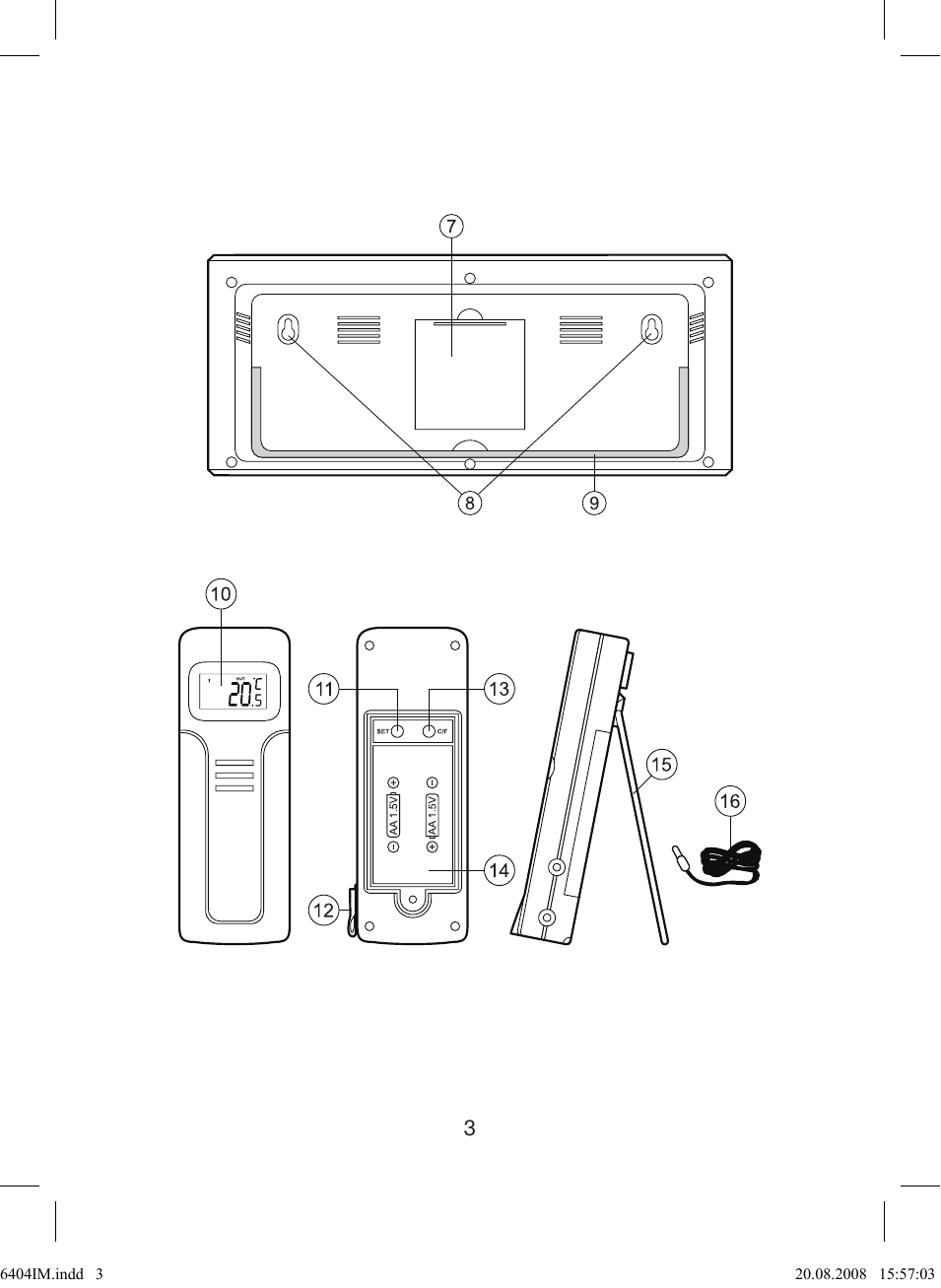

7. Battery compartment

(for three

“АА” batteries)

8.

Wall-mount holder

9. Table stand

REMOTE TEMPERATURE AND HU-
MIDITY SENSOR

10. LCD-display reflect temperature

and humidity values

11. The SET button

Entering of HOUSE CODE,
adjusting of channels.

1. External wire sensor jack
1. The

°C/°F

button

Switching between the Celsius
and Fahrenheit scales, change of
channels and house code.

1.

Battery compartment

(for three

“АА” batteries)

15. Wall-mount holder/table stand
16. External wire sensor

BEFORE YOU BEGIN
For best operation insert the batteries
firstly in the remote sensor and then in
the base unit.

Placing batteries in the remote
sensor
1. Unscrew the screws on the battery

compartment lid.

Insert  batteries

(“АА”, 1.5 V), following the polarity.

. The HOUSE CODE will start

flashing on the LCD-display for
8 seconds. HOUSE CODE – is a
frequency signal, sent from the
remote sensor to the base unit.
All remote sensors in your system
should have the same HOUSE
CODE.

6404IM.indd 5

20.08.2008 15:57:03

English

English

6

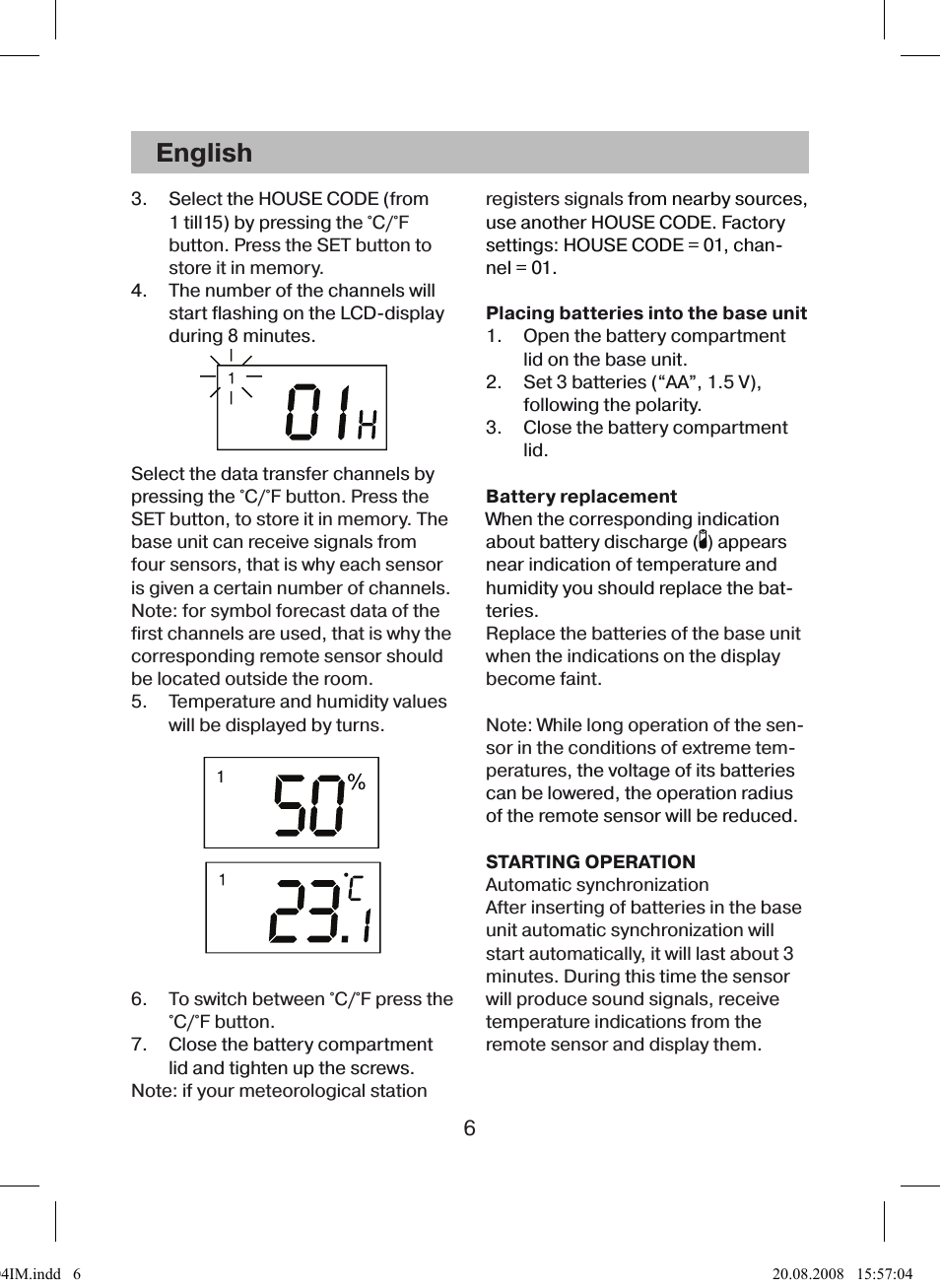

. Select the HOUSE CODE (from

1 till15) by pressing the

°C/°F

button. Press the SET button to
store it in memory.

. The number of the channels will

start flashing on the LCD-display
during 8 minutes.

Select the data transfer channels by
pressing the

°C/°F button. Press the

SET button, to store it in memory. The
base unit can receive signals from
four sensors, that is why each sensor
is given a certain number of channels.
Note: for symbol forecast data of the
first channels are used, that is why the
corresponding remote sensor should
be located outside the room.
5. Temperature and humidity values

will be displayed by turns.

6. To switch between °C/°F press the

°C/°F button.

7. Close the battery compartment

lid and tighten up the screws.

Note: if your meteorological station

registers signals

from nearby sources,

use another HOUSE CODE. Factory
settings: HOUSE CODE = 01, chan-
nel = 01.

Placing batteries into the base unit
1. Open the battery compartment

lid on the base unit.

. Set  batteries (“АА”, 1.5 V),

following the polarity.

. Close the battery compartment

lid.

Battery replacement
When the corresponding indication
about battery discharge (

)

appears

near indication of temperature and
humidity you should replace the bat-
teries.

Replace the batteries of the base unit
when the indications on the display
become faint.

Note: While long operation of the sen-
sor in the conditions of extreme tem-
peratures,

the voltage of its batteries

can be lowered, the operation radius
of the remote sensor will be reduced.

STARTING OPERATION

Automatic synchronization
After inserting of batteries in the base
unit automatic synchronization will
start automatically, it will last about
minutes. During this time the sensor
will produce sound signals, receive
temperature indications from the
remote sensor and display them.

6404IM.indd 6

20.08.2008 15:57:04

English

English

7

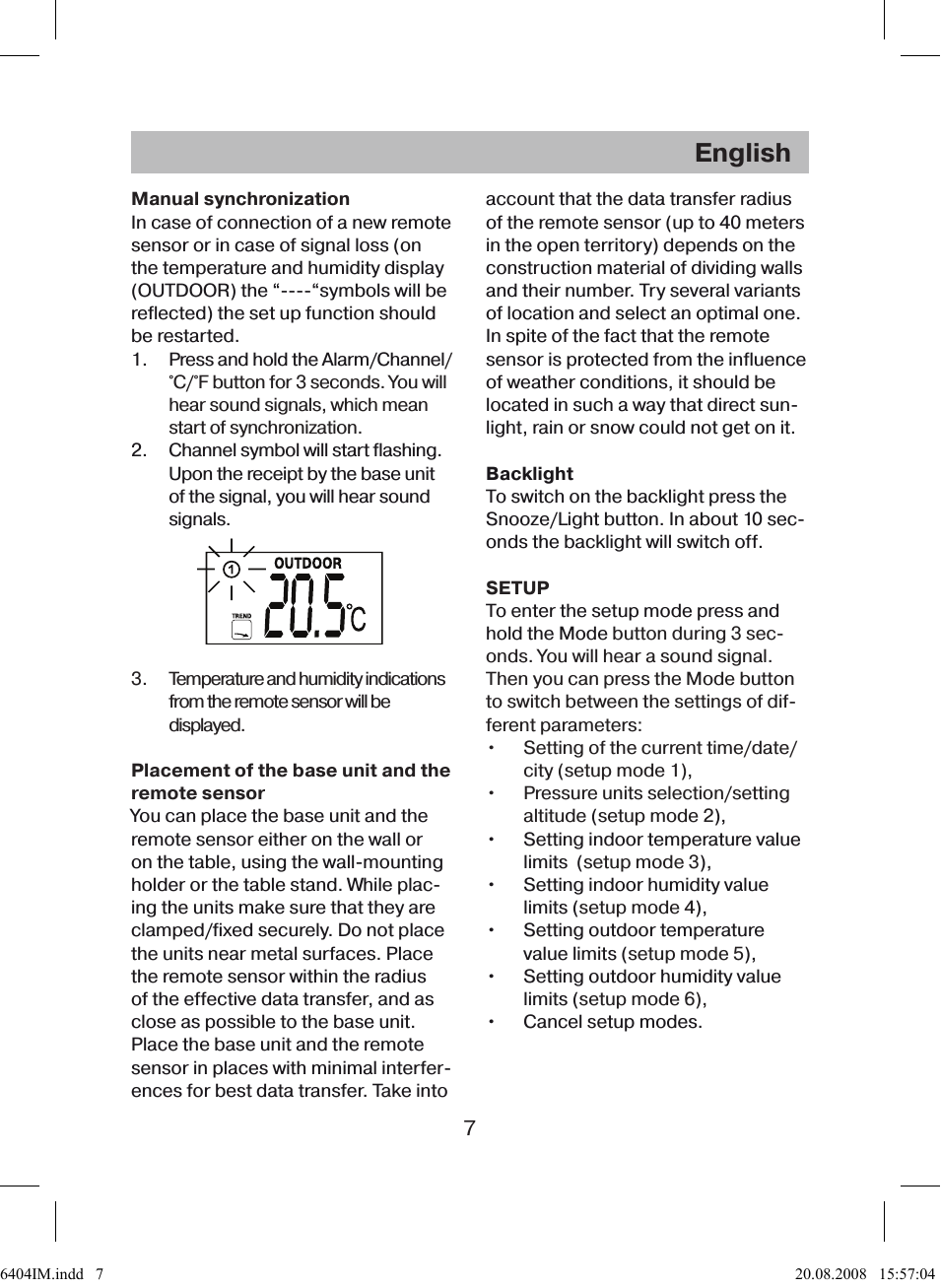

Manual synchronization

In case of connection of a new remote
sensor or in case of signal loss (on
the temperature and humidity display
(OUTDOOR) the “—-“symbols will be
reflected) the set up function should
be restarted.
1. Press and hold the Alarm/Channel

/

°C/°F button for  seconds. You will
hear sound signals, which mean
start of synchronization.

. Channel symbol will start flashing.

Upon the receipt by the base unit
of the signal, you will hear sound
signals.

. Temperature and humidity indications

from the remote sensor will be
displayed.

Placement of the base unit and the
remote sensor

You can place the base unit and the
remote sensor either on the wall or
on the table, using the wall-mounting
holder or the table stand. While plac-
ing the units make sure that they are
clamped/fixed securely. Do not place
the units near metal surfaces. Place
the remote sensor within the radius
of the effective data transfer, and as
close as possible to the base unit.
Place the base unit and the remote
sensor in places with minimal interfer-
ences for best data transfer.

Take into

account that the data transfer radius
of the remote sensor (up to 0 meters
in the open territory) depends on the
construction material of dividing walls
and their number. Try several variants
of location and select an optimal one.
In spite of the fact that the remote
sensor is protected from the influence
of weather conditions, it should be
located in such a way that direct sun-
light, rain or snow could not get on it.

Backlight
To switch on the backlight press the
Snooze/Light button. In about 10 sec-
onds the backlight will switch off.

SETUP

To enter the setup mode press and
hold the Mode

button during  sec-

onds. You will hear a sound signal.
Then you can press the Mode button
to switch between the settings of dif-
ferent parameters:

Setting of the current time/date/
city (setup mode 1),

Pressure units selection/setting
altitude

(

setup mode

),

Setting indoor temperature value
limits (

setup mode

),

Setting indoor humidity value
limits (

setup mode

),

Setting outdoor temperature
value limits (

setup mode 5

),

Setting outdoor humidity value
limits (

setup mode 6),

Cancel setup modes.

6404IM.indd 7

20.08.2008 15:57:04

English

English

8

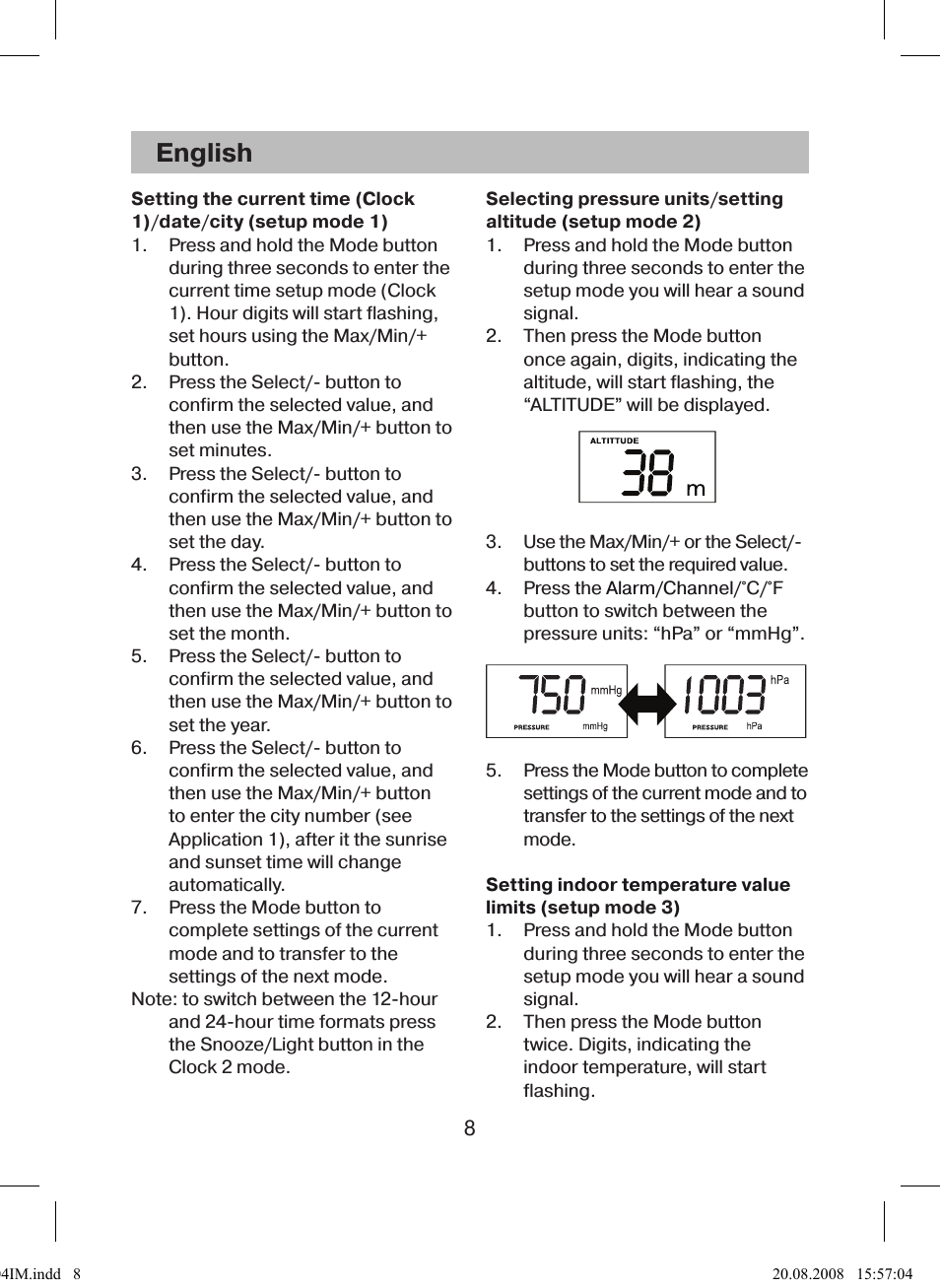

Setting the current time (Clock
1)/date/city (setup mode 1)
1. Press and hold the Mode button

during three seconds to enter the
current time setup mode (Clock
1). Hour digits will start flashing,
set hours using the Max/Min/+
button.

. Press the Select/- button to

confirm the selected value, and
then use the Max/Min/+ button to
set minutes.

. Press the Select/- button to

confirm the selected value, and
then use the Max/Min/+ button to
set the day.

. Press the Select/- button to

confirm the selected value, and
then use the Max/Min/+ button to
set the month.

5. Press the Select/- button to

confirm the selected value, and
then use the Max/Min/+ button to
set the year.

6. Press the Select/- button to

confirm the selected value, and
then use the Max/Min/+ button
to enter the city number (see
Application 1), after it the sunrise
and sunset time will change
automatically.

7. Press the Mode button to

complete settings of the current
mode and to transfer to the
settings of the next mode.

Note: to switch between the 1-hour

and -hour time formats press
the Snooze/Light button in the
Clock  mode.

Selecting pressure units/setting
altitude

(

setup mode 2

)

1.

Press and hold the Mode button
during three seconds to enter the
setup mode you will hear a sound
signal.

. Then press the Mode button

once again, digits, indicating the
altitude, will start flashing, the
“ALTITUDE” will be displayed.

. Use the Max/Min/+ or the Select/-

buttons to set the required value.

. Press the

Alarm/Channel

/°C/°F

button to switch between the
pressure units: “hPa” or “mmHg”.

5. Press the Mode button to complete

settings of the current mode and to
transfer to the settings of the next
mode.

Setting indoor temperature value
limits (

setup mode 3

)

1.

Press and hold the Mode button
during three seconds to enter the
setup mode you will hear a sound
signal.

. Then press the Mode button

twice. Digits, indicating the
indoor temperature, will start
flashing.

6404IM.indd 8

20.08.2008 15:57:04

English

English

9

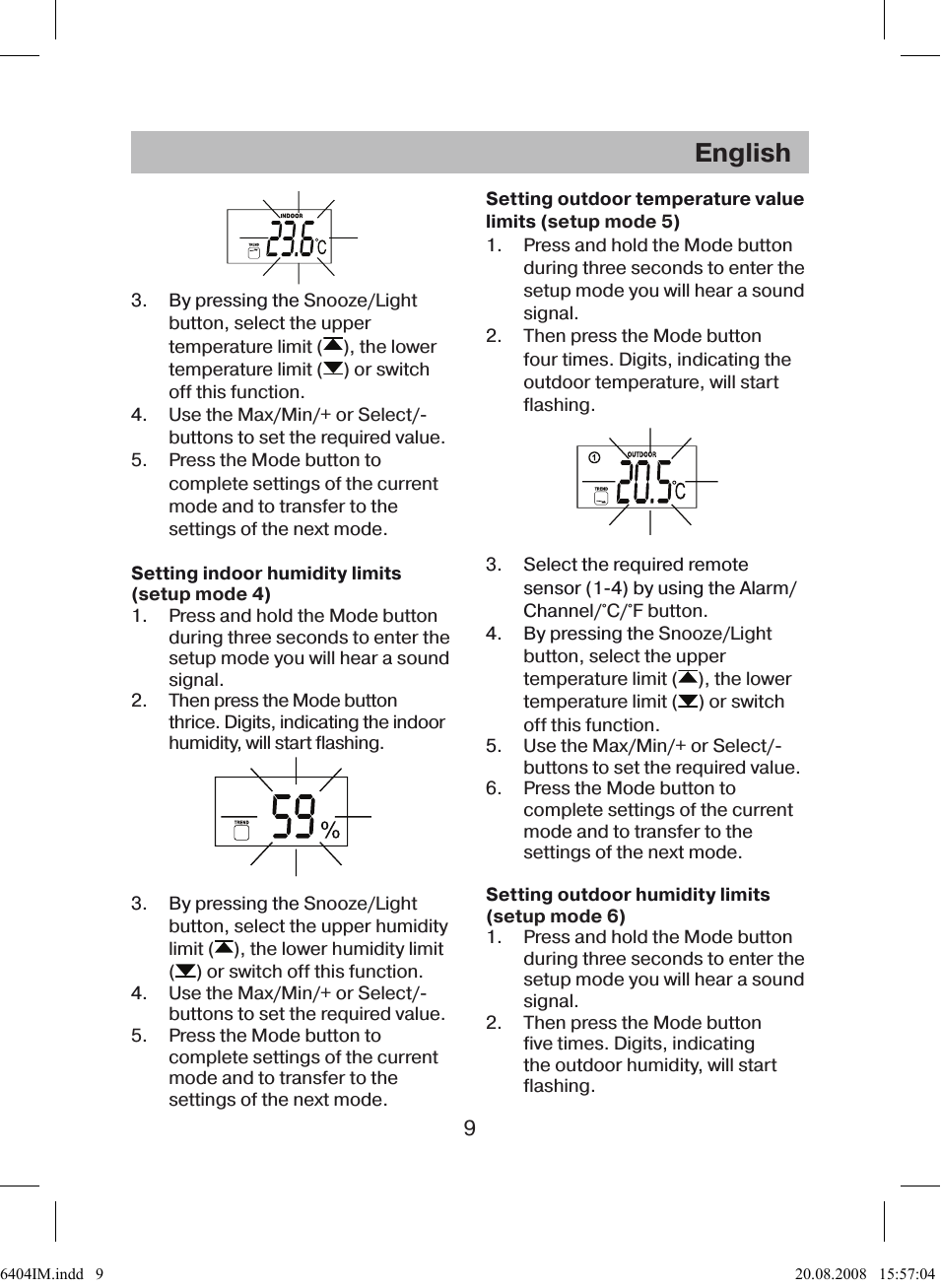

. By pressing the

Snooze/Light

button, select the upper
temperature limit ( ), the lower
temperature limit ( ) or switch
off this function.

.

Use the Max/Min/+ or Select/-
buttons to set the required value.

5. Press the Mode button to

complete settings of the current
mode and to transfer to the
settings of the next mode.

Setting indoor humidity limits
(

setup mode 4

)

1.

Press and hold the Mode button
during three seconds to enter the
setup mode you will hear a sound
signal.

. Then press the Mode button

thrice. Digits, indicating the indoor
humidity, will start flashing.

. By pressing the

Snooze/Light

button, select the upper humidity
limit ( ), the lower humidity limit
( ) or switch off this function.

.

Use the Max/Min/+ or Select/-
buttons to set the required value.

5. Press the Mode button to

complete settings of the current
mode and to transfer to the
settings of the next mode.

Setting outdoor temperature value
limits (

setup mode 5

)

1.

Press and hold the Mode button
during three seconds to enter the
setup mode you will hear a sound
signal.

. Then press the Mode button

four times. Digits, indicating the
outdoor temperature, will start
flashing.

. Select the required remote

sensor (1-) by using the Alarm/
Channel

/°C/°F button.

. By pressing the

Snooze/Light

button, select the upper
temperature limit ( ), the lower
temperature limit ( ) or switch
off this function.

5.

Use the Max/Min/+ or Select/-
buttons to set the required value.

6. Press the Mode button to

complete settings of the current
mode and to transfer to the
settings of the next mode.

Setting outdoor humidity limits
(

setup mode 6)

1.

Press and hold the Mode button
during three seconds to enter the
setup mode you will hear a sound
signal.

. Then press the Mode button

five times. Digits, indicating
the outdoor humidity, will start
flashing.

6404IM.indd 9

20.08.2008 15:57:04

English

English

10

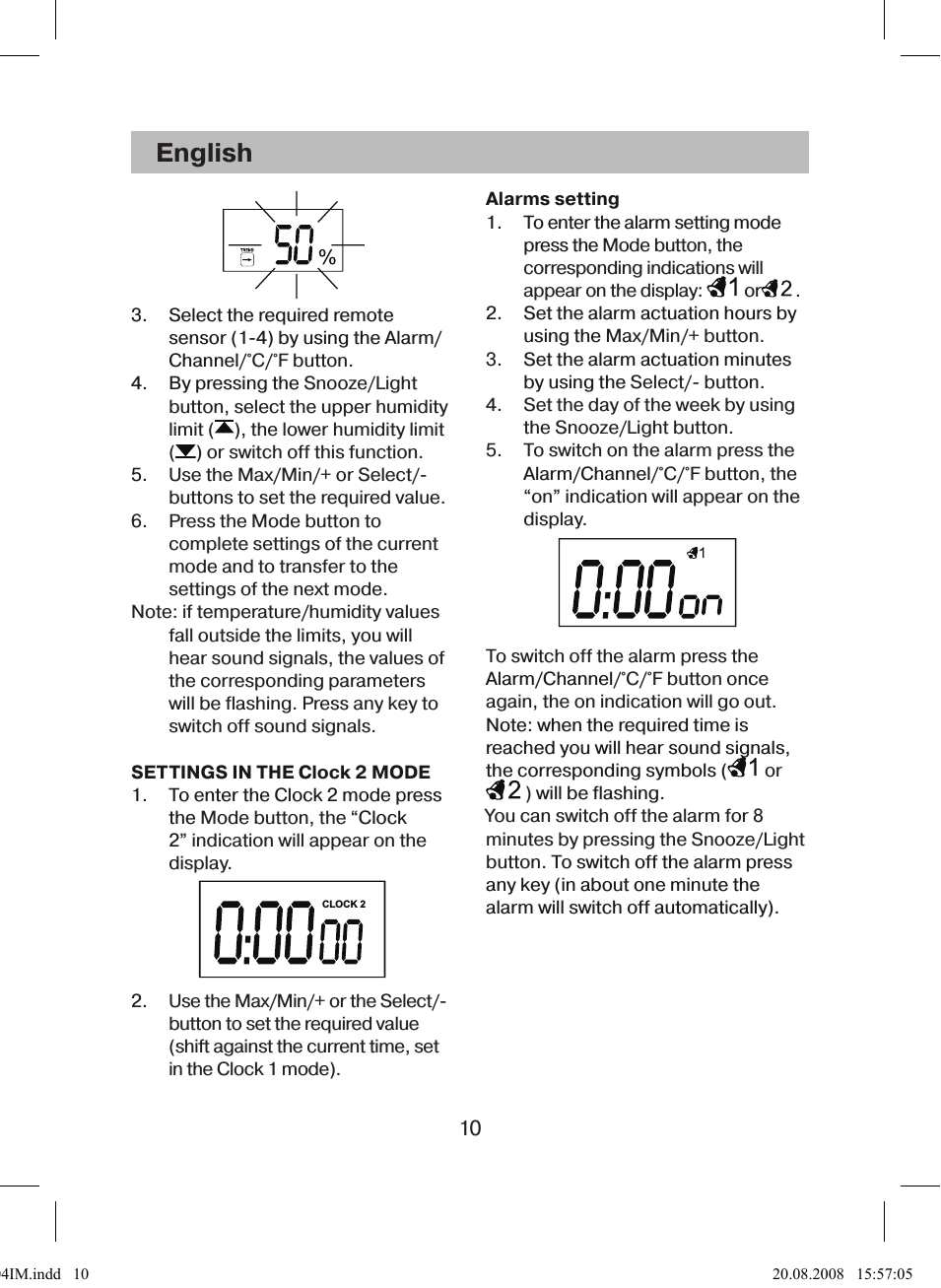

. Select the required remote

sensor (1-) by using the Alarm/
Channel

/°C/°F button.

. By pressing the

Snooze/Light

button, select the upper humidity
limit ( ), the lower humidity limit
( ) or switch off this function.

5.

Use the Max/Min/+ or Select/-
buttons to set the required value.

6. Press the Mode button to

complete settings of the current
mode and to transfer to the
settings of the next mode.

Note: if temperature/humidity values

fall outside the limits, you will
hear sound signals, the values of
the corresponding parameters
will be flashing. Press any key to
switch off sound signals.

SETTINGS IN THE Clock 2 MODE
1. To enter the Clock  mode press

the

Mode button, the “

Clock



” indication will appear on the

display.

CLOCK 2

.

Use the Max/Min/+ or the Select/-
button to set the required value
(shift against the current time, set
in the Clock 1 mode).

Alarms setting
1. To enter the alarm setting mode

press the

Mode button, the

corresponding indications will
appear on the display:

or

.

. Set the alarm actuation hours by

using the

Max/Min/+ button.

.

Set the alarm actuation minutes
by using the

Select/- button.

. Set the day of the week by using

the Snooze/Light button.

5. To switch on the alarm press the

Alarm/Channel

/°C/°F button, the

“on” indication will appear on the
display.

To switch off the alarm press the

Alarm/Channel

/°C/°F button once

again, the on indication will go out.

Note: when the required time is
reached you will hear sound signals,
the corresponding symbols (

or

)

will be flashing.

You can switch off the alarm for 8
minutes by pressing the Snooze/Light
button.

To switch off the alarm press

any key (in about one minute the
alarm will switch off automatically).

6404IM.indd 10

20.08.2008 15:57:05

English

04:32

Увлажнитель воздуха VITEK VT-1764

05:23

Обзор мультиварки Vitek VT-4209

02:04

Обозреваем увлажнитель VITEK VT-2336 BK

11:49

Сравнение Vitek VT 1885 и Dyson DC 25

04:03

Метеостанция Vitek 6401. Совместимость датчиков

18:44

Лучшие пылесосы 2018-2019

13:11

ТОП 5 ЛУЧШИХ ВЕРТИКАЛЬНЫХ ПЫЛЕСОСОВ ОТ РАЗНЫХ ФИРМ ПРОИЗВОДИТЕЛЕЙ

Press the button for help

  • Инструкции по эксплуатации

    1

Vitek VT-6404 PR инструкция по эксплуатации
(72 страницы)

  • Языки:Русский
  • Тип:
    PDF
  • Размер:
    5.35 MB
  • Описание:
    Многофункциональные часы

Просмотр

На NoDevice можно скачать инструкцию по эксплуатации для Vitek VT-6404 PR. Руководство пользователя необходимо для ознакомления с правилами установки и эксплуатации Vitek VT-6404 PR. Инструкции по использованию помогут правильно настроить Vitek VT-6404 PR, исправить ошибки и выявить неполадки.

Страницы и текст этой инструкции

Инструкция — VT-6404 PR


Информация отображена на картинке


Информация отображена на картинке


Информация отображена на картинке


Информация отображена на картинке


Как использовать наш сайт инструкций OnlineManuals.ru
Наша цель состоит в том, чтобы предоставить вам быстрый доступ к содержанию инструкции для — VT-6404 PR.
С помощью онлайн просмотра, Вы можете быстро просмотреть содержимое инструкции и найти решение проблемы с — VT-6404 PR.

Для Вашего удобства
Если листать руководство пользователя — VT-6404 PR прямо на сайте, не очень удобно для Вас, есть два возможных решения:

• Просмотр в полноэкранном режиме — легко просмотреть руководство пользователя (без загрузки его на свой компьютер), Вы можете использовать режим полноэкранного просмотра.
Для просмотра инструкции пользователя — VT-6404 PR на полном экране, используйте кнопку «Открыть в Pdf-viewer».

• Загрузка на компьютер — Вы можете также скачать Инструкция — VT-6404 PR на свой компьютер и сохранить его в файлах.

Многие люди предпочитают читать документы не на экране, а в печатной версии.
Возможность печати руководства пользователя также была предусмотрена на нашем сайте,
и вы можете использовать ее, нажав на иконку «печать» в Pdf-viewer.
Нет необходимости печатать все руководство — VT-6404 PR, можно выбрать только нужные страницы инструкции.

Русский Инструкция по эксплуатации Vitek VT-6404 PR

Страница 29 в инструкции по эксплуатации Vitek VT-6404 PR

Русский

Комплект поставки 1 Базовый блок – 1 шт. Дистанционный датчик – 1 шт. Внешний проводной датчик – 1шт. Инструкция – 1 шт.

Приложение 1

Номер.

Город

Страна

Краснодар

Россия

Москва

Россия

Новосибирск

Россия

Самара

Россия

Санкт-Петербург

Россия

Россия

Владивосток

Россия

Екатеринбург

Россия

Астана

Казахстан

Ташкент

Узбекистан

Ашхабад

Туркменистан

Кабул

Афганистан

Душанбе

Таджикистан

Прага

Чешская республика

Париж

Франция

Таллинн

Эстония

Минск

Беларусь

Рига

Латвия

Вильнюс

Литва

Киев

Украина

Варшава

Польша

Берлин

Германия

Вена

Австрия

ВНИМАНИЕ! Из-за ограничений в процессе печати дисплей показанный в этой инструкции может отличаться от фактического дисплея.

Производитель оставляет за собой право изменять дизайн и технические характеристики прибора без предварительного уведомления.

Производитель сохраняет за собой право изменять дизайн и технические характеристики прибора без предварительного уведомления.

6404IM.indd 29

20.08.2008 15:57:08

Понравилась статья? Поделить с друзьями:
0 0 голоса
Рейтинг статьи
Подписаться
Уведомить о
guest

0 комментариев
Старые
Новые Популярные
Межтекстовые Отзывы
Посмотреть все комментарии
  • Как организовать ип с нуля самостоятельно пошаговая инструкция
  • Регистрация общественной организации через госуслуги пошаговая инструкция
  • Натрия сульфат 10 водный инструкция по применению для крс
  • Промакс таблетки инструкция по применению
  • Должностная инструкция начальника жэу
