EWF 1287 HDW

EWF 1487 HDW

EWF 1687 HDW

EN WASHING MACHINE

USER MANUAL

2

RU СТИРАЛЬНАЯ МАШИНА ИНСТРУКЦИЯ ПО ЭКСПЛУАТАЦИИ

27

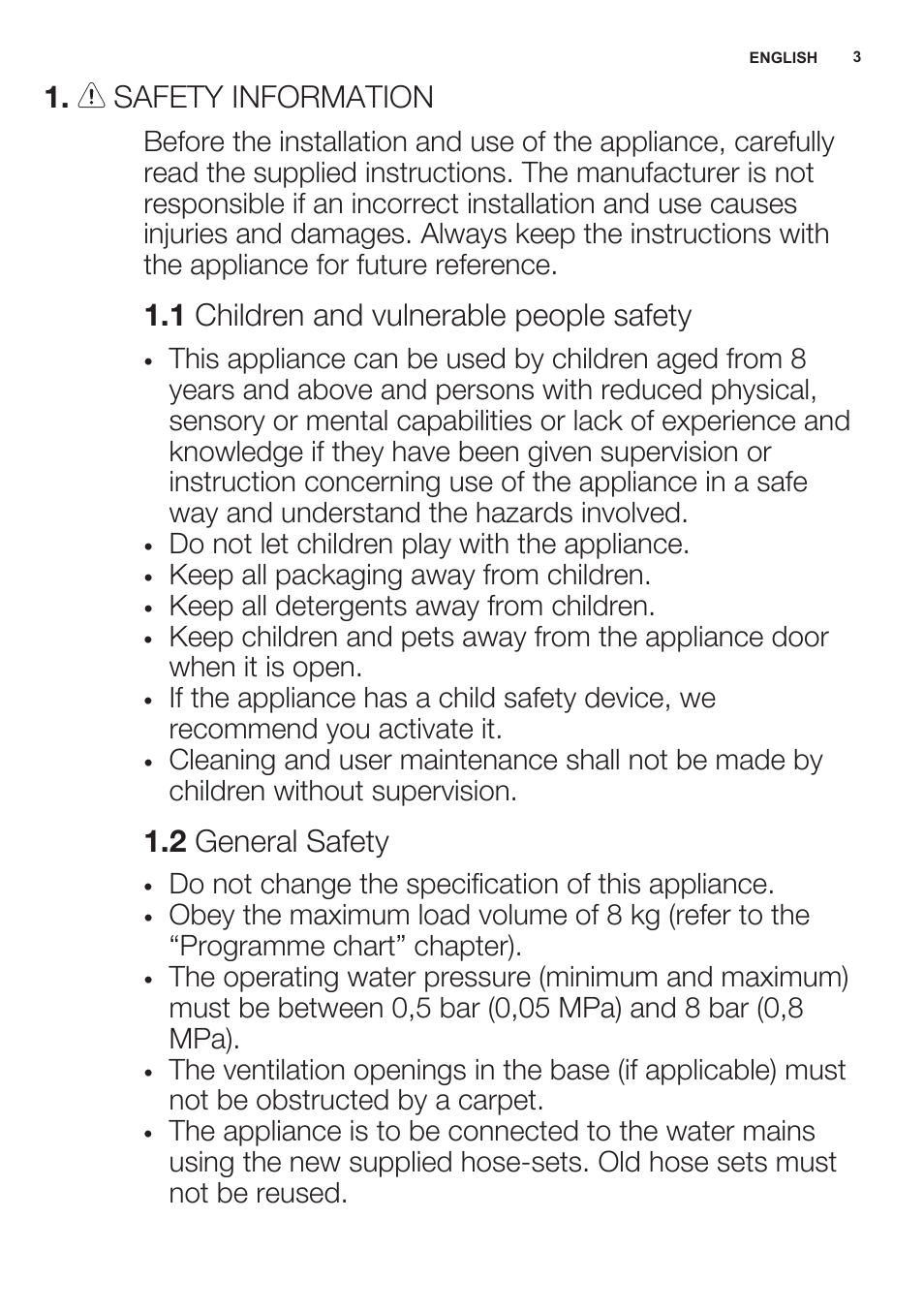

1. SAFETY INFORMATION

Before the installation and use of the appliance, carefully

read the supplied instructions. The manufacturer is not

responsible if an incorrect installation and use causes

injuries and damages. Always keep the instructions with

the appliance for future reference.

1.1 Children and vulnerable people safety

•

This appliance can be used by children aged from 8

years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience and

knowledge if they have been given supervision or

instruction concerning use of the appliance in a safe

way and understand the hazards involved.

•

Do not let children play with the appliance.

•

Keep all packaging away from children.

•

Keep all detergents away from children.

•

Keep children and pets away from the appliance door

when it is open.

•

If the appliance has a child safety device, we

recommend you activate it.

•

Cleaning and user maintenance shall not be made by

children without supervision.

1.2 General Safety

•

Do not change the specification of this appliance.

•

Obey the maximum load volume of 8 kg (refer to the

“Programme chart” chapter).

•

The operating water pressure (minimum and maximum)

must be between 0,5 bar (0,05 MPa) and 8 bar (0,8

MPa).

•

The ventilation openings in the base (if applicable) must

not be obstructed by a carpet.

•

The appliance is to be connected to the water mains

using the new supplied hose-sets. Old hose sets must

not be reused.

ENGLISH

3

•

If the supply cord is damaged, it must be replaced by

the manufacturer, its Authorised Service Centre or

similarly qualified persons in order to avoid a hazard.

•

Before maintenance, deactivate the appliance and

disconnect the mains plug from the mains socket.

•

Do not use water spray and steam to clean the

appliance.

•

Clean the appliance with a moist soft cloth. Only use

neutral detergents. Do not use abrasive products,

abrasive cleaning pads, solvents or metal objects.

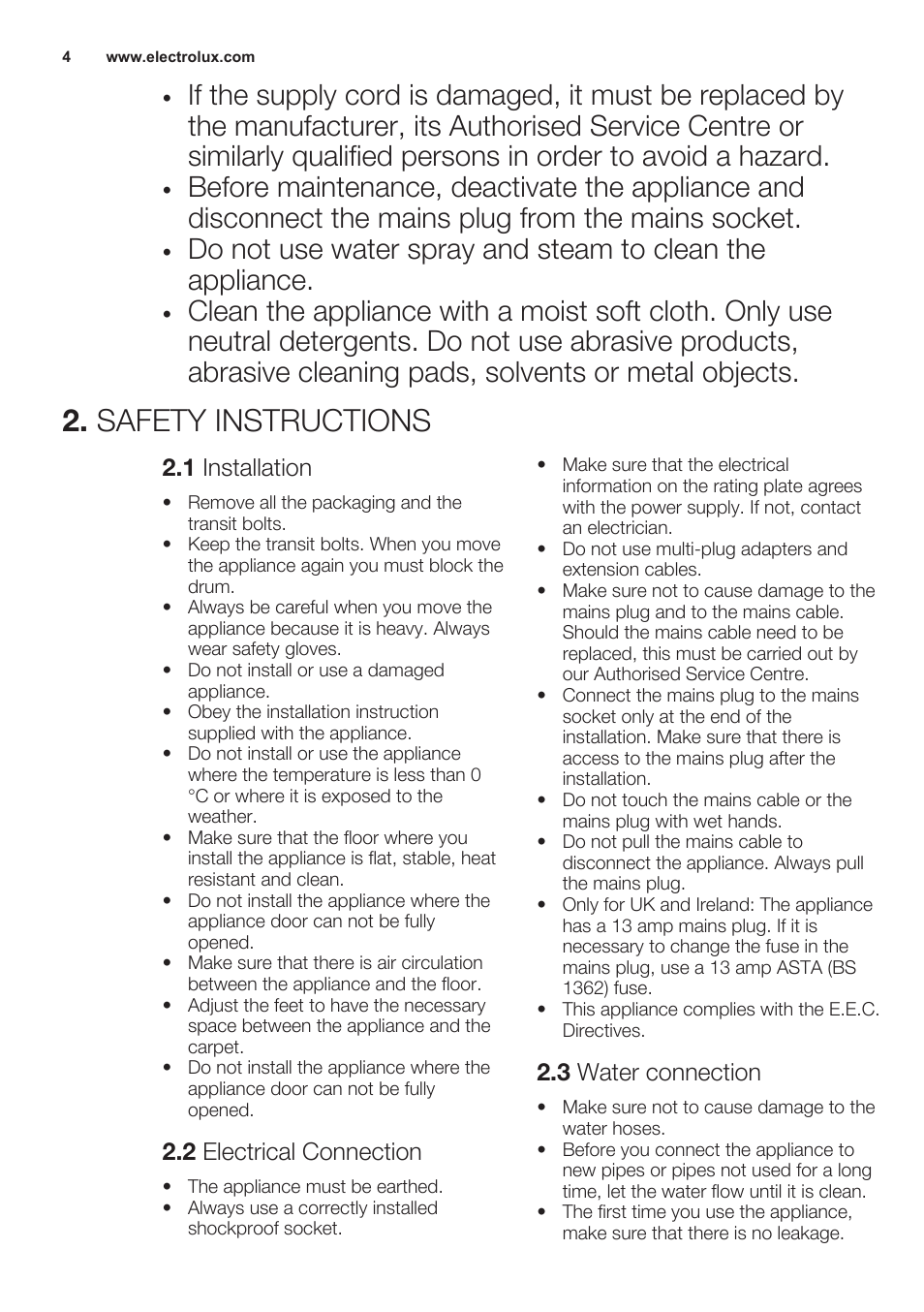

2. SAFETY INSTRUCTIONS

2.1 Installation

• Remove all the packaging and the

transit bolts.

• Keep the transit bolts. When you move

the appliance again you must block the

drum.

• Always be careful when you move the

appliance because it is heavy. Always

wear safety gloves.

• Do not install or use a damaged

appliance.

• Obey the installation instruction

supplied with the appliance.

• Do not install or use the appliance

where the temperature is less than 0

°C or where it is exposed to the

weather.

• Make sure that the floor where you

install the appliance is flat, stable, heat

resistant and clean.

• Do not install the appliance where the

appliance door can not be fully

opened.

• Make sure that there is air circulation

between the appliance and the floor.

• Adjust the feet to have the necessary

space between the appliance and the

carpet.

• Do not install the appliance where the

appliance door can not be fully

opened.

2.2 Electrical Connection

• The appliance must be earthed.

• Always use a correctly installed

shockproof socket.

• Make sure that the electrical

information on the rating plate agrees

with the power supply. If not, contact

an electrician.

• Do not use multi-plug adapters and

extension cables.

• Make sure not to cause damage to the

mains plug and to the mains cable.

Should the mains cable need to be

replaced, this must be carried out by

our Authorised Service Centre.

• Connect the mains plug to the mains

socket only at the end of the

installation. Make sure that there is

access to the mains plug after the

installation.

• Do not touch the mains cable or the

mains plug with wet hands.

• Do not pull the mains cable to

disconnect the appliance. Always pull

the mains plug.

• Only for UK and Ireland: The appliance

has a 13 amp mains plug. If it is

necessary to change the fuse in the

mains plug, use a 13 amp ASTA (BS

1362) fuse.

• This appliance complies with the E.E.C.

Directives.

2.3 Water connection

• Make sure not to cause damage to the

water hoses.

• Before you connect the appliance to

new pipes or pipes not used for a long

time, let the water flow until it is clean.

• The first time you use the appliance,

make sure that there is no leakage.

www.electrolux.com

4

4 use, 5 disposal, Product description

1 appliance overview, 2 how to activate the child safety device, 3 fixing plate kit (4055171146) Чат поддержки

• Изображение
• Текст

2.4 Use

WARNING!

Risk of injury, electrical

shock, fire, burns or damage

to the appliance.

• Use this appliance in a household only.

• Obey the safety instructions on the

detergent packaging.

• Do not put flammable products or

items that are wet with flammable

products in, near or on the appliance.

• Make sure that you remove all metal

objects from the laundry.

• Do not put a container to collect

possible water leakage under the

appliance. Contact the Authorised

Service Centre to ensure which

accessories can be used.

• Do not touch the glass of the door

while a programme operates. The

glass can be hot.

2.5 Disposal

WARNING!

Risk of injury or suffocation.

• Disconnect the appliance from the

mains supply.

• Cut off the mains cable and discard it.

• Remove the door catch to prevent

children and pets to get closed in the

appliance.

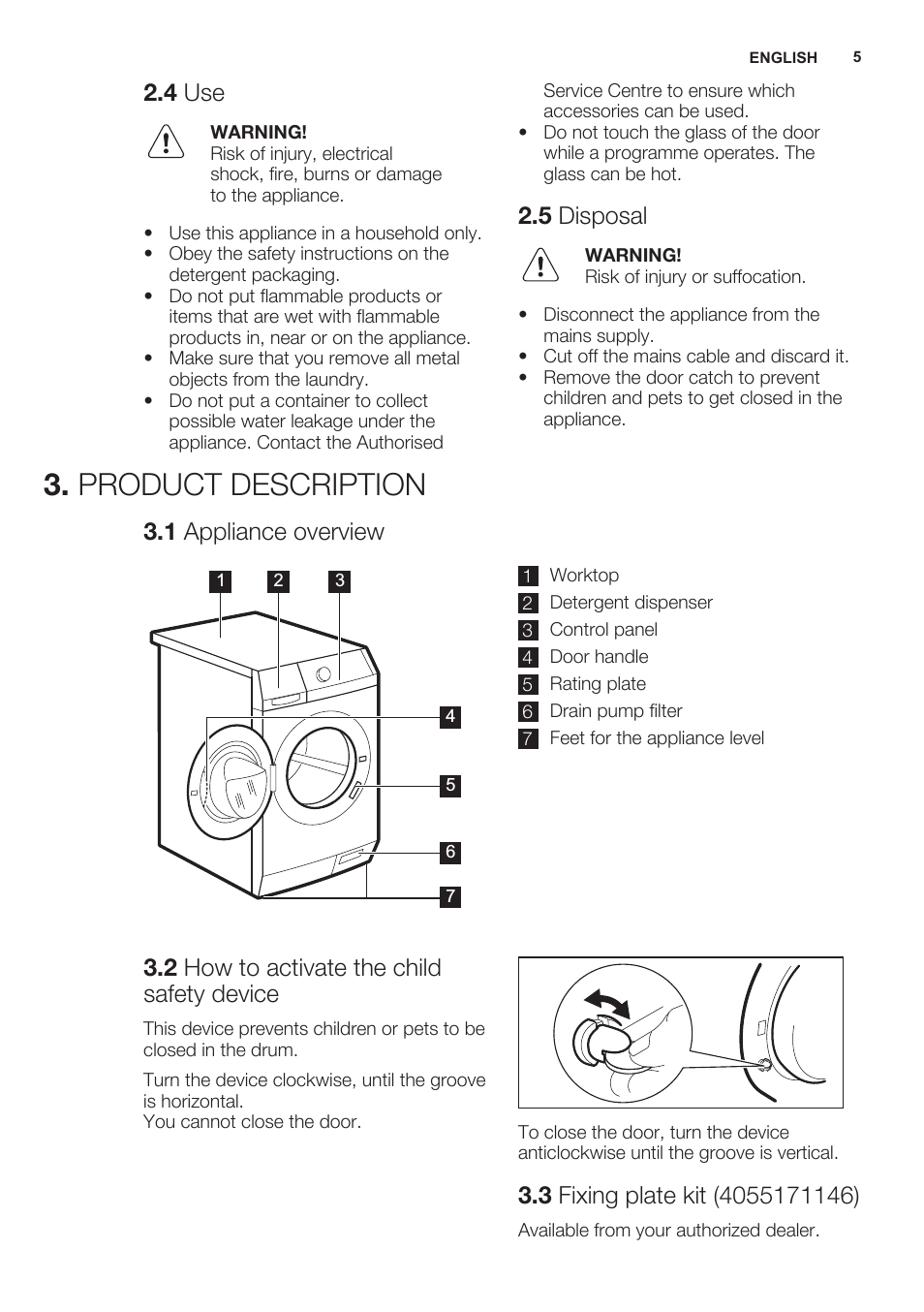

3. PRODUCT DESCRIPTION

3.1 Appliance overview

1

2

3

5

6

7

4

1

Worktop

2

Detergent dispenser

3

Control panel

4

Door handle

5

Rating plate

6

Drain pump filter

7

Feet for the appliance level

3.2 How to activate the child

safety device

This device prevents children or pets to be

closed in the drum.
Turn the device clockwise, until the groove

is horizontal.

You cannot close the door.

To close the door, turn the device

anticlockwise until the groove is vertical.

3.3 Fixing plate kit (4055171146)

Available from your authorized dealer.

ENGLISH

5

If you install the appliance on a plinth,

secure the appliance in the fixing plates.

Read carefully the instructions supplied

with the kit.

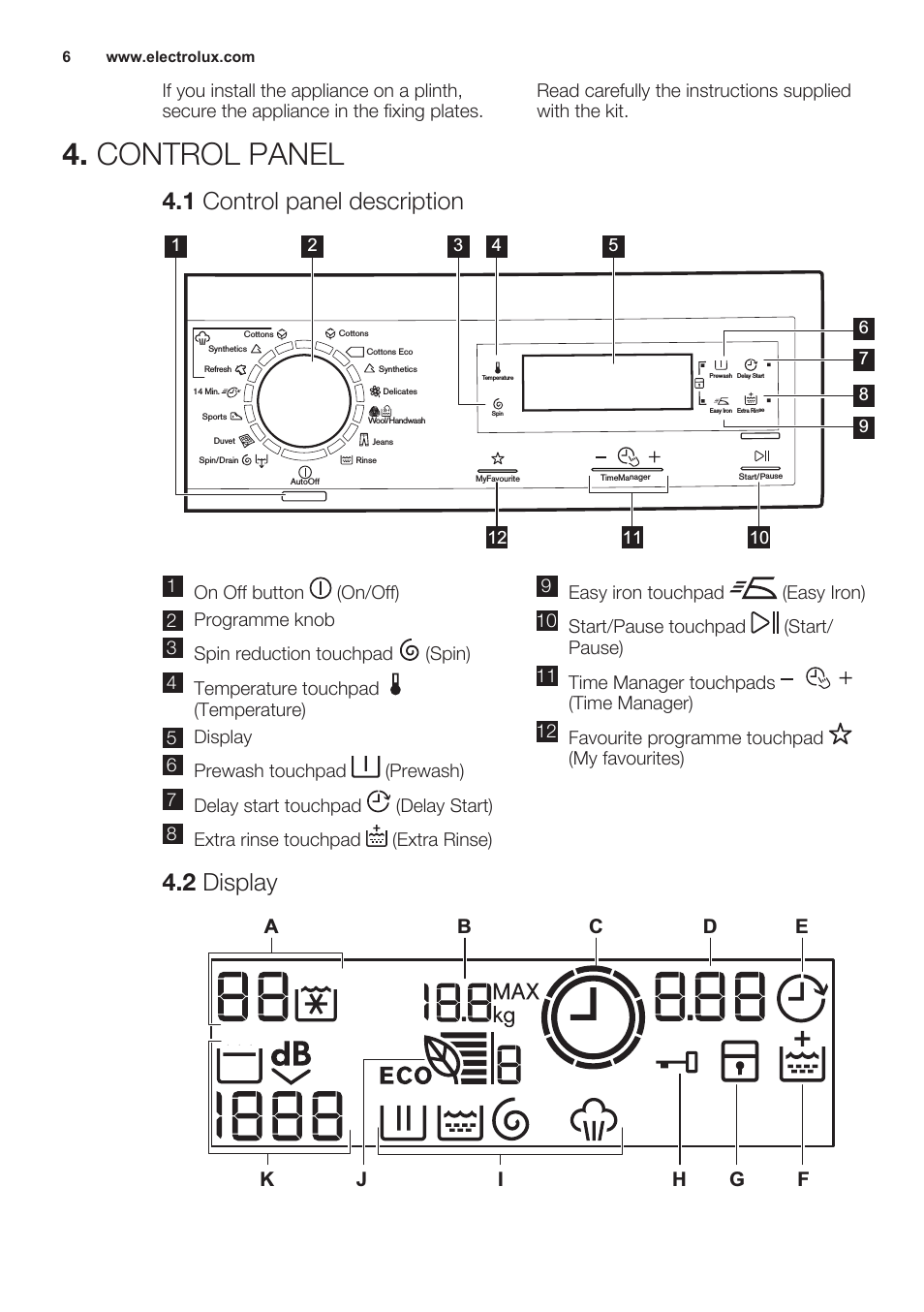

4. CONTROL PANEL

4.1 Control panel description

Jeans

Delicates

Synthetics

Cottons

Rinse

Duvet

Spin/Drain

Sports

14 Min.

AutoOff

Refresh

Synthetics

Cottons

Wool/Handwash

TimeManager

MyFavourite

Start/Pause

Extra Rinse

Delay Start

Easy Iron

Prewash

Temperature

Spin

Cottons Eco

5

3

4

10

12

11

8

7

9

6

1

2

1

On Off button (On/Off)

2

Programme knob

3

Spin reduction touchpad (Spin)

4

Temperature touchpad

(Temperature)

5

Display

6

Prewash touchpad

(Prewash)

7

Delay start touchpad

(Delay Start)

8

Extra rinse touchpad (Extra Rinse)

9

Easy iron touchpad

(Easy Iron)

10

Start/Pause touchpad

(Start/

Pause)

11

Time Manager touchpads

(Time Manager)

12

Favourite programme touchpad

(My favourites)

4.2 Display

A

B

C

D

E

F

G

H

J

I

K

www.electrolux.com

6

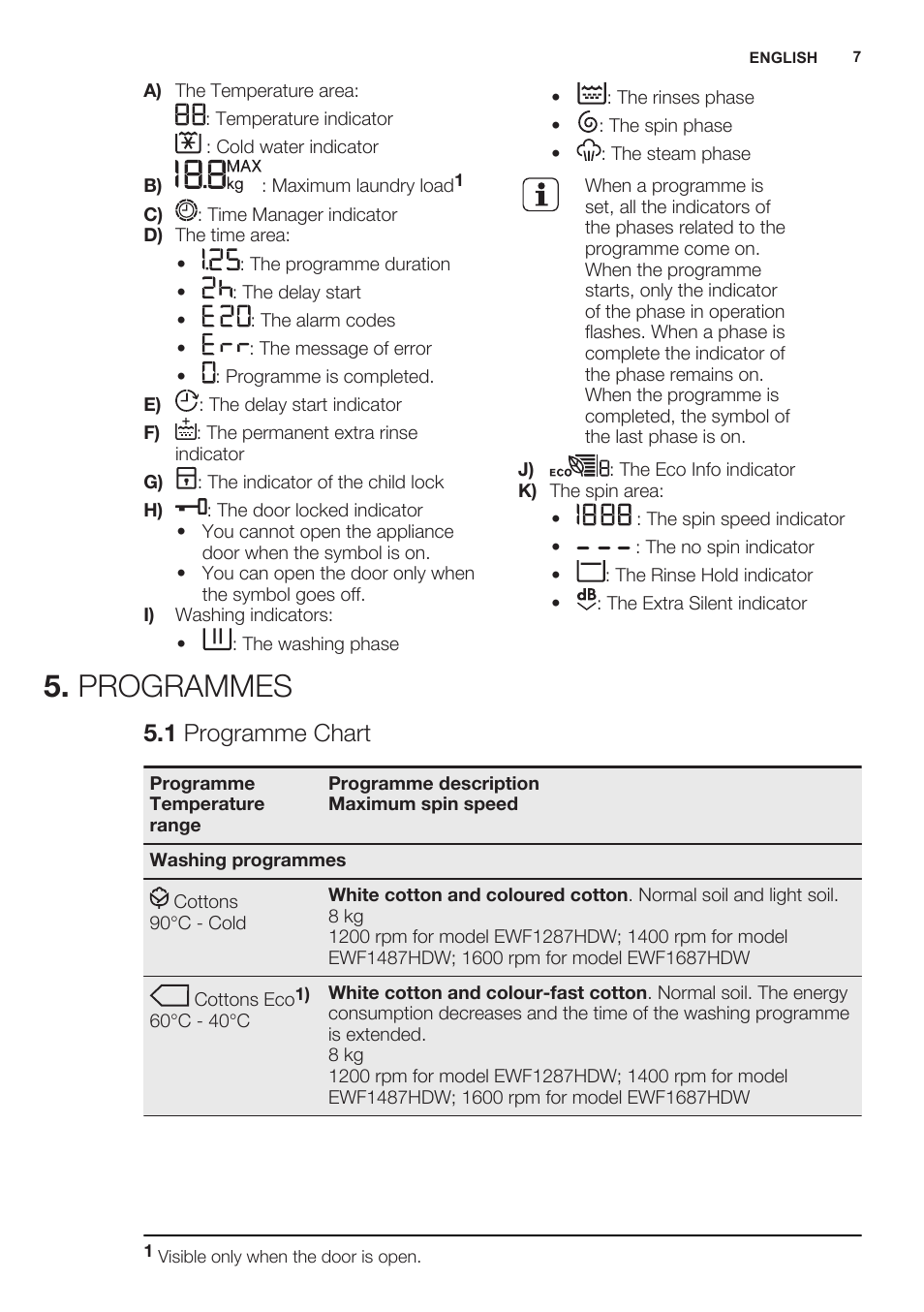

A) The Temperature area:

: Temperature indicator

: Cold water indicator

B)

: Maximum laundry load

1

C)

: Time Manager indicator

D) The time area:

•

: The programme duration

•

: The delay start

•

: The alarm codes

•

: The message of error

•

: Programme is completed.

E)

: The delay start indicator

F)

: The permanent extra rinse

indicator

G)

: The indicator of the child lock

H)

: The door locked indicator

• You cannot open the appliance

door when the symbol is on.

• You can open the door only when

the symbol goes off.

I) Washing indicators:

•

: The washing phase

•

: The rinses phase

•

: The spin phase

•

: The steam phase

When a programme is

set, all the indicators of

the phases related to the

programme come on.

When the programme

starts, only the indicator

of the phase in operation

flashes. When a phase is

complete the indicator of

the phase remains on.

When the programme is

completed, the symbol of

the last phase is on.

J)

: The Eco Info indicator

K) The spin area:

•

: The spin speed indicator

•

: The no spin indicator

•

: The Rinse Hold indicator

•

: The Extra Silent indicator

5. PROGRAMMES

5.1 Programme Chart

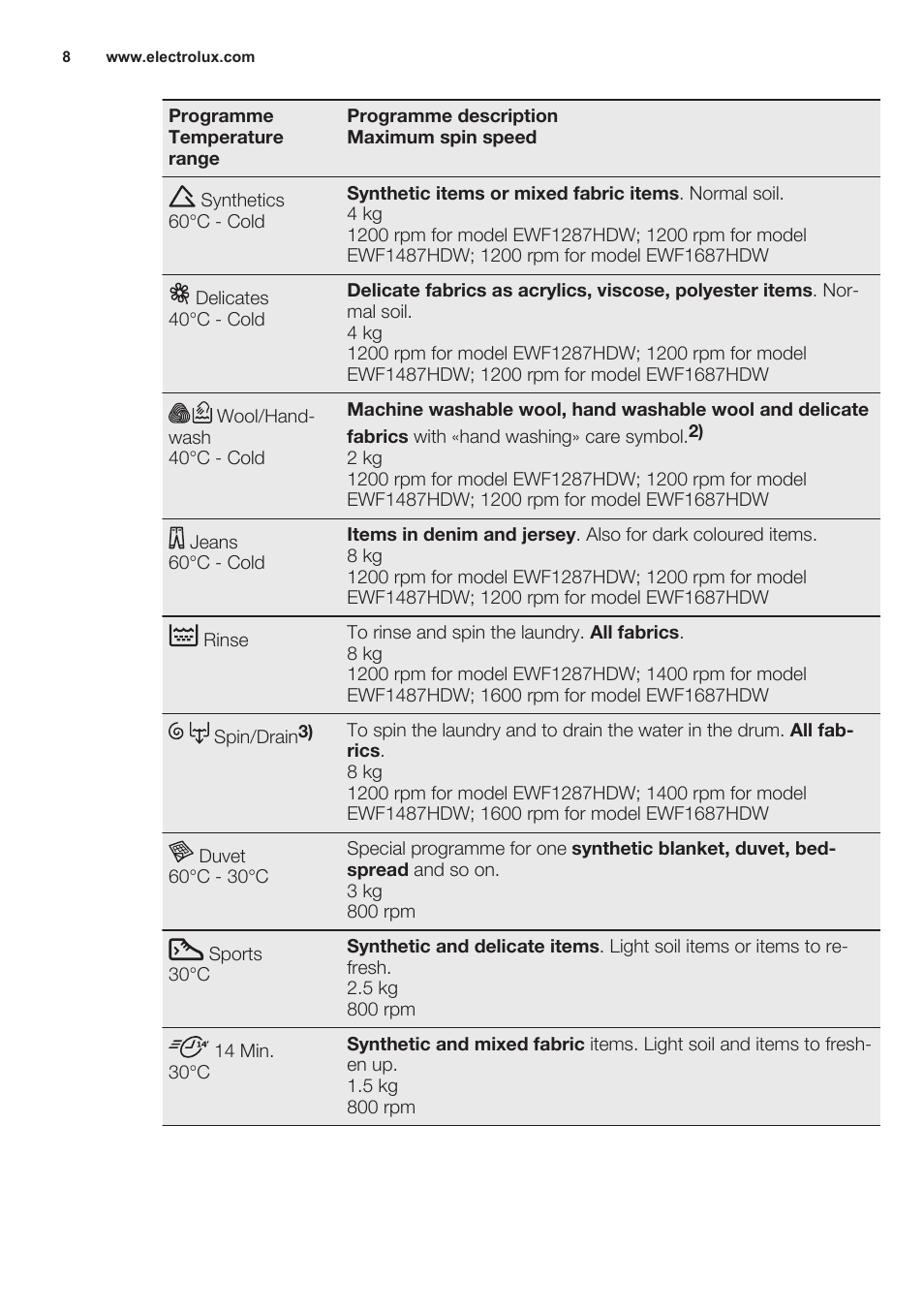

Programme

Temperature

range

Programme description

Maximum spin speed

Washing programmes

Cottons

90°C — Cold

White cotton and coloured cotton. Normal soil and light soil.

8 kg

1200 rpm for model EWF1287HDW; 1400 rpm for model

EWF1487HDW; 1600 rpm for model EWF1687HDW

Cottons Eco

1)

60°C — 40°C

White cotton and colour-fast cotton. Normal soil. The energy

consumption decreases and the time of the washing programme

is extended.

8 kg

1200 rpm for model EWF1287HDW; 1400 rpm for model

EWF1487HDW; 1600 rpm for model EWF1687HDW

1 Visible only when the door is open.

ENGLISH

7

Programme

Temperature

range

Programme description

Maximum spin speed

Synthetics

60°C — Cold

Synthetic items or mixed fabric items. Normal soil.

4 kg

1200 rpm for model EWF1287HDW; 1200 rpm for model

EWF1487HDW; 1200 rpm for model EWF1687HDW

Delicates

40°C — Cold

Delicate fabrics as acrylics, viscose, polyester items. Nor-

mal soil.

4 kg

1200 rpm for model EWF1287HDW; 1200 rpm for model

EWF1487HDW; 1200 rpm for model EWF1687HDW

Wool/Hand-

wash

40°C — Cold

Machine washable wool, hand washable wool and delicate
fabrics with «hand washing» care symbol.

2)

2 kg

1200 rpm for model EWF1287HDW; 1200 rpm for model

EWF1487HDW; 1200 rpm for model EWF1687HDW

Jeans

60°C — Cold

Items in denim and jersey. Also for dark coloured items.

8 kg

1200 rpm for model EWF1287HDW; 1200 rpm for model

EWF1487HDW; 1200 rpm for model EWF1687HDW

Rinse

To rinse and spin the laundry.

All fabrics.

8 kg

1200 rpm for model EWF1287HDW; 1400 rpm for model

EWF1487HDW; 1600 rpm for model EWF1687HDW

Spin/Drain

3)

To spin the laundry and to drain the water in the drum.

All fab-

rics.

8 kg

1200 rpm for model EWF1287HDW; 1400 rpm for model

EWF1487HDW; 1600 rpm for model EWF1687HDW

Duvet

60°C — 30°C

Special programme for one

synthetic blanket, duvet, bed-

spread and so on.

3 kg

800 rpm

Sports

30°C

Synthetic and delicate items. Light soil items or items to re-

fresh.

2.5 kg

800 rpm

14 Min.

30°C

Synthetic and mixed fabric items. Light soil and items to fresh-

en up.

1.5 kg

800 rpm

www.electrolux.com

8

Programme

Temperature

range

Programme description

Maximum spin speed

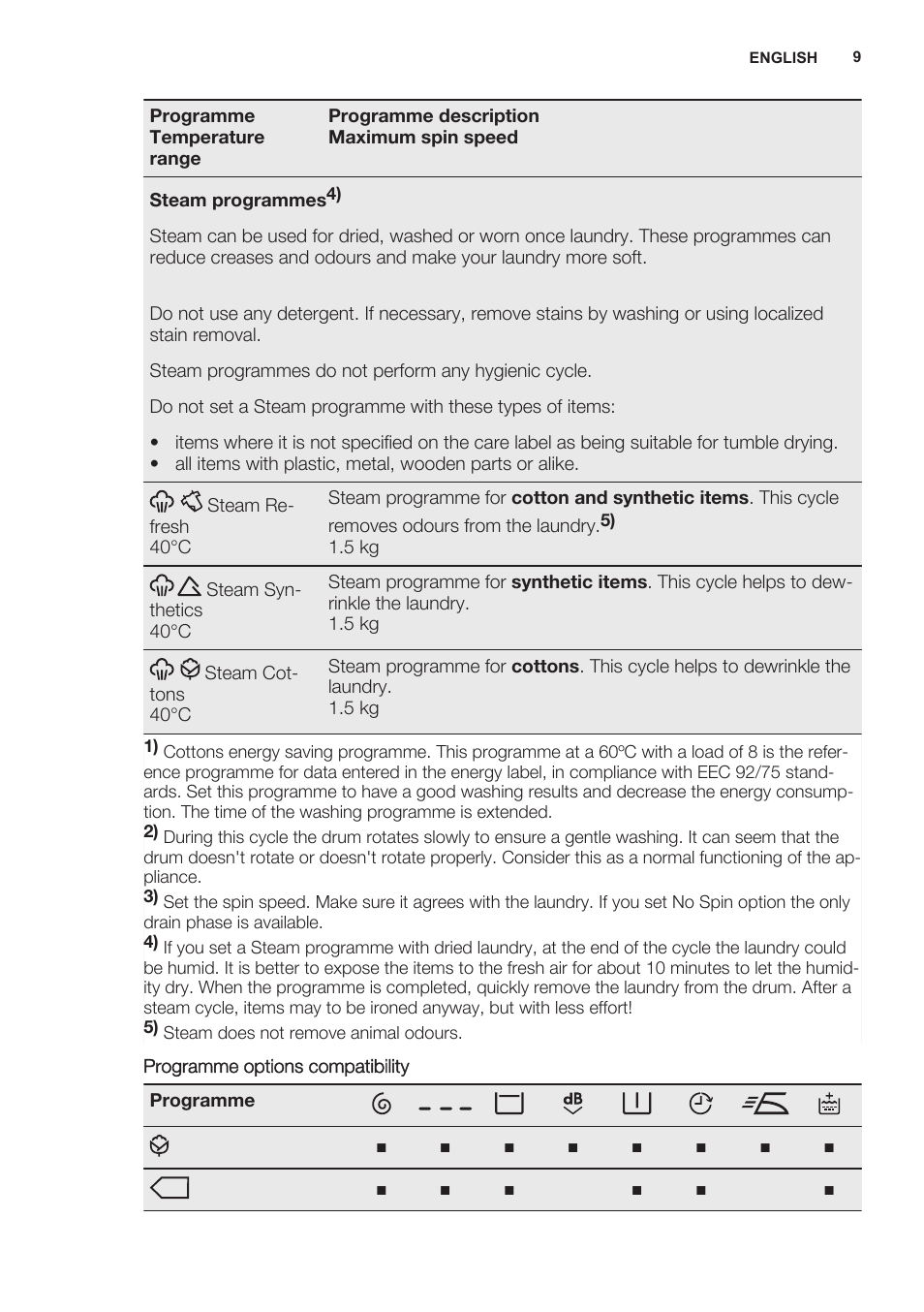

Steam programmes

4)

Steam can be used for dried, washed or worn once laundry. These programmes can

reduce creases and odours and make your laundry more soft.

Do not use any detergent. If necessary, remove stains by washing or using localized

stain removal.

Steam programmes do not perform any hygienic cycle.

Do not set a Steam programme with these types of items:

• items where it is not specified on the care label as being suitable for tumble drying.

• all items with plastic, metal, wooden parts or alike.

Steam Re-

fresh

40°C

Steam programme for

cotton and synthetic items. This cycle

removes odours from the laundry.

5)

1.5 kg

Steam Syn-

thetics

40°C

Steam programme for

synthetic items. This cycle helps to dew-

rinkle the laundry.

1.5 kg

Steam Cot-

tons

40°C

Steam programme for

cottons. This cycle helps to dewrinkle the

laundry.

1.5 kg

1) Cottons energy saving programme. This programme at a 60ºC with a load of 8 is the refer-

ence programme for data entered in the energy label, in compliance with EEC 92/75 stand-

ards. Set this programme to have a good washing results and decrease the energy consump-

tion. The time of the washing programme is extended.

2) During this cycle the drum rotates slowly to ensure a gentle washing. It can seem that the

drum doesn’t rotate or doesn’t rotate properly. Consider this as a normal functioning of the ap-

pliance.

3) Set the spin speed. Make sure it agrees with the laundry. If you set No Spin option the only

drain phase is available.

4) If you set a Steam programme with dried laundry, at the end of the cycle the laundry could

be humid. It is better to expose the items to the fresh air for about 10 minutes to let the humid-

ity dry. When the programme is completed, quickly remove the laundry from the drum. After a

steam cycle, items may to be ironed anyway, but with less effort!

5) Steam does not remove animal odours.

Programme options compatibility

Programme

■

■

■

■

■

■

■

■

■

■

■

■

■

■

ENGLISH

9

Programme

■

■

■

■

■

■

■

■

■

■

■

■

■

■

■

■

■

■

■

■

■

■

■

■

■

■

■

■

■

■

■

1)

■

■

■

■

■

■

■

■

■

■

■

■

1) Set the spin speed. Make sure it agrees with the laundry. If you set No Spin option the only

drain phase is available.

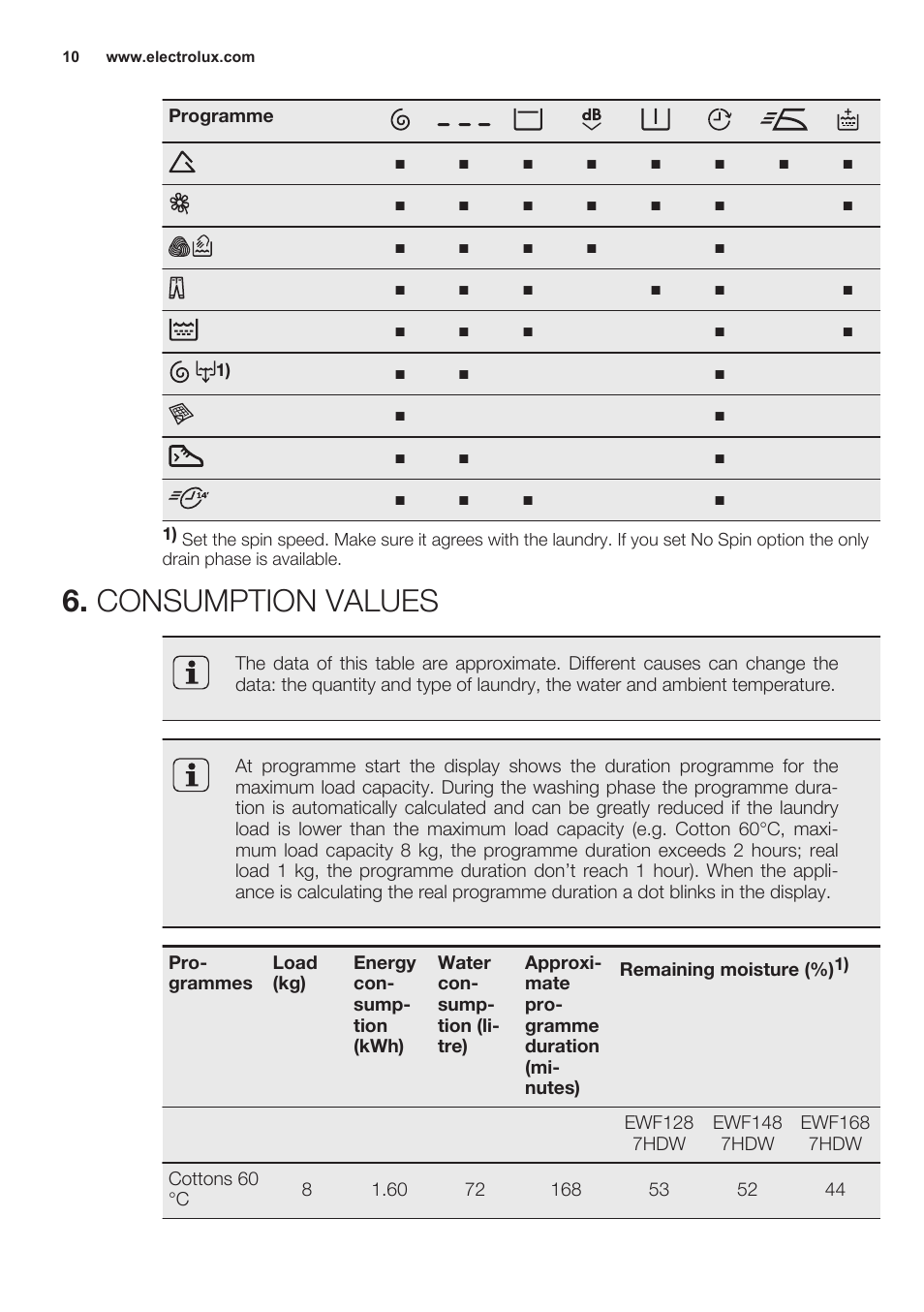

6. CONSUMPTION VALUES

The data of this table are approximate. Different causes can change the

data: the quantity and type of laundry, the water and ambient temperature.

At programme start the display shows the duration programme for the

maximum load capacity. During the washing phase the programme dura-

tion is automatically calculated and can be greatly reduced if the laundry

load is lower than the maximum load capacity (e.g. Cotton 60°C, maxi-

mum load capacity 8 kg, the programme duration exceeds 2 hours; real

load 1 kg, the programme duration don’t reach 1 hour). When the appli-

ance is calculating the real programme duration a dot blinks in the display.

Pro-

grammes

Load

(kg)

Energy

con-

sump-

tion

(kWh)

Water

con-

sump-

tion (li-

tre)

Approxi-

mate

pro-

gramme

duration

(mi-

nutes)

Remaining moisture (%)

1)

EWF128

7HDW

EWF148

7HDW

EWF168

7HDW

Cottons 60

°C

8

1.60

72

168

53

52

44

www.electrolux.com

10

Нажмите на кнопку для помощи

‌
‌
‌

‌
