PIONEER CORPORATION 1-1, Shin-ogura, Saiwai-ku, Kawasaki-shi, Kanagawa 212-0031, Japan

PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936

PIONEER CORPORATION 2012

CAUTION

Where in a manufacturer’s service documentation, for example in circuit diagrams or lists
of components, a symbol is used to indicate that a specific component shall be replaced only
by the component specified in that documentation for safety reasons, the following symbol shall
be used:

This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer.
Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair
complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty.
If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so
and refer the repair to a qualified service technician.

CAUTION:

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE
SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

— Safety Precautions for those who Service this Unit.
When checking or adjusting the emitting power of the laser diode exercise caution in order to get safe, reliable
results.

Caution:

1. During repair or tests, minimum distance of 13 cm from the focus lens must be kept.

2. During repair or tests, do not view laser beam for 10 seconds or longer.

WARNING

This product may contain a chemical known to the State of California to cause cancer, or birth defects or
other reproductive harm.
Health & Safety Code Section 25249.6 — Proposition 65

WARNING!

The AEL (accessible emission level )of the laser power output is less than CLASS 1
but the laser component is capable of emitting radiation exceeding the limit for
CLASS 1.
A specially instructed person should do servicing operation of the apparatus.

CAUTION

This product is a class 1 laser product classi­fied under the Safety of laser products, IEC
60825-1:2007, and contains a class 1M laser
module. To ensure continued safety, do not re­move any covers or attempt to gain access to
the inside of the product. Refer all servicing to
qualified personnel.

CAUTION—CLASS 1M INVISIBLE LASER
RADIATION WHEN OPEN, DO NOT VIEW
DIRECTLY WITH OPTICAL INSTRUMENTS.

Laser diode characteristics

Wave length : 785 nm to 814 nm
Maximum output : 1 190 µW(Emitting period : unlimited)

Additional Laser Caution

Transistors Q101 in PCB drive the laser diodes.
When Q101 is shorted between their terminals, the laser diodes will radiate beam.
If the top cover is removed with no disc loaded while such short-circuit is continued,
the naked eyes may be exposed to the laser beam.

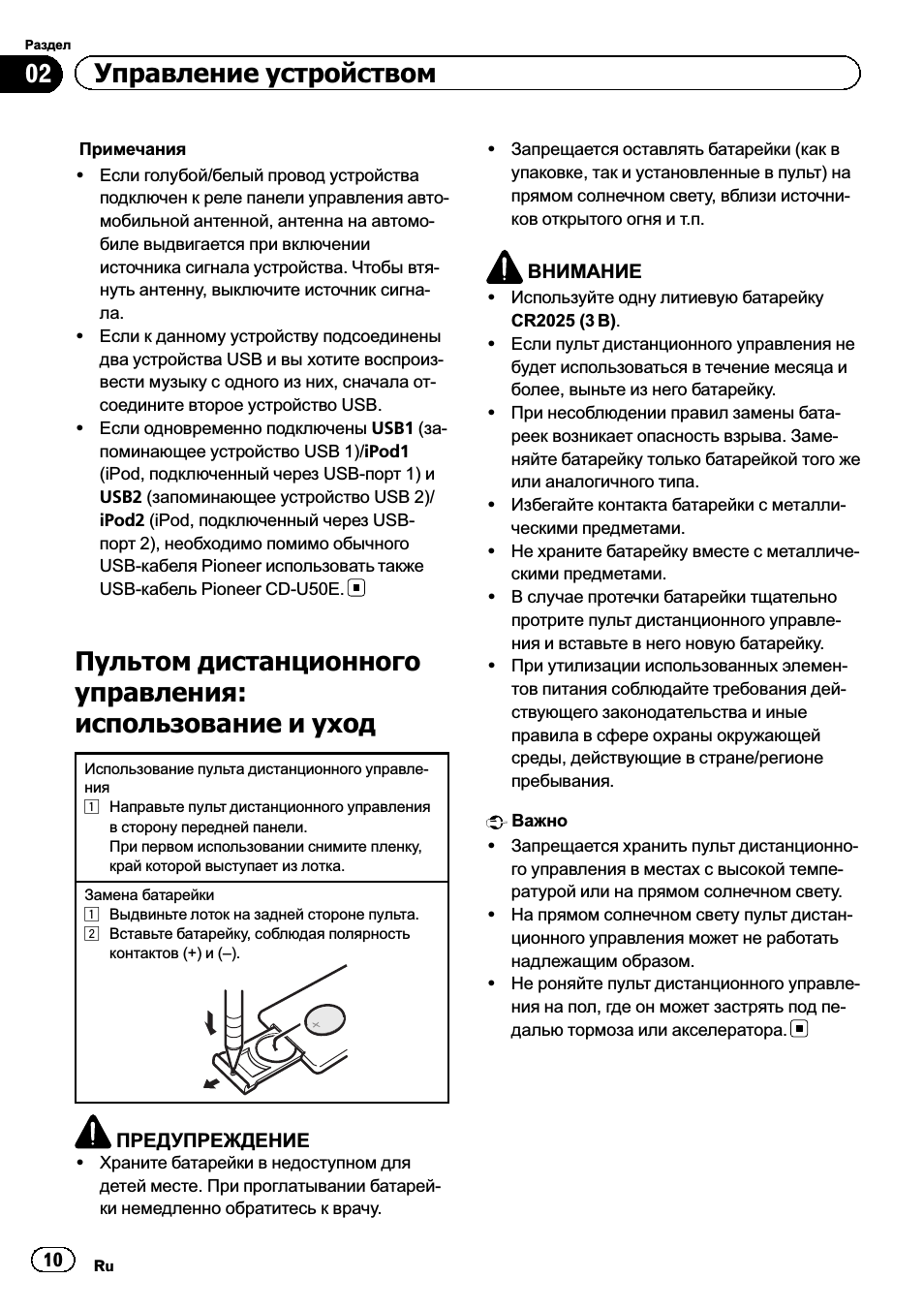

CAUTION

Danger of explosion if battery is incorrectly replaced.
Replaced only with the same or equivalent type recommended by the manufacturer.
Discord used batteries according to the manufacturer’s instructions.

1. You should conform to the regulations governing the product (safety, radio and noise, and other
regulations), and should keep the safety during servicing by following the safety instructions
described in this manual.

2. Before disassembling the unit, be sure to turn off the power. Unplugging and plugging the connectors
during power-on mode may damage the ICs inside the unit.

3. To protect the pickup unit from electrostatic discharge during servicing, take an appropriate treatment
(shorting-solder) by referring to «the DISASSEMBLY».

4. After replacing the pickup unit, be sure to check the grating.

5. Be careful in handling ICs. Some ICs such as MOS type are so fragile that they can be damaged by
electrostatic induction.

6. area and a heat sink becomes hot areas. Be careful not to burn yourself.

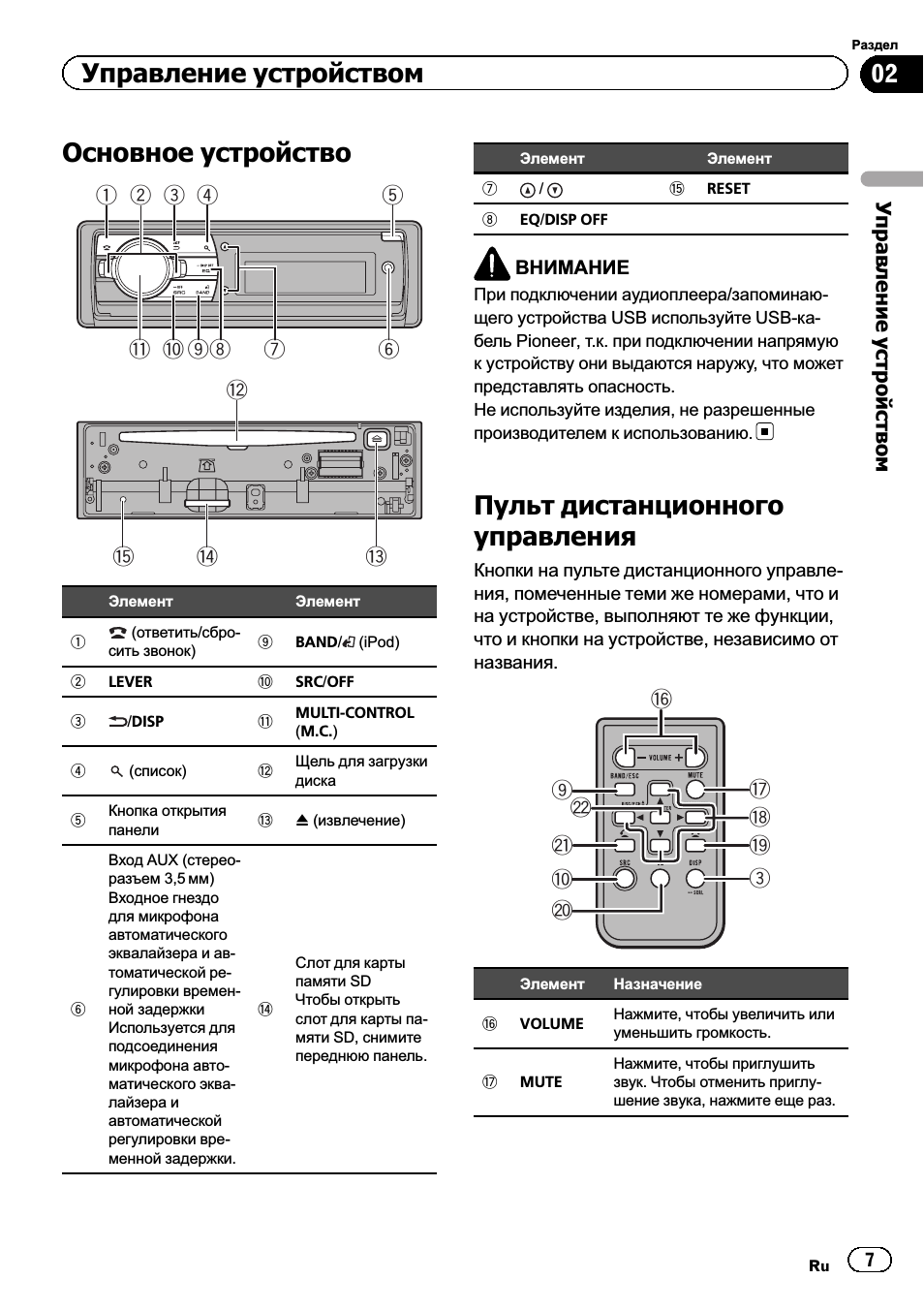

7. The RESET button is at the back of the Detach Grille.
Note that the audio settings cannot be deleted by a hard reset.
Reset the audio settings from the initial setting menu.

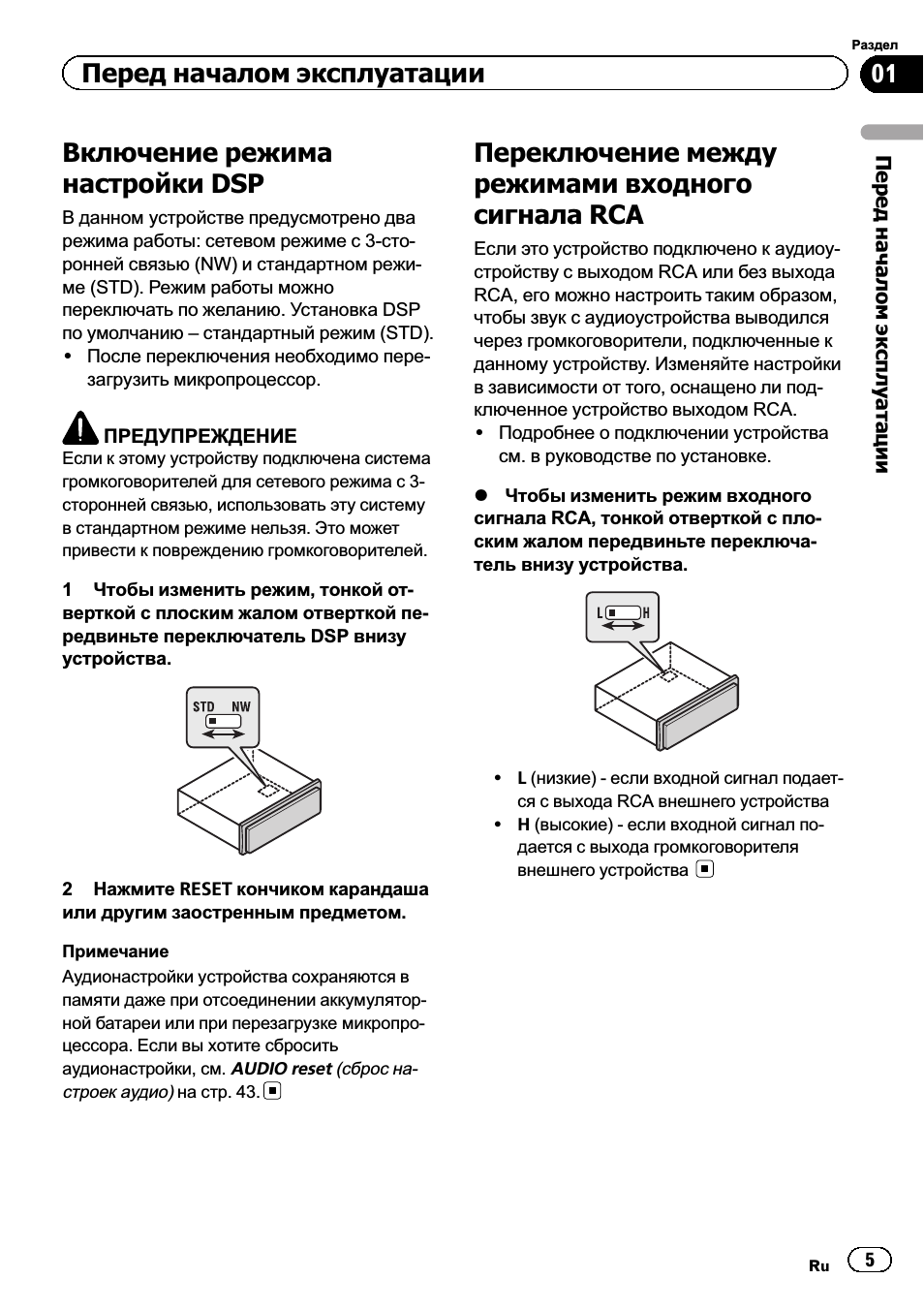

8. Be careful not to damage the Knob for the Slide Switches (S351, S601) at the bottom of the Tuner Amp Unit while
handling it or attaching the Bottom Plate.

9. The part listed below is difficult to replace as a discrete component part.

When the part listed in the table is defective, replace whole Assy.

10. RGB LED’s (D1831 — D1864) are used for the illumination of the Keyboard Unit. To avoid the color heterogeneity, replace
the whole of the Keyboard Unit, even if only one of RGB LED’s was defective.

TUNER AMP UNIT IC851 LT1912EMSE Heat pad

For environmental protection, lead-free solder is used on the printed circuit boards mounted in this unit.
Be sure to use lead-free solder and a soldering iron that can meet specifications for use with lead-free solders for repairs
accompanied by reworking of soldering.

Compared with conventional eutectic solders, lead-free solders have higher melting points, by approximately 40 C.
Therefore, for lead-free soldering, the tip temperature of a soldering iron must be set to around 373 C in general, although
the temperature depends on the heat capacity of the PC board on which reworking is required and the weight of the tip of
the soldering iron.

Compared with eutectic solders, lead-free solders have higher bond strengths but slower wetting times and higher melting
temperatures (hard to melt/easy to harden).

The following lead-free solders are available as service parts:
Parts numbers of lead-free solder:
GYP1006 1.0 in dia.
GYP1007 0.6 in dia.
GYP1008 0.3 in dia.

• DEH-80PRS/XNUC

General

Power source………………………. 14. 4 V DC (10.8 V to 15.1 V

allowable)

Grounding system……………… Negative type

Maximum current consumption

…………………………………………… 10. 0 A

Dimensions (W × H × D):

DIN

Chassis……………….. 178 mm × 50 m m ×

165 mm

(7 in. × 2 in. × 6-1/2in.)

Nose…………………….. 188 mm × 58 m m × 17 mm

(7-3/8 in.× 2-1/4 in.× 5/8 in.)

D

Chassis……………….. 178 mm × 50 m m ×

165 mm

(7 in.× 2 in.× 6-1/2 in.)

Nose…………………….. 170 mm × 46 m m × 17 mm

(6-3/4 in.× 1-3/4 in.× 5/8 in.)

Weight …………………………………. 1.2 kg (2.6 lbs)

Audio

Maximum power output ……. 50 W × 4

Continuous power output … 22 W × 4 (50 Hz to

15 000 Hz, 5% THD,

4 Ω load, both channels dri-

ven)

Load impedance ………………… 4 Ω to 8 Ω ×4

Preout maximum output level

………………………………………….. 5.0 V

Loudness contour ……………… +10 dB (1 00 Hz), +6.5 dB

(10 kHz) (volume:–30 dB)
Equalizer (Left/Right independent 16-Band Graphic
Equalizer):

Frequency……………………. 20 Hz/31.5 Hz/50 Hz/80 Hz/

125 Hz/200 Hz/315 Hz/

500 Hz/800 Hz/1.25 kHz/

2 kHz/3.15 kHz/5 kHz/8 kHz/

12.5 kHz/20 kHz

Equalization range…….. ±12 dB (2 dB step)

Auto equalizer:

(Front & rear & subwoofer/High & mid & low)

Frequency……………………. 20 Hz/31.5 Hz/50 Hz/80 Hz/

125 Hz/200 Hz/315 Hz/

500 Hz/800 Hz/1.25 kHz/

2 kHz/3.15 kHz/5 kHz/8 kHz/

12.5 kHz/20 kHz

Equalization range…….. +6 dB t o –1 2 dB (2 dB step)

Network (standard mode):

HPF (front)

Frequency…………… 50 Hz/63 Hz/80 Hz/100Hz/

125 Hz/160 Hz/200 Hz

Slope……………………. 0 ( Pass)/–6dB/oct./–12 dB/

oct.

Gain……………………… 0 dB t o –24 dB/Mute (1 dB

step)

HPF (rear)

Frequency…………… 50 Hz/63 Hz/80 Hz/100Hz/

125 Hz/160 Hz/200 Hz

Slope……………………. 0 ( Pass)/–6dB/oct./–12 dB/

oct.

Gain……………………… +6 dB to –24 dB/Mute (1

dB step)

Subwoofer (stereo/mono):

Frequency…………… 50 Hz/63 Hz/80 Hz/100Hz/

125 Hz/160 Hz/200 Hz

Slope……………………. –6 dB/oct./–12 dB/oct./–

18 dB/oct.

Gain……………………… +6 dB to –24 dB/Mute (1

dB step)

Phase ………………….. Normal/Reverse

Network (3-way network mode):

High HPF:

Frequency…………….1. 25 kHz/1.6 kHz/2 kHz/

2.5 kHz/3.15 kHz/4 kHz/
5 kHz/6.3 kHz/8 kHz/10 kHz/

12.5 kHz

Slope……………………. –6 dB/oct./–12 dB/oct./–

18 dB/oct./–24 dB/oct.

Gain……………………… 0 dB t o –24 dB/Mute (1 dB

step)

Phase ………………….. Normal/Reverse

Mid HPF/LPF:

F

requency (LPF)…1.25 kHz/1.6kHz/2 kHz/

2.5 kHz/3.15 kHz/4 kHz/
5 kHz/6.3 kHz/8 kHz/10 kHz/

12.5 kHz

Frequency (HPF)

…………………………. 25 Hz/31.5 Hz/40 Hz/50Hz/

63 Hz/80 Hz/100 Hz/125 Hz/
160 Hz/200 Hz/250 Hz

Slope (LPF)………… 0 (Pass)/–6 dB/oct./–12 dB/

oct./–18 dB/oct./–24 dB/oct.

Slope (HPF)……….. 0 ( Pass)/–6 dB/oct./–12dB/

oct./–18 dB/oct./–24 dB/oct.

Gain……………………… 0 dB t o –24 dB/Mute (1 dB

step)

Phase ………………….. Normal/Reverse

Low LPF (stereo/mono):

Frequency…………… 25 Hz/31.5 Hz/40 Hz/50Hz/

63 Hz/80 Hz/100 Hz/125 Hz/
160 Hz/200 Hz/250 Hz

Slope……………………. –12 dB/oct./–18 dB/oct./–

24 dB/oct./–30 dB/oct./–
36 dB/oct.

Backup current ………………. 5.0 mA or less

Gain……………………… +6 dB to –24 dB/Mute (1

dB step)

Phase ………………….. Normal/Reverse

CD player

System…………………………………. Compact disc audio system

Usable discs ………………………. Compact disc

Signal-to-noise ratio………….. 10 5 dB (1 kH z) (IHF- A net-

work)

Number of channels …………. 2 (stereo)

MP3 decoding format ………. MPEG-1 & 2 Audio Layer 3

WMA decoding format …….. Ver. 7, 7.1, 8, 9, 10, 11 , 12

(2 ch audio)

(Windows Media Player)

AAC decoding format……….. MPEG-4 AAC (iTunes en-

coded only) (.m4a)

(Ver. 10.4 and earlier)

WAV signal format…………….. Linear PCM & MS ADPCM

(Non-compressed)

USB

USB standard specification

…………………………………………… USB 2 .0 full spee d

Maximum current supply …. 1 A

USB Class…………………………… MSC (Mass Storage Class)

File system………………………….. FAT12, FAT16, FAT32

MP3 decoding format ………. MPEG-1 & 2 Audio Layer 3

WMA decoding format …….. Ver. 7, 7.1, 8, 9, 10, 11 , 12

(2 ch audio)
(Windows Media Player)

AAC decoding format……….. MPEG-4 AAC (iTunes en-

coded only) (.m4a)
(Ver. 10.4 and earlier)

WAV signal format…………….. Linear PCM & MS ADPCM

(Non-compressed)

SD

Compatible physical format

…………………………………………… Version 2.00

Maximum memory capacity

…………………………………………… 32 GB (fo r SD an d SDH C)

File system………………………….. FAT12, FAT16, FAT32

MP3 decoding format ………. MPEG-1 & 2 Audio Layer 3

WMA decoding format …….. Ver. 7, 7.1, 8, 9, 10, 11 , 12

(2 ch audio)
(Windows Media Player)

AAC decoding format……….. MPEG-4 AAC (iTunes en-

coded only) (.m4a)
(Ver. 10.4 and earlier)

WAV signal format…………….. Linear PCM & MS ADPCM

(Non-compressed)

FM tuner

Frequency range………………… 87.9 MHz to 107.9 MHz

Usable sensitivity……………….. 9 dBf (0.8 µV/75 Ω, mono,

S/N: 30 dB)

Signal-to-noise ratio………….. 72 dB (IHF-A network)

AM tuner

Frequency range………………… 530 kH z to 1 7 10 kHz

Usable sensitivity……………….. 25 µV (S/N: 20 dB)

Signal-to-noise ratio………….. 62 dB (IHF-A network)

Bluetooth

Version…………………………………. Bluetooth 3.0 certified

Output power ……………………… +4 d Bm Maximum

(Power class 2)

CEA2006 Specifications

Powe r out put ………………………. 14 W RMS × 4 Ch annels

(4 Ω and

1 % THD+N)

S/N ratio ………………………………. 91 dBA (reference: 1 W into

4 Ω)

Note

Specifications and the design are subject to mod­ifications without notice.

General

Power source………………………. 14. 4 V DC (10.8 V to 15.1 V

allowable)

Grounding system……………… Negative type

Maximum current consumption

…………………………………………… 10. 0 A

Dimensions (W × H × D):

DIN

Chassis……………….. 178 mm × 50 m m ×

165 mm

Nose…………………….. 188 mm × 58 m m × 17 mm

D

Chassis……………….. 178 mm × 50 m m ×

165 mm

Nose…………………….. 170 mm × 46 m m × 17 mm

Weight …………………………………..1.2 k g

Audio

Maximum power output ……. 50 W × 4

Continuous power output … 22 W × 4 (50 Hz to

15 000 Hz, 5% THD,

4 Ω load, both channels dri-

ven)

Load impedance ………………… 4 Ω to 8 Ω×4

Preout maximum output level

…………………………………………… 5.0 V

Loudness contour ……………… +10 dB (1 00 Hz), +6.5 dB

(10 kHz) (volume:–30 dB)
Equalizer (Left/Right independent 16-Band Graphic
Equalizer):

Frequency……………………. 20 Hz/31.5 Hz/50 Hz/80 Hz/

125 Hz/200 Hz/315 Hz/

500 Hz/800 Hz/1.25 kHz/

2 kHz/3.15 kHz/5 kHz/8 kHz/

12.5 kHz/20 kHz

Equalization range……. ±12 dB (2 dB step)

Auto equalizer:

(Front & rear & subwoofer/High & mid & low)

Frequency……………………. 20 Hz/31.5 Hz/50 Hz/80 Hz/

125 Hz/200 Hz/315 Hz/

500 Hz/800 Hz/1.25 kHz/

2 kHz/3.15 kHz/5 kHz/8 kHz/

12.5 kHz/20 kHz

Equalization range……. +6 d B to – 12 dB ( 2 d B step)

Network (standard mode):

HPF (front)

Frequency…………… 50 Hz/63 Hz/80 Hz/100Hz/

125 Hz/160 Hz/200 Hz

Slope……………………. 0 ( Pass)/–6dB/oct./–12 dB/

oct.

Gain……………………… 0 dB t o –24 dB/Mute (1 dB

step)

HPF (rear)

Frequency…………… 50 Hz/63 Hz/80 Hz/100Hz/

125 Hz/160 Hz/200 Hz

Slope……………………. 0 ( Pass)/–6dB/oct./–12 dB/

oct.

Gain……………………… +6 dB to –2 4 dB/Mute (1

dB step)

Subwoofer (stereo/mono):

Frequency…………… 50 Hz/63 Hz/80 Hz/100Hz/

125 Hz/160 Hz/200 Hz

Slope……………………. –6 dB/oct./–12 dB/oct./–

18 dB/oct.

Gain……………………… +6 dB to –2 4 dB/Mute (1

dB step)

Phase ………………….. Normal/Reverse

Network (3-way network mode):

High HPF:

Frequency…………….1. 25 kHz/1.6 kHz/2 kHz/

2.5 kHz/3.15 kHz/4 kHz/
5 kHz/6.3 kHz/8 kHz/10 kHz/

12.5 kHz

Slope……………………. –6 dB/oct./–12 dB/oct./–

18 dB/oct./–24 dB/oct.

Gain……………………… 0 dB t o –24 dB/Mute (1 dB

step)

Phase ………………….. Normal/Reverse

Mid

HPF/LPF:

Frequency (LPF)…1.25 kHz/1.6 kHz/2 kHz/

2.5 kHz/3.15 kHz/4 kHz/
5 kHz/6.3 kHz/8 kHz/10 kHz/

12.5 kHz

Frequency (HPF)

………………………….. 25 Hz/31.5 Hz/40Hz/50 Hz/

63 Hz/80 Hz/100 Hz/125 Hz/
160 Hz/200 Hz/250 Hz

Slope (LPF)………… 0 (Pass)/–6 dB/oct./–12 dB/

oct./–18 dB/oct./–24 dB/oct.

Slope (HPF)……….. 0 ( Pass)/–6 dB/oct./–12dB/

oct./–18 dB/oct./–24 dB/oct.

Gain……………………… 0 dB t o –24 dB/Mute (1 dB

step)

Phase ………………….. Normal/Reverse

Low LPF (stereo/mono):

Frequency…………… 25 Hz/31.5 Hz/40 Hz/50Hz/

63 Hz/80 Hz/100 Hz/125 Hz/
160 Hz/200 Hz/250 Hz

Slope……………………. –12 dB/oct./–18 dB/oct./–

24 dB/oct./–30 dB/oct./–
36 dB/oct.

Gain……………………… +6 dB to –2 4 dB/Mute (1

dB step)

Phase ………………….. Normal/Reverse

• DEH-80PRS/XNEW5

Backup current ………………. 5.0 mA or less

CD player

System…………………………………. Compact disc audio system

Usable discs ………………………. Compact disc

Signal-to-noise ratio………….. 10 5 dB (1 kH z) (IEC-A net-

work)

Number of channels …………. 2 (stereo)

MP3 decoding format ………. MPEG-1 & 2 Audio Layer 3

WMA decoding format …….. Ver. 7, 7.1, 8, 9, 10, 11 , 12

(2 ch audio)

(Windows Media Player)

AAC decoding format……….. MPEG-4 AAC (iTunes en-

coded only) (.m4a)

(Ver. 10.4 and earlier)

WAV signal format…………….. Linear PCM & MS ADPCM

(Non-compressed)

USB

USB standard specification

…………………………………………… USB 2 .0 full speed

Maximum current supply …. 1 A

USB Class…………………………… MSC (Mass Storage Class)

File system………………………….. FAT12, FAT16, FAT32

MP3 decoding format ………. MPEG-1 & 2 Audio Layer 3

WMA decoding format …….. Ver. 7, 7.1, 8, 9, 10, 11 , 12

(2 ch audio)
(Windows Media Player)

AAC decoding format……….. MPEG-4 AAC (iTunes en-

coded only) (.m4a)
(Ver. 10.4 and earlier)

WAV signal format…………….. Linear PCM & MS ADPCM

(Non-compressed)

SD

Compatible physical format

…………………………………………… Version 2.00

Maximum memory capacity

…………………………………………… 32 GB (fo r SD an d SDH C)

File system…………………………… FAT12, FAT16, FAT32

MP3 decoding format ………. MPEG-1 & 2 Audio Layer 3

WMA decoding format …….. Ver. 7, 7.1, 8, 9, 10, 11 , 12

(2 ch audio)
(Windows Media Player)

AAC decoding format……….. MPEG-4 AAC (iTunes en-

coded only) (.m4a)
(Ver. 10.4 and earlier)

WAV signal format…………….. Linear PCM & MS ADPCM

(Non-compressed)

FM tuner

Frequency range………………… 87.5 MHz to 108.0 MHz

Usable sensitivity……………….. 9 dBf (0.8 µV/75 Ω, mono,

S/N: 30 dB)

Signal-to-noise ratio………….. 72 dB (IEC-A network)

MW tuner

Frequency range………………… 531 kHz to 1 602 kHz

Usable sensitivity……………….. 25 µV (S/N: 20 dB)

Signal-to-noise ratio………….. 62 dB (I EC-A network)

LW tuner

Frequency range………………… 153 kHz to 28 1 kHz

Usable sensitivity……………….. 28 µV (S/N: 20 dB)

Signal-to-noise ratio………….. 62 dB (I EC-A network)

Bluetooth

Version…………………………………. Bluetooth 3.0 certified

Output power ……………………… +4 d Bm Maximum

(Power class 2)

Note

Specifications and the design are subject to mod­ifications without notice.

• DEH-80PRS/XNES

General

Rated power source……………1 4.4 V DC

(allowable voltage range:

12.0 V to 14.4 V DC)

Grounding system……………… Negative type

Maximum current consumption

…………………………………………… 10. 0 A

Dimensions (W × H × D):

DIN

Chassis……………….. 178 mm × 50 m m ×

165 mm

Nose…………………….. 188 mm × 58 m m × 17 mm

D

Chassis……………….. 178 mm × 50 m m ×

165 mm

Nose…………………….. 170 mm × 46 m m × 17 mm

Weight …………………………………. 1.2 kg

Audio

Maximum power output ……. 50 W × 4

Continuous power output … 22 W × 4 (50 Hz to

15 000 Hz, 5% THD,
4 Ω load, both channels dri-

ven)

Load impedance ………………… 4 Ω to 8 Ω×4

Preout maximum output level

…………………………………………… 5.0 V

Loudness contour ……………… +10 dB (1 00 Hz), +6.5 dB

(10 kHz) (volume:–30 dB)
Equalizer (Left/Right independent 16-Band Graphic
Equalizer):

Frequency…………………… 20 Hz/31.5 Hz/50 Hz/80Hz/

125 Hz/200 Hz/315 Hz/

500 Hz/800 Hz/1.25 kHz/

2 kHz/3.15 kHz/5 kHz/8 kHz/

12.5 kHz/20 kHz

Equalization range…….. ±12 dB (2 dB step)

Auto equalizer:

(Front & rear & subwoofer/High & mid & low)

Frequency…………………… 20 Hz/31.5 Hz/50 Hz/80Hz/

125 Hz/200 Hz/315 Hz/

500 Hz/800 Hz/1.25 kHz/

2 kHz/3.15 kHz/5 kHz/8 kHz/

12.5 kHz/20 kHz

Equalization range…….. +6 dB t o –1 2 dB (2 dB step)

Network (standard mode):

HPF (front)

Frequency…………… 50 Hz/63 Hz/80 Hz/100Hz/

125 Hz/160 Hz/200 Hz

Slope…………………… 0 (Pass)/–6 dB/oct./–12 dB/

oct.

Gain……………………… 0 dB t o –24 dB/Mute (1 dB

step)

HPF (rear)

Frequency…………… 50 Hz/63 Hz/80 Hz/100Hz/

125 Hz/160 Hz/200 Hz

Slope……………………. 0 ( Pass)/–6dB/oct./–12 dB/

oct.

Gain……………………… +6 dB to –24 dB/Mute (1

dB step)

Subwoofer (stereo/mono):

Frequency…………… 50 Hz/63 Hz/80 Hz/100Hz/

125 Hz/160 Hz/200 Hz

Slope……………………. –6 dB/oct./–12 dB/oct./–

18 dB/oct.

Gain……………………… +6 dB to –24 dB/Mute (1

dB step)

Phase ………………….. Normal/Reverse

Network (3-way network mode):

High HPF:

Frequency…………… 1. 25 kHz/1.6 kHz/2 kHz/

2.5 kHz/3.15 kHz/4 kHz/
5 kHz/6.3 kHz/8 kHz/10 kHz/

12.5 kHz

Slope……………………. –6 dB/oct./–12 dB/oct./–

18 dB/oct./–24 dB/oct.

Gain…………………….. 0 dB t o –24 dB/Mute (1 dB

step)

Phase …………………..

Normal/Reverse

Mid

HPF/LPF:

Frequency (LPF)…1.25 kHz/1.6 kHz/2 kHz/

2.5 kHz/3.15 kHz/4 kHz/
5 kHz/6.3 kHz/8 kHz/10 kHz/

12.5 kHz

Frequency (HPF)

…………………………. 25 Hz/31.5 Hz/40 Hz/50Hz/

63 Hz/80 Hz/100 Hz/125 Hz/
160 Hz/200 Hz/250 Hz

Slope (LPF)………… 0 (Pass)/–6 dB/oct./–12 dB/

oct./–18 dB/oct./–24 dB/oct.

Slope (HPF)……….. 0 ( Pass)/–6 dB/oct./–12dB/

oct./–18 dB/oct./–24 dB/oct.

Gain…………………….. 0 dB t o –24 dB/Mute (1 dB

step)

Phase ………………….. Normal/Reverse

Low LPF (stereo/mono):

Frequency…………… 25 Hz/31.5 Hz/40 Hz/50Hz/

63 Hz/80 Hz/100 Hz/125 Hz/
160 Hz/200 Hz/250 Hz

Slope……………………. –12 dB/oct./–18 dB/oct./–

24 dB/oct./–30 dB/oct./–
36 dB/oct.

Gain……………………… +6 dB to –24 dB/Mute (1

dB step)

Phase ………………….. Normal/Reverse

Backup current ………………. 5.0 mA or less

CD player

System…………………………………. Compact disc audio system

Usable discs ………………………. Compact disc

Signal-to-noise ratio………….. 10 5 dB (1 kH z) (IEC-A net-

work)

Number of channels …………. 2 (stereo)

MP3 decoding format ………. MPEG-1 & 2 Audio Layer 3

WMA decoding format …….. Ver. 7, 7.1, 8, 9, 10, 11 , 12

(2 ch audio)

(Windows Media Player)

AAC decoding format……….. MPEG-4 AAC (iTunes en-

coded only) (.m4a)

(Ver. 10.4 and earlier)

WAV signal format…………….. Linear PCM & MS ADPCM

(Non-compressed)

USB

USB standard specification

…………………………………………… USB 2 .0 full speed

Maximum current supply ….1 A

USB Class…………………………… MSC (Mass Storage Class)

File system………………………….. FAT12, FAT16, FAT32

MP3 decoding format ………. MPEG-1 & 2 Audio Layer 3

WMA decoding format …….. Ver. 7, 7.1, 8, 9, 10, 11 , 12

(2 ch audio)
(Windows Media Player)

AAC decoding format……….. MPEG-4 AAC (iTunes en-

coded only) (.m4a)
(Ver. 10.4 and earlier)

WAV signal format…………….. Linear PCM & MS ADPCM

(Non-compressed)

SD

Compatible physical format

…………………………………………… Version 2.00

Maximum memory capacity

…………………………………………… 32 GB (fo r SD an d SDH C)

File system………………………….. FAT12, FAT16, FAT32

MP3 decoding format ………. MPEG-1 & 2 Audio Layer 3

WMA decoding format …….. Ver. 7, 7.1, 8, 9, 10, 11 , 12

(2 ch audio)
(Windows Media Player)

AAC decoding format……….. MPEG-4 AAC (iTunes en-

coded only) (.m4a)
(Ver. 10.4 and earlier)

WAV signal format…………….. Linear PCM & MS ADPCM

(Non-compressed)

FM tuner

Frequency range………………… 87.5 MHz to 108.0 MHz

Usable sensitivity……………….. 9 dBf (0.8 µV/75 Ω, mono,

S/N: 30 dB)

Signal-to-noise ratio………….. 72 dB (IEC-A network)

AM tuner

Frequency range………………… 531 kHz to 1 602 kHz (9 kHz)

530 kHz to 1 640 kHz

(10 kHz)

Usable sensitivity……………….. 25 µV (S/N: 20 dB)

Signal-to-noise ratio………….. 62 dB (I EC-A network)

Note

Specifications and the design are subject to mod­ifications without notice.

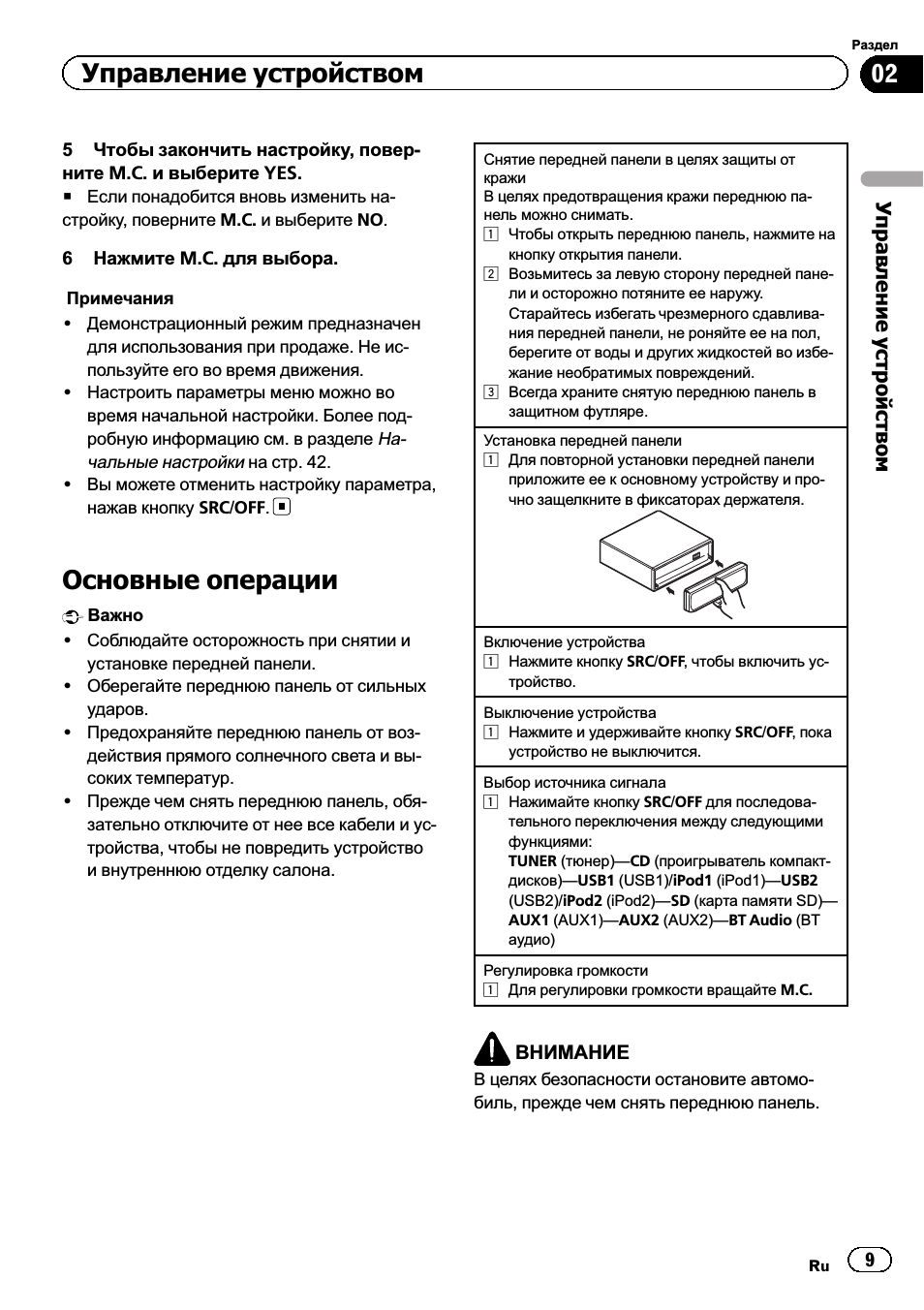

Fastening the front panel

If you do not plan to detach the front panel, the
front panel can be fastened with supplied
screws and holders.

1 Attach the holders to both sides of the
front panel.

1 Holder : CND1249, CND1250 (UC)

Holder : CXX1644, CXX1645 (EW5, ES)

2 Replace the front panel to the unit.

3 Flip the holders into upright positions.

4 Fix the front panel to the unit using fix­ing screws.

1 Screw : BPZ20P060FTC (UC)

Screw : XXX7020 (EW5, ES)

The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc.
and any use of such marks by Pioneer Corporation is under license.
Other trademarks and trade names are those of their respective owners.

demrifnocebotmetIserudecorP.oN

1 Confirm whether the customer complain has

been solved.
If the customer complain occurs with the
specific media, use it for the operation check.

The customer complain must not be
reappeared.
Display, audio and operations must be
normal.

2 CD Play back a CD.

(Track search)

No malfunction on display, audio and
operation.

3 FM/AM tuner Check FM/AM tuner action.

(Seek, Preset)
Switch band to check both FM and AM.

Display, audio and operations must be
normal.

4 Check whether no disc is inside the product. The media used for the operating check must

be ejected.

retfaecnaraeppastinotridrosehctarcsoNkcehcecnaraeppA5

receiving it for service.

Item to be checked regarding audio

A

B

D

Keyboard Unit

Panel Unit

Tuner Amp Unit

C

CD Core Unit
(S11.6STD)

Unit Number : CWN6303(UC)
Unit Number : CWN6302(EW5)
Unit Number : CWN6304(ES)
Unit Name : Tuner Amp Unit
Unit Number : (UC,ES)
Unit Number : (EW5)
Unit Name : Keyboard Unit
Unit Number : CWX4023
Unit Name : CD Core Unit (S11.6STD)
Unit Number : CWN6306
Unit Name : Panel Unit

— Jigs List

— Grease List

Name

16P FFC
Test Disc
L.P.F.
Acetate Tape

Jig No.

GGD1310
TCD-782

GYH1026

Remarks

Tuner Amp Unit — CD Core Unit
Checking the grating
Checking the grating (Two pieces)
Capacitor Bond Lock

Name

Grease
Grease
Grease
Silicon Glue

Grease No.

GEM1024
GEM1043
GEM1013
GEM1017

Remarks

CD Mechanism Module
CD Mechanism Module
Panel Assy
Capacitor Bond Lock

Before shipping out the product, be sure to clean the
following portions by using the prescribed cleaning
tools:

Portions to be cleaned Cleaning tools
CD pickup lenses Cleaning liquid : GEM1004

Cleaning paper : GED-008

TO2/2

E

TO2/2

D

DSPDRDY

DSPIN

DSPRQ

DSPCLR

DSPIRST

CKRST

DSPRST

MCKCTL

AMPPW

ASLIN

2

3

1

WIRED REMOTEBT MIC

KEYAD

KEYD

GND

5

4

JA521

6

BTMICM

BTMICP

BT33V

BT18V

BT18ON

BTTOSYS

SYSTOBT

202122

7

11

645

8

12

BTSCK

BTLRCK

131516

BT MODULE

CN521

BTRST

MEDRST

MEDSTBY

BTRX

BTPW

CPPWR

BTTX

BTRST

JA401

TUNER AMP UNIT(1/2)

2,3

1

MODESW

2

3

1

KEYAD

KEYD

GND

JA522

21OEMINRP

OEMINLM

JA351

43OEMINLP

OEMINRM

KEYAD

KEYD

92

32

100

93

22

1

20

21

VDD5V

VDD33V

VDD5V

A

FM/AM ANTENNA

SYSTEM MICRO

COMPUTER

IC601

(1/2)

ISENS

EVOLCS

50

FCKSEL

51

DSPCK

26

DSPOUT

28

AEQAUXSW

45

MUTE

48

38

8

Q481

VOUT

5

BT3.3V REG.

IC922

S-1170B33UC-OTS

4

1 68

VIN

ON/OFF

6

VINVOUT

ON/OFF

1

BT1.8V REG.

IC921

S-1172B18-E6

3

CN461

MED33V

8

9

RESET

15

16

VDD

CD DATA (CDSRQ,CDSTBY,SKIP,SCL,SDA,
DATA,BCLK,LRCK,WAIT)

CD CORE UNIT(S11.6 STD)

M

LD

MD

SPINDLE

M

LOADING/CARRIAGE

LD-

MD

15

5

HOLOGRAM

RF AMP, CD DECODER, MP3&WMA DECODER

2

VD

VD

9

3

SPO+

2

SPO-

5

SLLDO+

4

SLLDO-

22

LDIN

21

MUTE

TD,FD

AC,BD,E,F

SD,MD

LD+

14

1

LD

2

PD

CONT

LOEJ

HOME

35

41

39

VDD

1

VDD

VDD

15

5

FOCUS ACT.

TRACKING ACT.

FOP

TOP

2

1

TOP

FOP

7

TKO-

10

FCO+

2

1

14

DSCSNS

38

29

RESET

8

RESET

88

VREF

REFO

93

REFOUT

3

3

FOM

FOM

8

TKO+

4

4

TOM

TOM

9

FCO-

23

CNT

CLCONT

40

54

PUEN

V+3A

VDD

UNIT

MOTOR

MOTOR

ACTUATOR/

MOTOR DRIVER

BD8223EFV

HOMEDSCSNS

PE5791A

DIGITAL SERVO/DATA • PROCESSOR

CPU, USB HOST CONTROLLER

CN701

Q101

CN101

Q102

IC301

S901

S903

IC201

C

V+3A

12

12

VCC

PD

REFO

LD+

SOP

SOM

LCOP
LCOM

PICKUP UNIT
(P10.6)(SERVICE)

GND

CD DATA (CDSRQ,CDSTBY,SKIP,
SCL,SDA,DATA,BCLK,LRCK,WAIT)

BUP

Q881

Q882

MECHA VD

VD

BTDATA

16

Q982(1/2)

BSENS

BUP

12

4

13

2

5

I2C_SCL

nRESET

MODE1

VCC

I2C_SDA

iPod CP

IC791

341S2162

MED33V

Q791

IN1+

IC351

NJM2794RB2

DSP MODE

RCA INPUT MODE

IN1-

1

OUT1

10

9

S351

2

1

BSENS

18

Q982(2/2)

ASENS

ACC

ASENS

MEDMUTE

MEDRX

MEDTX

43

41

34

33

42

AB

C

FM/AM TUNER IC

IC401

TDA7706

5

FMMIXIN1

16

PINDIN

18

LNAIN

TUNSDA

TUNSCL

33

34

57

75

76

I2CSDA

TUNRES

31 74

RSTN

I2CSCL

DACOUTL

RESET

12

FLASH ROM

IC771

PEH322A8

EEPROM

IC661

BR25L320F-W

WIRED

REMOTE REAR AUX INPUT

BTMICM

BTMICP

MIC

_

BIAS

AUTO

S601

3

2

1

NJM4558V

ASL

1

2

3

—

+

7

5

6

—

+

IC332(1/2)

NJM4558V

IC331(1/2)

NJM4558V

IC332(2/2)

NJM4558V

IC331(2/2)

1

2

3

—

+

7

5

6

—

+

MC331

Q371

83

55

53

27

54

98

84

77

DSPtoSYS

SYStoDSP

DSPCK

MCK

TO2/2

F

SD RAM

IC751

IS42S16400F-7TL

1

VDD1

3

14

27

43

49

VDDQ1

9

VDDQ2

VDD2

VDD3

VDDQ3

VDDQ4

MED33V

Q751

:PEG866A8
:PEG865A8

A
B

:PEG864A8

C

Q601

BTSCK

BTLRCK

BTDATA

BTTOSYS

SYSTOBT

BTRST

ISOLATOR

OUT

GND

ACC

BATTERY INDICATOR

D982

MODELAD

95

F_AUXL

VDCONT

DDPWR

E

16

25

22

19

ANL

SWLch

RLch

FLch

9

10

20

27

28

29

43

DSPDRDY

14DSPCK

RLch

11SYStoDSP

8

5

3

1

2

5

3

1

2

5

3

1

2

DSPRQ

DSPtoSYS

DSPCLR

DSPIRST

CKRST

DSPRST

MCK

FLch

ANL

INT_RESET

CK_RESET

S_RESET

RESET

9

7

3

5

OUT1(-)

OUT1(+)

OUT2(-)

OUT2(+)

FL-

FL+

RL-

RL+

BREM

22

MUTE

13

18

17

15

ILL

7

5

1

3

CN991

IN1

11

IN2

12

STBY

4

14

11

4

2

Q304

AMP

IC271

PA2030A

JA251

Q256

45

Si4L

Si2L

11

Vi1(FL)

Vi3(RL)

Vi5(SWL)

So1L

46

44

43

CS

FCKSEL

SCK

SDA

BUP

BUP

ACC

B.REM

33

Vo5a

SWL

31

Vo3a

PRE_RL

29

Vo1a

PRE_FL

36

Vo1b

AMP_FL

38

Vo3b

AMP_RL

RCA OUTSOURCE

CONNECTOR

RL

6

FL

SWL

TUNL

6OEMINL

Si1L+

1F_AUXL

Q303

Q481

Q301

BUP

BUP

INPUT AUDIO

IC201

NJM4558V

7

6

5

+

—

BIAS BUFFER

IC241

NJM4558V

7

5

6

+

—

Q983

ISENS

MUTE

MUTE

MUTE

Q305

VDD5V

109

VDSENS

(EJSW)

BUP

A5V

1

3

2

+

—

A5V

85

BUP

CP_SCL

CP_SDA

CPRST

148

101

SO

RQ/CAD1

SDIN3/JX2

XTI

RDY

SCLK/SCL

DSP

IC101

AK7732VT

MEDIA uCOM

IC701

(1/2)

R5S7262ZD144FPU

SI/CAD0

37

SDOUT1

BCK

SCK

DATA

AUDIO DAC

IC131

PCM1793DB

LRCK

VoutL+

VoutL-

VoutL+

VoutL-

VoutL+

VoutL-

17

18

36

SDOUT2

BCK

SCK

DATA

IC132

PCM1793DB

LRCK

35

SDOUT3

BCK

SCK

OUTPUT

DATA

IC133

PCM1793DB

LRCK

AUDIO LPF

IC161

(1/2)

LT1358CS8

17

18

17

18

BSENS

ACC

ASENS

MEDIA_MUTE

SYS_TXD

BRST

SYS_RXD

59

58

63

61

SDIN5A/JX0

LRCLK_0

BITCLK_0

DACDATA

DACLRCK

DACSCK

137

138

139

22

39

38

AINL-

AINL+

63

64

43

112

CPRST

113

BT_SCKIN

111

BT_DATAIN

:DEH-80PRS/XNUC
:DEH-80PRS/XNEW5

A

B

:DEH-80PRS/XNES

C

A

B

TAGGING

IC781

A8V

Q373

RESET

12

FLASH ROM

IC771

PEH322A8

MX25L4006EM2I-12G

ELECTRONIC VOLUME/

AUTO EQ & AUX

SOURCE SELECTOR

IC211

PM9009A

Q371

DSPtoSYS

SYStoDSP

DSPCK

MCK

TO2/2

F

SD RAM

IC751

IS42S16400F-7TL

1

VDD1

3

14

27

43

49

VDDQ1

9

VDDQ2

VDD2

VDD3

VDDQ3

VDDQ4

TC7SZ04FU

IC481

X481

3

7

6

5

—

+

IC161

(2/2)

LT1358CS8

1

2

3

—

+

IC163

LT1358CS8

7

6

5

—

+

SWLch

BTSCK

BTLRCK

BTDATA

AUDIO LPF

AUDIO LPF

AUDIO DAC

AUDIO DAC

F_AUXL

4

2

Q254

Q255

VDCONT

10 A

FUSE

Q862

BUP

VDD5V

Q861

MED33V

Q901

Q902

Q501

VDD

CD1

SD DATA (SD_DATA0-SD_DATA3,SD_CLK,SD_CMD)

4

10

CN501

SD CARD

SD_CD

114

CN801

8

AUXL

5

CN311

USB

7

6

3

2

1

USBFLG

83

923

4

SYNC

USBOUT

VIN

FLT

USBCTL

12

5

63

USBSEL_OE

78

USBSEL

79

EN_USB

EN_SYS

IC942

OZ529IGN

MEDIA uCOM

IC701

R5S7262ZD144FPU

(2/2)

DP

DM

BUP

Q821

Q822

FLPILM

3

DPDT

20

KYDT

19

ILM+B

SW3V

13

ROT1

4

ROT0

11

RGBDT

18

RGBCK

16

RGBST

14

FLPILM

22

ILMGND

2

CSENS

9

EJECT

DGND

21

1

71

70

SYSTEM MICRO

COMPUTER

IC601

(2/2)

FLPILM

88

RGBDT

73

DPDT

29

ROT1

4

ROT0

5

KYDT

30

RGBCK

71

RGBST

72

EJECTIN

3

SDCTL

80

DSENS

17

CSENS

89

24

SYNC

87

DDPWR

19

VDCONT

44

59

USBFLG2

35

DALMON

USBCTL2

BUP

83

9

4

SYNC

USBOUT

VIN

FLT

12

5

EN_USB

EN_SYS

IC941

OZ529IGN

BUP

USB2

157

6

1

2A

4

1A

2B2

11

3
14
5
10
2
13

3B1

S

4B1
2B1

1B2

1B1
4B2

3B2

IC311

TC7MB3257FK

MULTI PLEXER

OE

S801

TUN5V

TUNER5V REG.

IC591

S-1155B50-U5

VDD5V

5

4

VINVOUT

ON/OFF

1

USB1

SD3.3V REG.

MED33V

115

SD_WP

USB5V1

USB5V2

USBDM2

USBDP2

USBDM1

USBDP1

1

MED3.3V REG.

IC912

S-1172B33-E6

6

VDD5V

MED33V

MED12V

MED1.2V REG.

IC911

S-1206B12-U3

2

VINVOUT

VINVOUT

3

3

ON/OFF

Q932

Q933

Q863

ILMPW

49

BUP

ILM+B

ILM+B

Q891

Q892

SWVDD

DSPPW

47

VDD33V

SW3V

SW3V REG.

Q854

4

6

5

3

1

Vin

SYNC

SW

2

8

BOOST

FB

BD

RUN/SS

VDD5V REG.

IC851

LT1912EMSE

BUP

B

:PEG866A8
:PEG865A8

A

:PEG864A8C

E

TO1/2

D

TO1/2

VDD5V

VDD33V

VOUT

5

VDD3.3V REG.

IC891

S-1200B33-M5

1

VIN

3

ON/OFF

SYSPW

52

A8V

36

AUDIO8V REG.

IC841

NJM2388F84

BUP

2

1

VIN

VOUT

CONTROL

4

A5V

DAC5V REG.

IC846

NJM78L05UA

3

INPUTOUTPUT

1

D3V

A3V

DSP3.3V REG.

IC831

NJM2885DL1-33

1

INOUT

3

B.REM OUT

1

B.REM

IC871

TPD1018F

5

VDD

6

IN

BUP

F

TO1/2

D

KY

ILM

DP

SW

CN

3

DG

4

19

AUX

RO

10

12

RO

15

20

RG

RG

RG

22

CS

EJE

ILM

FLA

21

14

2

5

7

9

1

TUNER AMP UNIT(2/2)

A

:DEH-80PRS/XNUC
:DEH-80PRS/XNEW5

A
B

:DEH-80PRS/XNES

C

F_AUXL

RESET

VDD33V

VDD

2

POWER ON RESET

IC651

S-80827CNMC-B8M

110

OUT

S651

2

PEE

BUZZER

BZ601

SWVDD

DSENS

VDCONT

DDPWR

RESET

D

:PEH368A8B

:PEH366A8AC

VDD

CD1

4

10

CN501

SD CARD

CN801

8

AUXL

5

CN311

USB

7

6

3

2

1

3

DPDT

20

KYDT

19

13

ROT1

4

ROT0

11

RGBDT

18

RGBCK

16

RGBST

14

FLPILM

22

ILMGND

2

CSENS

9

EJECT

DGND

21

1

USB5V1

USB5V2

USBDP2

USBDP1

LCD UNIT

JA1981

KEYBOARD UNIT

B

PANEL UNIT

D

AUXG

AUXL

1

3

2

KYDT

DPDT

CN1801

4

DGND

20

2

1

AUXL

7

8

11

AUXR

LCD DRIVER/

KEY CONTROLLER

IC1901

PEG870A8

ROM

IC1902

27

28

P27

P28

SWVDD

ILM+B

9

CN1951

RGBDT

RGBCK

RGBST

15

17

19

RGB DRIVER

IC1821

BH2228FV

11

12

CLK

10

CSB

DI

1

AO1

2

AO2

3

AO3

4

AO4

5

AO5

6

AO6

4

P4

IC1931

PNJ4833M

SENSOR

1

REMOTE CONTROL

ILM+B

Q1831

Q1832

Q1833

Q1861

Q1862

Q1863

BLUE

GREEN

RED

BLUE

GREEN

RED

Q1834

(2/2)

Q1834

(1/2)

Q1835

(2/2)

D1831,
D1834

ILM+B

Q1864

(2/2)

Q1864

(1/2)

Q1865

(2/2)

D1861,
D1862

ILM+B

ILM+B

Q1836

(1/2)

Q1836

(2/2)

Q1835

(1/2)

D1832,
D1833

ILM+B

Q1866

(1/2)

Q1866

(2/2)

Q1865

(1/2)

D1863,
D1864

KYDT

ILM+B

DPDT

SWVDD

CN2

3

DGND

20

4

19

AUXL

ROT1

10

12

ROT0

AUXL

ROT1

ROT0

15

20

RGBDT

RGBCK

RGBST

15

17

19

CN1

4

22

CSENS

3

CSENS

EJECT

KYDT

ILM+B

DPDT

SWVDD

DGND

ILMGND

18

ILMGND

FLAPILM

18

21

ILMGND

RGBDT

RGBCK

RGBST

CSENS

3

14

2

2

1

7

8

11

9

5

7

9

1

FRONT_AUX

ROT0

ROT1

2

1

5

4

3

ROTARY COMMANDER

S1811

2

1

4

3

S1

D1,D2

KEY MATRIX

18

P18

19

P19

20

P20

91

92

P92

NC

93

P93

95

KS2

KS1

KS0

KD3

KD2

KD1

KD0

P95

TH1901

90

P90

SWVDD

SWVDD

12

13

VDD

VDD2

SWVDD

EJECT

Vcc = 3.3 V

Pin 14, 60

BSENS

Pin 16

ASENS

Pin 18

DSENS

Pin 17

BSENS = L

Starts

communication

with Grille

microcomputer.

SWVDD <- H

Pin 47

Source keys

operative

Source ON

SYSPW <- H

Pin 36

Completes power-on operation.
(After that, proceed to each source operation)

500 ms

500 ms

In case of the above signal, the communication
with Grille microcomputer may fail.
If the time interval is not 500 msec, the oscillator
may be defective.

Power ON

ASENS = L

DSENS = L

CSENS

Pin 89

1.3 V < CSENS < 2 V

— 1.3 V < CSENS < 2 V

Last source returns.
CD loading functions are available.
Keys except for EJECT key are not available.

Error Code

The error status occurs when CD/USB/SD cannot operate, or stop during operation due to an error.
The reason for such error is displayed with a numeral.
This intends to reduce the number of nonsense calls from users and to assist in analysis/repair in services.

1. Basic display method
An error status (F0h) is entered in the Media status area of the source concerned, and the code in the minute/second area for notification.

E.g. For Read Error
Media status (disc) = 0xF0h
Minute (upper): FFh
Minute (lower): 07h
Second: 07h

— As for VD ERROR, the error status shall be 0xFB.

— Example of head unit display

The following occurs depending on the LCD display capability. The error No. comes in xx.
* For OEM, the error shall be displayed as per the specification of the OEM destination.

Display in 8 digits

Display in 6 digits

Display in 4 digits

ERROR-xx

ERR-xx

E-xx

2. List of error status codes

Code Source Error status Details and reasons

07h CD Read_Error

The CD mecha cannot read the Disc TOC
The TOC section of the PRD/Disc has been damaged

10h CD

Carriage Home NG

The CRG of the CD mecha cannot move to the inner perimeter
The CRG of the CD mecha cannot move from the inner perimeter
=> Failure in the HOME SWITCH of the CD mecha. Failure in CRG movement.
Failure in communication between the microcomputer and servo LSI.

11h CD Focus_Error

(Focus Error in mechanism set up)

The CD mecha cannot take focus.
Dirt on the back of the disc and CD-RW. Significant vibration.

12h CD

Spindle Rock,
ID/SubCode Read Error/RF AMP NG

No spindle lock occurs in the CD mecha.
No sub-code can be read.
No appropriate RF AMP gain is set up.
=> Failure in the spindle. Scratches or dirt on the disc. Significant vibration.
CD-R with no written content. Occasionally the back of the disc.
CD signal abnormality.

15h CD

RF NG

Failed to read RF

-> CD-R with no written content.
CD-RW with no written content.

17h CD

Setup NG

The AGC protection does not work. Easily become out of focus.
=> Scratches or dirt on the disc. Significant vibration. CD-RW

23h CD

File Format NG

Written in the incompatible file format.
=> The CD-ROM recorded in a file format other than ISO 9660 Level 1
or 2 has been set (e.g.UDF).

USB

File Format NG

Written in the incompatible file format.
=> Recorded in a file format other than FAT 12/16/32

SD

File Format NG

Written in the incompatible file format.
=> Recorded in a file format other than FAT 12/16/32

30h CD

Search Time Out

The CD mecha could not reach the target address
=> Failure in the CRG or tracking. Scratches on the disc

50h CD

Loading_Ejecting_Mecha_Error

Disc LoadNG/EjectNG
Foreign object inserted in the mecha. Disc stuck.

16h USB

Unsuccessful authentication of iPod

Unsuccessful authentication of iPod (this occurs only with iPod)
=> In case authentication is attempted again and an error is turned back
from the iPod or authentication IC during iPod authentication

18h USB Incompatible device Incompatible device connection detected

=> In case something other than mass storage or iPod is connected
In case incompatible iPod is connected. Or in case the connected iPod
is compatible but has an incompatible firmware version.

SD Incompatible device Incompatible card connected detected (e.g. incompatible MMC) etc.

22h CD Not playable No playable file

The CD-ROM set has no MP3, WMA, AAC or WAV file.

USB Not playable No playable file

The USB device set has no MP3, WMA, AAC or WAV file.

SD Not playable No playable file

The SD card set has not MP3, WMA, AAC or WAV file.

24h CD All DRM All playable files in the disc are DRM.

USB All DRM All playable files in the device are DRM.

SD All DRM All playable files in the SD card are DRM.

19h USB

Communication error

Cannot communicate with the device
=> In case the device failure or other reason prevents communication

SD

Communication error

Cannot communicate with the SD card
=> In case the SD card failure or other reason prevents communication

External storage device (USB, SD)/iPod

Message Cause Action

NO DEVICE No USB storage

device or iPod is
connected.

Connect a compa­tible USB storage
device/iPod.

FORMAT
READ

Sometimes there
is a delay be­tween the start of
playback and
when you start to
hear any sound.

Wait until the mes­sage disappears
and you hear
sound.

NO AUDIO There are no

songs.

Transfer the audio
files to the USB
storage device and
connect.

The connected
USB storage de­vice has security
enabled.

Follow the USB
storage device in­structions to dis­able the security.

SKIPPED The connected

USB storage de­vice contains
files embedded
with Windows
Media™ DRM 9/

10.

Play an audio file
not embedded with
Windows Media
DRM 9/10.

PROTECT All the files in the

USB storage de­vice are em­bedded with
Windows Media
DRM 9/10.

Transfer audio files
not embedded with
Windows Media
DRM 9/10 to the
USB storage de­vice and connect.

NOT COMPA­TIBLE

The USB device
connected to is
not supported by
this unit.

 Connect a USB
Mass Storage
Class compliant
device.
 Disconnect your
device and replace
it with a compati­ble USB storage
device.

Non-compatible
iPod

Disconnect your
device and replace
it with a compati­ble iPod.

Non-compatible
SD storage de­vice

Remove your de­vice and replace it
with a compatible
SD storage device.

Message Cause Action

CHECK USB The USB connec-

tor or USB cable
has short­circuited.

Check that the
USB connector or
USB cable is not
caught in some­thing or damaged.

The connected
USB storage de­vice consumes
more than maxi­mum allowable
current.

Disconnect the
USB storage de­vice and do not
use it. Turn the
ignition switch to
OFF, then to ACC
or ON and then
connect only com­pliant USB storage
devices.

The iPod oper­ates correctly but
does not charge.

Make sure the con­nection cable for
the iPod has not
shorted out (e.g.,
not caught in
metal objects).
After checking,
turn the ignition
switch OFF and
back ON, or dis­connect the iPod
and reconnect.

ERROR-19 Communication

failed.

 Perform one of
the following op­erations.
–Turn the ignition
switch OFF and
back ON.
–Disconnect or
eject the external
storage device.
–Change to a dif­ferent source.
Then, return to the
USB or SD source.
 Disconnect the
cable from the
iPod. Once the
iPod’s main menu
is displayed, recon­nect the iPod and
reset it.

iPod failure. Disconnect the

cable from the
iPod. Once the
iPod’s main menu
is displayed, recon­nect the iPod and
reset it.

Message Cause Action

ERROR-23 USB storage de-

vice was not for­matted with
FAT12, FAT16 or
FAT32.

USB storage de­vice should be for­matted with FAT12,
FAT16 or FAT32.

ERROR-16 The iPod firm-

ware version is
old.

Update the iPod
version.

iPod failure. Disconnect the

cable from the
iPod. Once the
iPod’s main menu
is displayed, recon­nect the iPod and
reset it.

STOP There are no

songs in the cur­rent list.

Select a list that
contains songs.

Not found No related

songs.

Transfer songs to
the iPod.

Bluetooth device

Message Cause Action

ERROR-10 The power failed

for the Bluetooth
module of this
unit.

Turn the ignition
switch OFF and
then to ACC or ON.
If the error mes­sage is still dis­played after
performing the
above action,
please contact
your dealer or an
authorized Pioneer
Service Station.

Pandora

Message Cause Action

ERROR-19 Communication

failed.

Disconnect the
cable from the
iPod. Once the
iPod’s main menu
is displayed, recon­nect the iPod and
reset it.

Start up the
Pandora Ap­plication

The Pandora ap­plication has not
started running
yet.

Start up the
Pandora applica­tion from your
iPod/iPhone.

Message Cause Action

Try again later Unable to save

thumb rating.
Unable to save
BookMark.
Pandora system
is undergoing
maintenance.

Try again later.

Skip limit
reached

Skip limit
reached.

Do not exceed the
skip limit.

Check Appli­cation

This version of
the Pandora ap­plication is not
supported.

Connect an iPod/
iPhone that has a
compatible version
of the Pandora ap­plication installed.

Check Device Device error mes-

sage displayed in
Pandora Applica­tion.
Unable to play
music from
Pandora.

Please check your
iPod/iPhone.

No Available
Station

No station found. Create a station in

the Pandora appli­cation on your
iPod/iPhone.

No Active Sta­tions

No station se­lected.

Select a station.

Auto TA and EQ

Message Cause Action

ERR:MIC check The microphone

is not connected.

Plug the supplied
microphone se­curely into the
jack.

ERR:Front
Speaker,ERR:
Front-Lch,
ERR:Front-Rch,
ERR:Rear-Lch,
ERR:Rear-Rch,
ERR:SubW­Lch,ERR:
SubW-Rch,
ERR:SubWoo­fer

The microphone
cannot pick up
the measuring
tone of a speaker.

 Confirm that the
speakers are con­nected correctly.
 Cancel muting
the front speaker
units.
 Correct the input
level setting of the
power amp con­nected to the
speakers.
 Set the micro­phone correctly.

ERR:Outside
Noise

The surrounding
noise level is too
high.

 Stop your car in
a place that is
quiet, and switch
off the engine, air
conditioner and
heater.
 Set the micro­phone correctly.

1 FL+
2 FR+
3 FL­4 FR­5 RL+
6 RR+
7 RL­8 RR-

9 NC
10 NC
11 ILL
12 NC
13 ACC
14 B.REM
15 B.UP
16 GND

16

14

12

10 8

6

42

15

13

11

97

5

31

FM/AM ANTENNA

USB

REAR OUTPUT or
HIGH RANGE OUTPUT

SUBWOOFER or

LOW RANGE OUTPUT

REAR AUX

INPUT

FRONT OUTPUT or MID RAGE OUTPUT

WIRED REMOTE CONTROL INPUT

MICROPHONE INPUT for BT

(UC, EW5 only)

Service Display Test Mode

2. Operation method

u

u
rrr Display test mode selection screen tt
uu
u EQ+BAND key u LIST key
uu

uu

t General display of display mode t Display of version information
iu iu
iu

EQ + BAND key

iuLIST key
iu iu
i Static display of display mode i Display of ROM collection information
iu iu
iu

EQ + BAND key

iuLIST key
iu iu
i All lights ON i All lights ON
iu iu
iu

EQ + BAND key

iuLIST key
iu iu

rru i All lights OFF

iu

iuLIST key

iu

i Confirmation of image ROM connection

iu

iuLIST key

iu

i Display of media microcomputer information

iu

iuLIST key

iu

i Display of Manufacture_ID information

iu

iuLIST key UC only

iu

rru

<Display Test Mode> <Service display Test Mode>

1. Overview
This is the test mode which summarized the confirmation of the system microcomputer version and
the all light ON/OFF functions of a display part.

Turn on BUP and ACC while pressing [EQ] + [BAND] together.

3. Contents to be displayed

Display test mode selection screen

Manual Flap model

0 8 16 24 32 40 48 56 64 72 80 88 96 04 12 20 28 36 44 52 60 68 76 84 92

8

-Mode Select-

16
24
32
40
48

All lights ON

0 8 16 24 32 40 48 56 64 72 80 88 96 04 12 20 28 36 44 52 60 68 76 84 92

8
16
24
32
40
48

— If nothing appears on the screen:

There might be a problem in communication or abnormality in the display microcomputer.

— If noise appears on the screen:

There might be abnormality in the display microcomputer or a problem, for instance, in connection between the
display microcomputer and the OEL driver.

Display of version information

0 8 16 24 32 40 48 56 64 72 80 88 96 04 12 20 28 36 44 52 60

68 76 84 92

Description:

8

IC Info.

UNIT

16

———————

24

PD Ve r UNI T

32

SYS ***** *.** _ ????

40

DI S ##### # . ## _ &&&&

48

PIC !!!!! !.!!

????:The unit number information of the system

microcomputer
&&&&:The unit number information of the display
microcomputer
Display the four-digit number only.
(For CWW1969, display 1969)

Display of ROM collection information
(1) If no information could be acquired from EEPROM

0 8 16 24 32 40 48 56 64 72 80 88 96 04 12 20 28 36 44 52 60

68 76 84 92

8

EEPROM I n f o .

16

———————

24

$$$$$$$$$$$:Error information

32

When ROM collection is not connected:
NO_EEPROM

40

ROM collection data error:ROM_ERROR

48

(2) If information is successfully acquired from EEPROM

0 8 16 24 32 40 48 56 64 72 80 88 96 04 12 20 28 36 44 52 60

68 76 84 92

8

EEPROM I n f o .

16

———————

24

####:EEPROM collection version information

32

! ! ! !:CH use information

40

(1: Used, 0: Not used. Corresponding to:
CH1, CH2, CH3 and CH4 from left)

48

— If nothing appears on the screen:

There might be a problem in communication or abnormality in the display microcomputer.

— If an obviously weird numeral appears as the version:

There might be a problem in communication.

— If the number of CHs used is not properly displayed despite the version displayed:

There might be defective connection with EEPROM.

!!####- ! !SYSTEM :

###- !!!!

$$$$

PLA$Y: #

$

DIS

SYSTEM $

$$$$$$$$$

$$:

LAY

PL Y :ADIS

TEST

DISP BAND

VI

Q+

CE

:E

SER : L I ST

All lights OFF

0 8 16 24 32 40 48 56 64 72 80 88 96 04 12 20 28 36 44 52 60 68 76 84 92

8
16
24
32
40
48

— If noise appears on the screen:

There might be abnormality in the display microcomputer or a problem, for instance, in connection between the
display microcomputer and the OEL driver.

Confirmation of image ROM connection

0 8 16 24 32 40 48 56 64 72 80 88 96 04 12 20 28 36 44 52 60 68 76 84 92

8

Bus Connect T e s t

16

———————

24
32
40
48

##:OK or NG

— If nothing appears on the screen:

There might be a problem in communication or abnormality in the display microcomputer.

— If NG appears somewhere:

There might be defective connection between the display microcomputer and image ROM.
For instance, NG appearing with respect to the data bus does not necessarily mean data bus connection is definitely
defective.
Where the address bus is the reason for NG appearing, an error could still occur when checking the data bus.

Display of media microcomputer information

0 8 16 24 32 40 48 56 64 72 80 88 96 04 12 20 28 36 44 52 60 68 76 84 92

Description:

8

MED I A I n f o .

UNIT

16

———————

24

PD * * * * *

_:
Caution: The display is blank because nothing is sent
from the media microcomputer.

32

UN I T

_ ????

????:Media microcomputer unit number information

40

Ver * * . * *

48

— If nothing appears on the screen:

There might be a problem in communication to the display microcomputer, or abnormality in the display
microcomputer itself.

— If an obviously weird numeral appears on the media microcomputer version:

There might be a problem in communication between the system microcomputer and display microcomputer, or
between the system and media microcomputer.

Display of Manufacture_ID information (UC only)

0 8 16 24 32 40 48 56 64 72 80 88 96 04 12 20 28 36 44 52 60 68 76 84 92

8

Ma n u f a c t u r e I D

16

———————

24

0xC02820ED

32
40
48

ADRS #:#

us :

Bus

##DATA B

[Key]

Contents

Display

[BAND]

Power On

(T.Offset is adjusted)

TRK MIN SEC

00 00 00

[2]

RF AMP

Gain switching

GG GG GG

*1

[3]

Focus Close

S curve check

TRK MIN SEC

91 91 91

[6]

Focus Mode switching

0X 0X 0X

*2

[1]

Tracking Servo

Close

00 00 00

or 99 99 99

[UP]

CRG +

[2]

Self-adjusting

switching

TRK MIN SEC

?? ?? ??

*3*6

[DOWN]

CRG —

*6

[BAND]

Power Off

TRK MIN SEC

[BAND]

Power Off

TRK MIN SEC

[BAND]

Power Off

TRK MIN SEC

[BAND]

Power Off

TRK MIN SEC

[1]

T.Close & AGC

Applicable servomechanism

TRK MIN SEC

?tr ?min ?sec

[3]

RF AGC /

RF AGC coefficient display

[UP]

CRG +

8X 8X 8X

or 9X 9X 9X

[2]
T.Balance adjustment /

T.BAL coefficient display

TRK MIN SEC

?? ?? ??

[DOWN]

CRG —

?? ?? ??

[1]

F,T,RF AGC

F.Bias display switching

TRK MIN SEC

TRK MIN SEC

TRK MIN SEC

[3] [UP]

CRG/TR Jump +

[2]

Tracking Open

[DOWN]

CRG/TR Jump —

?tr ?min ?sec

TRK MIN SEC

TRK MIN SEC

00 00 00

or 99 99 99

TRK MIN SEC

?tr ?min ?sec

8X 8X 8X

or 9X 9X 9X

8X 8X 8X

or 9X 9X 9X

00 00 00

or 99 99 99

TRK MIN SEC

?tr ?min ?sec?? ?? ??

*5

F,T AGC / F.Bias

RF AGC

8X 8X 8X

or 9X 9X 9X

[2]

Tracking Open

*6

*4 *4

Operation

[Key]

Test Mode
[BAND] Power On/Off
[UP]

CRG + / TR Jump +
(Direction of the external surface)

[DOWN]

CRG — / TR Jump ­(Direction of the internal surface)

[1] T. CLS & AGC & Applicable servomechanism /

AGC,AGC display setting

[2] RF Gain switching / Offset adjustment display /

T.Balance adjustment / T. Open

[3] F. Close,S. Curve / Rough Servo and RF AGC /

F,T,RF AGC

[6] F. Mode switching / Tracking Close

After the [EJECT] key is pressed keys other than the [EJECT] key should not be pressed, until disc ejection is complete.
When the key [UP] or [DOWN] is pressed during the Focus Search, the power supply should be immediately turned off (otherwise the
lens sticks to Wall, causing the actuator to be damaged).
In the case of 100TR Jump, the mechanism shall be set to the Tracking Close mode when the key is released.
When the power is turned on/off the gain of the RFAMP is reset to 0 dB. At the same time all the self-adjusting values shall return to the
default setting.
Do not do Tracking Servo Close before doing Focus Servo Close. (Because the overcurrent flows)

— Flow Chart

[CD] or [SOURCE]

Source ON

TRK MIN

To enter the test mode: [PHONE] + [BAND] -> BUP + ACC ON (UC, EW5)
[COLOR] + [BAND] -> BUP + ACC ON (ES)
Operate with a Remote Control with 1 — 6 keys for a CD Receiver in the test mode.

*1) TYP t + 6 dB t + 12 dB

TRK

MIN

SEC

TRK06MIN06SEC

06

TRK12MIN12SEC

12

*2) Focus Close

t S. Curve t F EQ measurement setting

TRK00MIN00SEC

00

TRK

01

MIN01SEC

01

TRK02MIN02SEC

02

(

TRK99MIN99SEC

99)

*3) F.Offset Display t

*4) 100TR Jump

*5) TRK/MIN/SEC

t F.AGC t T.AGC Gain t F.Bias t RF AGC

*6) CRG motor voltage = 2 [V]

RF.Offset

Switch to the order
of the original
display

t

T.Offset Display t

2

1

2

1

1

2

1

2

3

4

5

1

Push the area and remove the two hooks.

Slide the Tuner Amp Assy in the direction
of the arrow.

Disconnect the FFC and then remove the
CD Mechanism Module.

2 2

3

3

5

Lift off the Tuner Amp Assy from the Front Side.

Front

Heat Sink Side

The CD Mechanism Module side is made a bottom.

— Removing the CD Mechanism Module (Fig.2, 3, 4)

CD Mechanism Module

CD Mechanism Module

Tuner Amp Assy

Remove the two screws.

Release the two latches and then remove
the Panel Assy.

— Removing the Panel Assy (Fig.1)

Fig.4

Fig.1

Fig.2

Fig.3

Remove the screw.

Remove the two screws.

Panel Assy

Tuner Amp Assy

4

1

2

3

— Removing the Tu n er Amp Unit (Fig.5)

Remove the two screws.

Remove the two screws.

Straighten the tabs at three locations
indicated and then remove the Tu n e r
Amp Unit.

Tu n e r Amp Unit

CD Mechanism Module

— Attention of removing (Fig.6)

Don’t remove this screws excluding the dismantlement
of the CD Mechanism Module.

Fig.5

Fig.6

3

1

3

2

3

1

2
