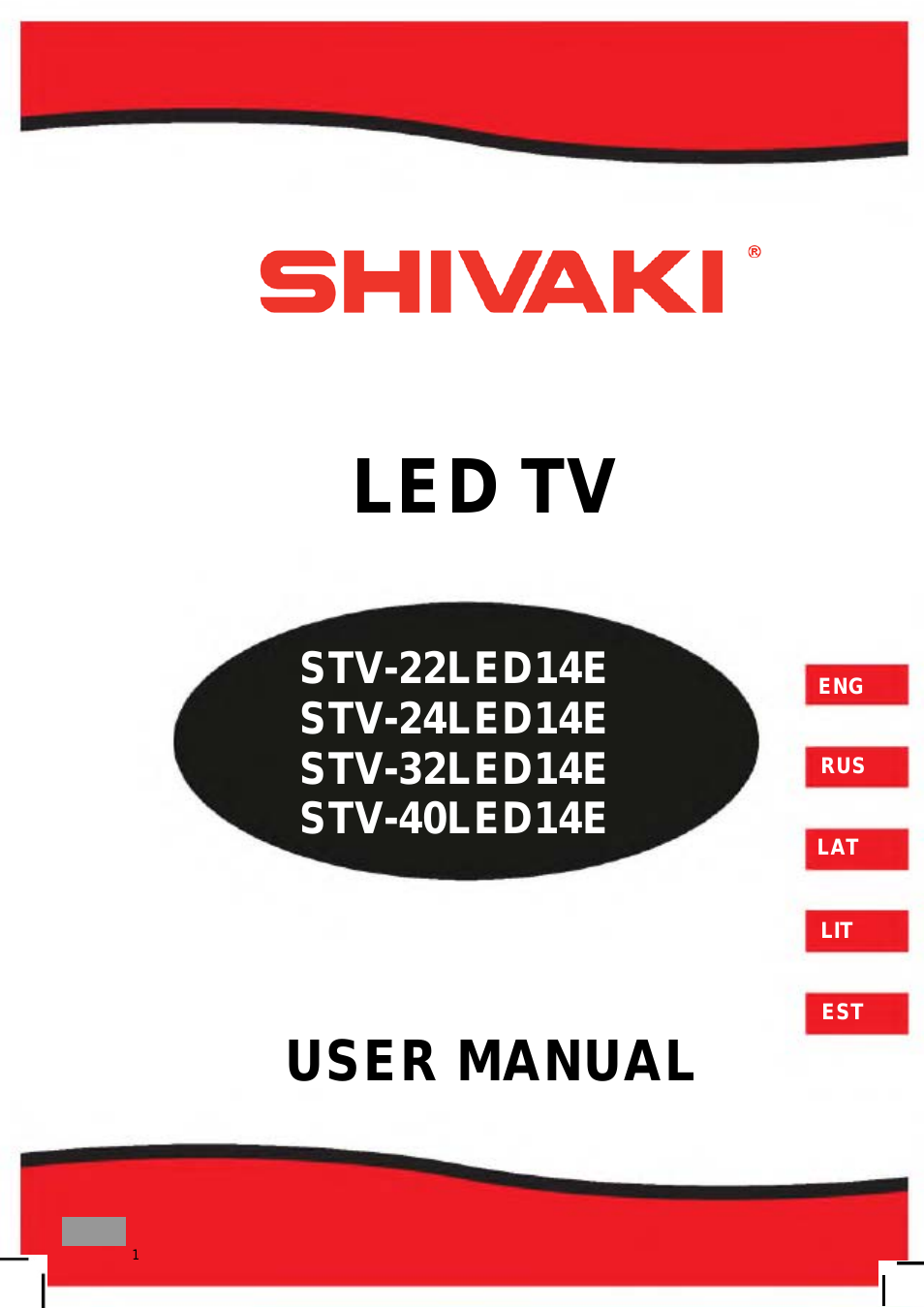

LED TV

STV-22LED14E
STV-24LED14E
STV-32LED14E
STV-40LED14E

USER MANUAL

ENG

RUS

LAT

LIT

EST

1

E

NG

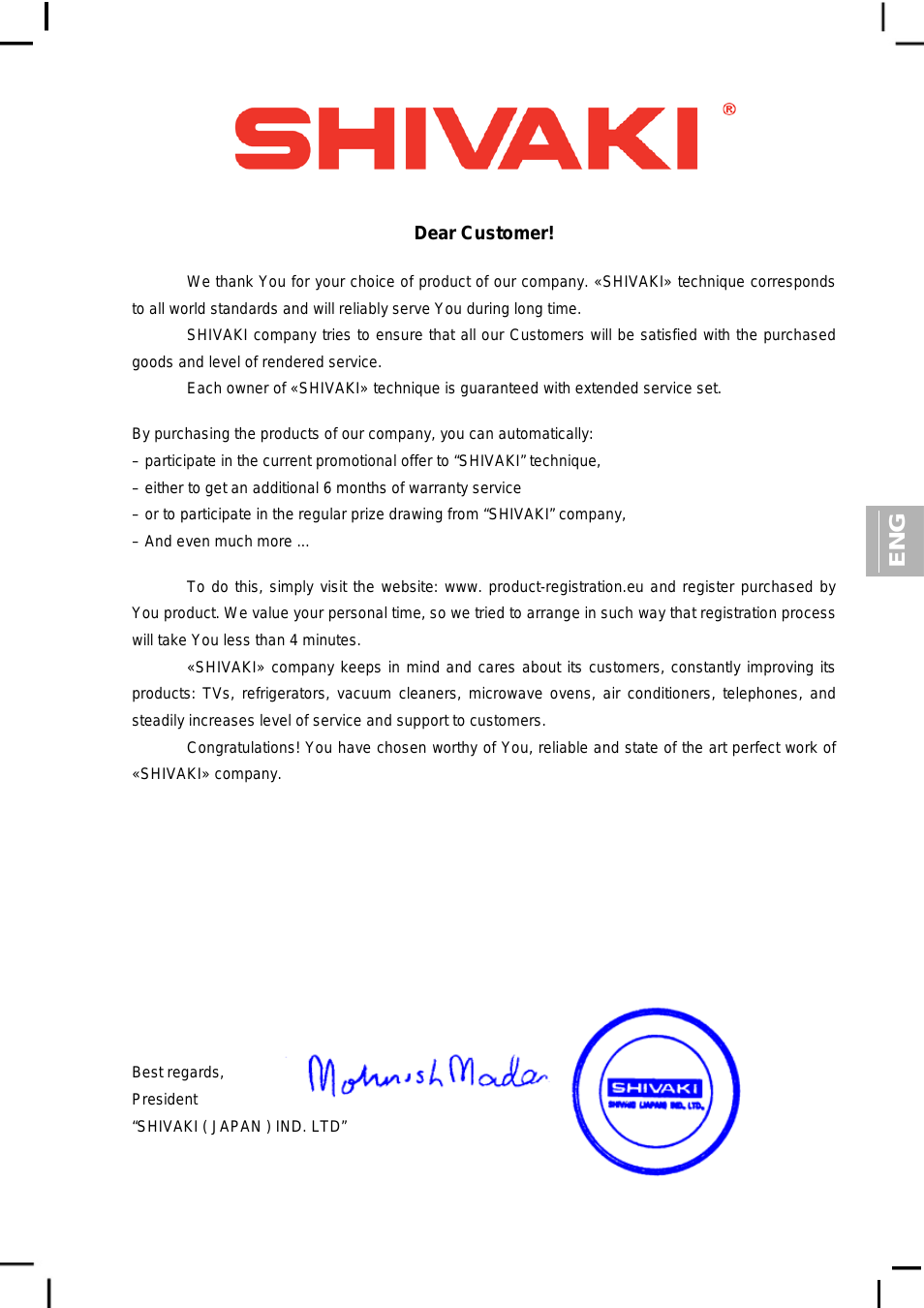

Dear Customer!

We thank You for your choice of product of our company. «SHIVAKI» technique corresponds

to all world standards and will reliably serve You during long time.

SHIVAKI company tries to ensure that all our Customers will be satisfied with the purchased

goods and level of rendered service.

Each owner of «SHIVAKI» technique is guaranteed with extended service set.

By purchasing the products of our company, you can automatically:

– participate in the current promotional offer to “SHIVAKI” technique,

– either to get an additional 6 months of warranty service

– or to participate in the regular prize drawing from “SHIVAKI” company,

– And even much more …

To do this, simply visit the website: www. product-registration.eu and register purchased by

You product. We value your personal time, so we tried to arrange in such way that registration process

will take You less than 4 minutes.

«SHIVAKI» company keeps in mind and cares about its customers, constantly improving its

products: TVs, refrigerators, vacuum cleaners, microwave ovens, air conditioners, telephones, and

steadily increases level of service and support to customers.

Congratulations! You have chosen worthy of You, reliable and state of the art perfect work of

«SHIVAKI» company.

Best regards,

President

“SHIVAKI ( JAPAN ) IND. LTD”

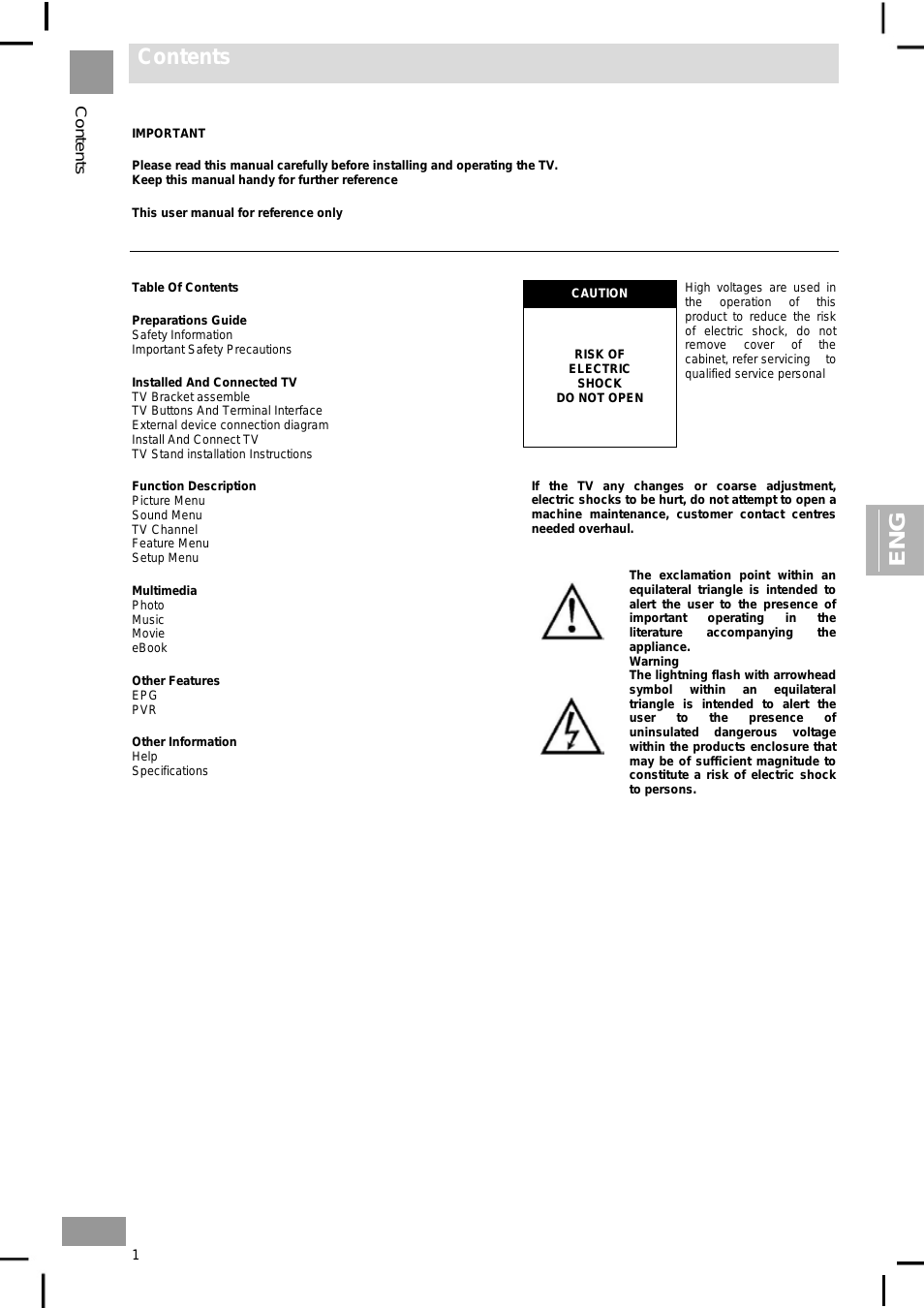

Contents

C

ont

ent

s

E

NG

IMPORTANT

Please read this manual carefully before installing and operating the TV.
Keep this manual handy for further reference

Preparations Guide
Safety Information
Important Safety Precautions

Installed And Connected TV
TV Bracket assemble
TV Buttons And Terminal Interface
External device connection diagram
Install And Connect TV
TV Stand installation Instructions

Function Description
Picture Menu
Sound Menu
TV Channel
Feature Menu
Setup Menu

Multimedia
Music
Movie
eBook

Other Features
EPG
PVR

Other Information
Help
Specifications

CAUTION

High voltages are used in
the operation of this
product to reduce the risk
of electric shock, do not
remove cover of the
cabinet, refer servicing to
qualified service personal

RISK OF

ELECTRIC

SHOCK

DO NOT OPEN

If the TV any changes or coarse adjustment,
electric shocks to be hurt, do not attempt to open a
machine maintenance, customer contact centres
needed overhaul.

The exclamation point within an
equilateral triangle is intended to
alert the user to the presence of
important operating in the
literature accompanying the
appliance.

Warning
The lightning flash with arrowhead
symbol within an equilateral
triangle is intended to alert the
user to the presence of
uninsulated dangerous voltage
within the products enclosure that
may be of sufficient magnitude to
constitute a risk of electric shock
to persons.

1

Important Safety Precautions

Im

po

rt

an

t S

a

fet

y

P

rec

au

ti

ons

E

NG

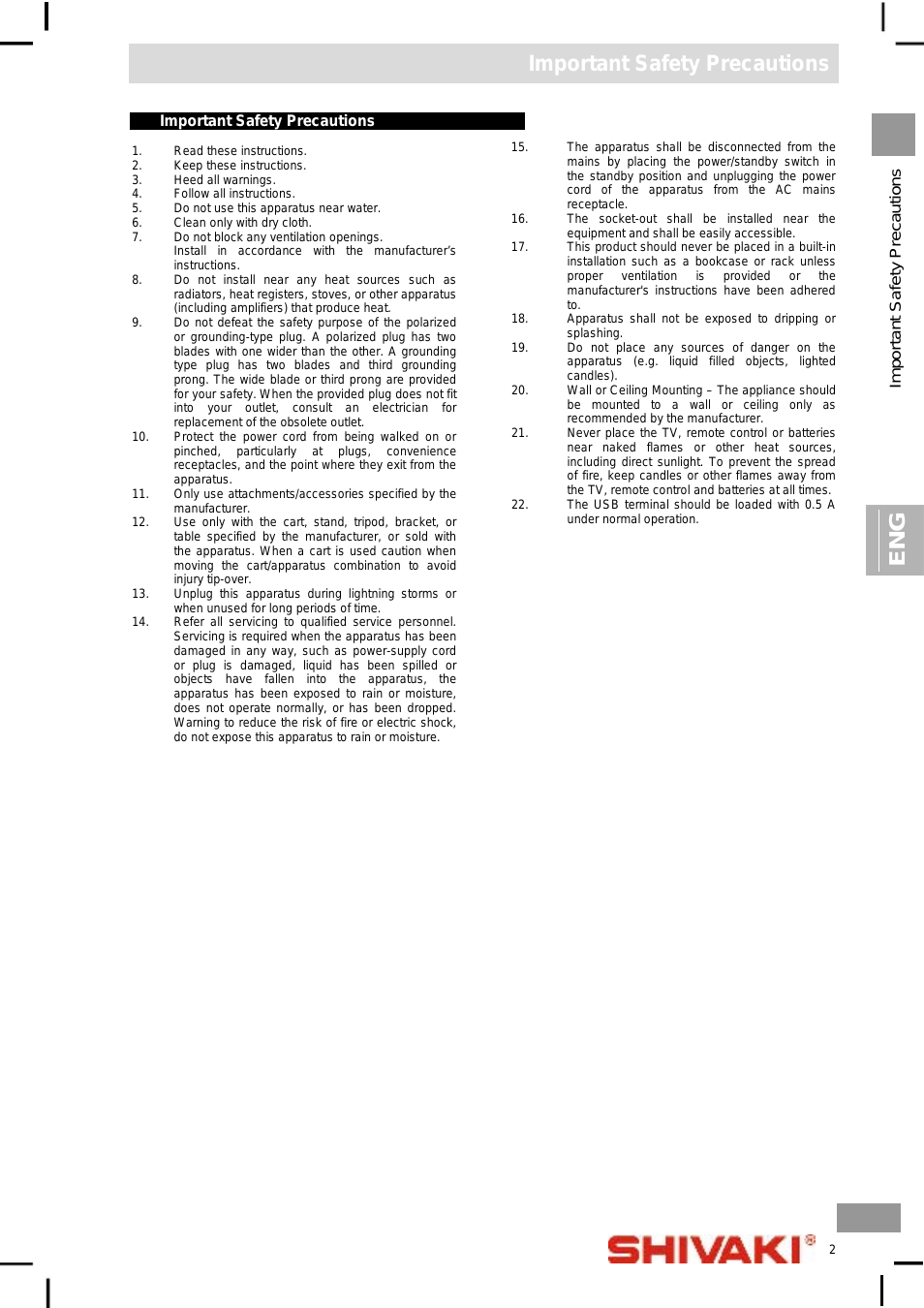

Important Safety Precautions

1.

Read these instructions.

2.

Keep these instructions.

3.

Heed all warnings.

4.

Follow all instructions.

5.

Do not use this apparatus near water.

6.

Clean only with dry cloth.

7.

Do not block any ventilation openings.
Install in accordance with the manufacturer’s
instructions.

8.

Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.

9.

Do not defeat the safety purpose of the polarized
or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding
type plug has two blades and third grounding
prong. The wide blade or third prong are provided
for your safety. When the provided plug does not fit
into your outlet, consult an electrician for
replacement of the obsolete outlet.

10.

Protect the power cord from being walked on or
pinched, particularly at plugs, convenience
receptacles, and the point where they exit from the
apparatus.

11.

Only use attachments/accessories specified by the
manufacturer.

12.

Use only with the cart, stand, tripod, bracket, or
table specified by the manufacturer, or sold with
the apparatus. When a cart is used caution when
moving the cart/apparatus combination to avoid
injury tip-over.

13.

Unplug this apparatus during lightning storms or
when unused for long periods of time.

14.

Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord
or plug is damaged, liquid has been spilled or
objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
Warning to reduce the risk of fire or electric shock,
do not expose this apparatus to rain or moisture.

15.

The apparatus shall be disconnected from the
mains by placing the power/standby switch in
the standby position and unplugging the power
cord of the apparatus from the AC mains
receptacle.

16.

The socket-out shall be installed near the
equipment and shall be easily accessible.

17.

This product should never be placed in a built-in
installation such as a bookcase or rack unless
proper

ventilation is provided or the

manufacturer’s instructions have been adhered
to.

18.

Apparatus shall not be exposed to dripping or
splashing.

19.

Do not place any sources of danger on the
apparatus (e.g. liquid filled objects, lighted
candles).

20.

Wall or Ceiling Mounting – The appliance should
be mounted to a wall or ceiling only as
recommended by the manufacturer.

21.

Never place the TV, remote control or batteries
near naked flames or other heat sources,
including direct sunlight. To prevent the spread
of fire, keep candles or other flames away from
the TV, remote control and batteries at all times.

22.

The USB terminal should be loaded with 0.5 A
under normal operation.

2

Installed And Connected TV

Ins
tal

led A

nd C

onne

c

ted
TV

E

NG

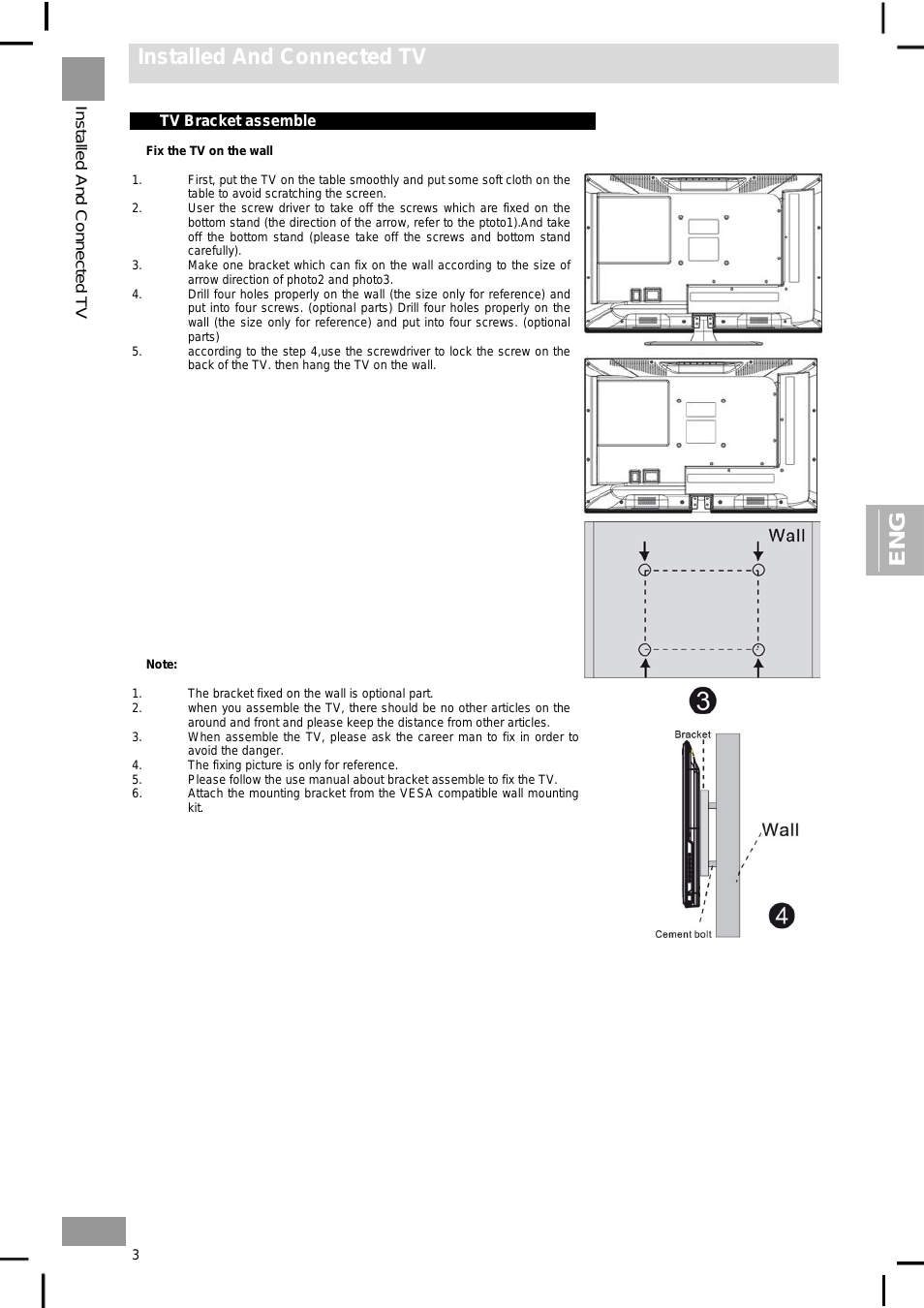

TV Bracket assemble

Fix the TV on the wall

1.

First, put the TV on the table smoothly and put some soft cloth on the
table to avoid scratching the screen.

2.

User the screw driver to take off the screws which are fixed on the
bottom stand (the direction of the arrow, refer to the ptoto1).And take
off the bottom stand (please take off the screws and bottom stand
carefully).

3.

Make one bracket which can fix on the wall according to the size of
arrow direction of photo2 and photo3.

4.

Drill four holes properly on the wall (the size only for reference) and
put into four screws. (optional parts) Drill four holes properly on the
wall (the size only for reference) and put into four screws. (optional
parts)

5.

according to the step 4,use the screwdriver to lock the screw on the
back of the TV. then hang the TV on the wall.

Note:

1.

The bracket fixed on the wall is optional part.

2.

when you assemble the TV, there should be no other articles on the
around and front and please keep the distance from other articles.

3.

When assemble the TV, please ask the career man to fix in order to
avoid the danger.

4.

The fixing picture is only for reference.

5.

Please follow the use manual about bracket assemble to fix the TV.

6.

Attach the mounting bracket from the VESA compatible wall mounting
kit.

3

Installed And Connected TV

Ins

tal

led A

nd C

onne

c

ted

TV

E

NG

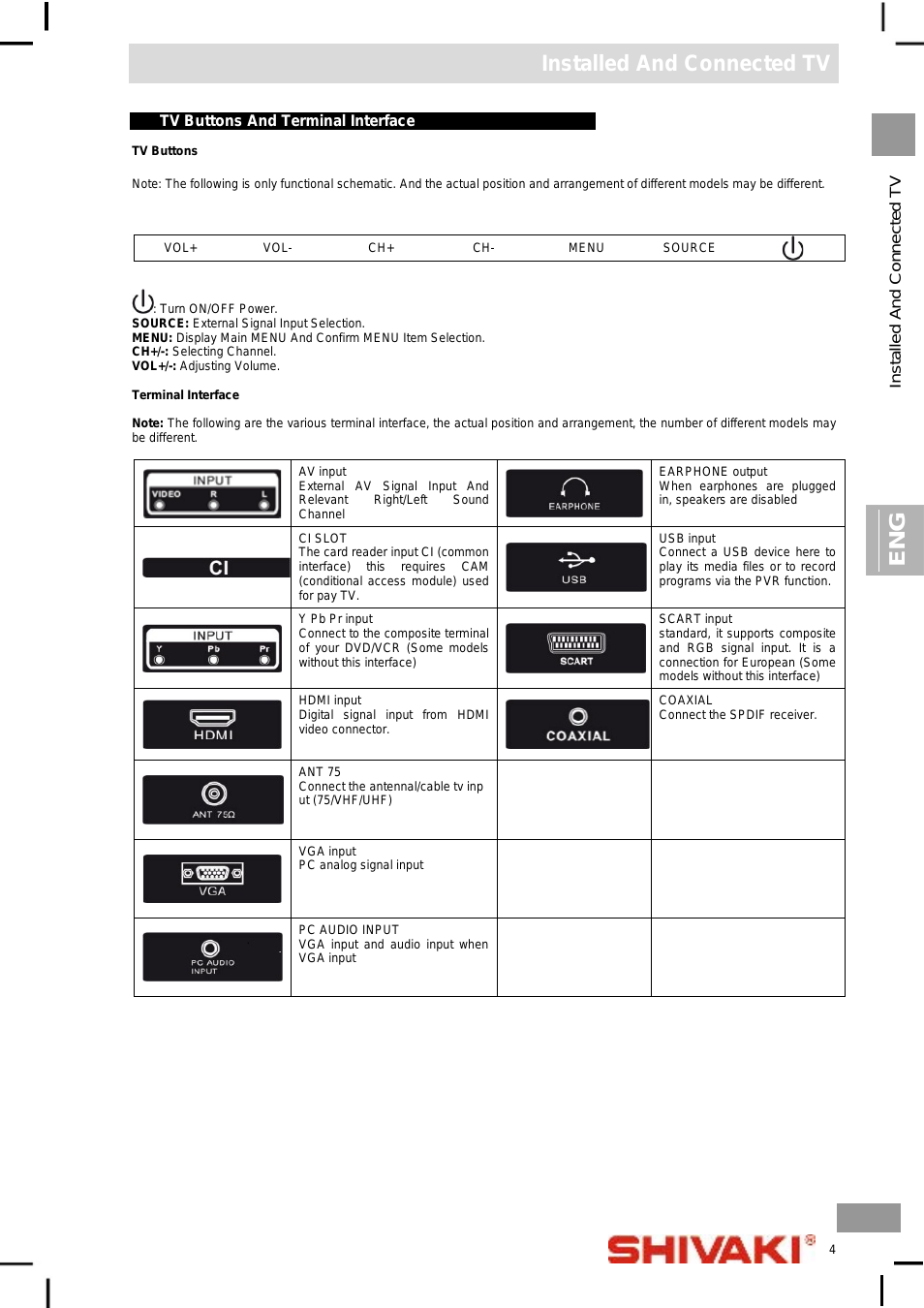

TV Buttons And Terminal Interface

TV Buttons

VOL+

VOL-

CH+

CH-

MENU

SOURCE

: Turn ON/OFF Power.

AV input
External AV Signal Input And
Relevant

Right/Left

Sound

Channel

EARPHONE output
When earphones are plugged
in, speakers are disabled

CI SLOT
The card reader input CI (common
interface)

this requires CAM

(conditional access module) used
for pay TV.

USB input
Connect a USB device here to
play its media files or to record
programs via the PVR function.

Y Pb Pr input
Connect to the composite terminal
of your DVD/VCR (Some models
without this interface)

SCART input
standard, it supports composite
and RGB signal input. It is a
connection for European (Some
models without this interface)

HDMI input
Digital signal input from HDMI
video connector.

COAXIAL
Connect the SPDIF receiver.

ANT 75
Connect the antennal/cable tv inp
ut (75/VHF/UHF)

VGA input
PC analog signal input

PC AUDIO INPUT
VGA input and audio input when
VGA input

4

Installed And Connected TV

Ins
tal

led A

nd C

onne

c

ted
TV

E

NG

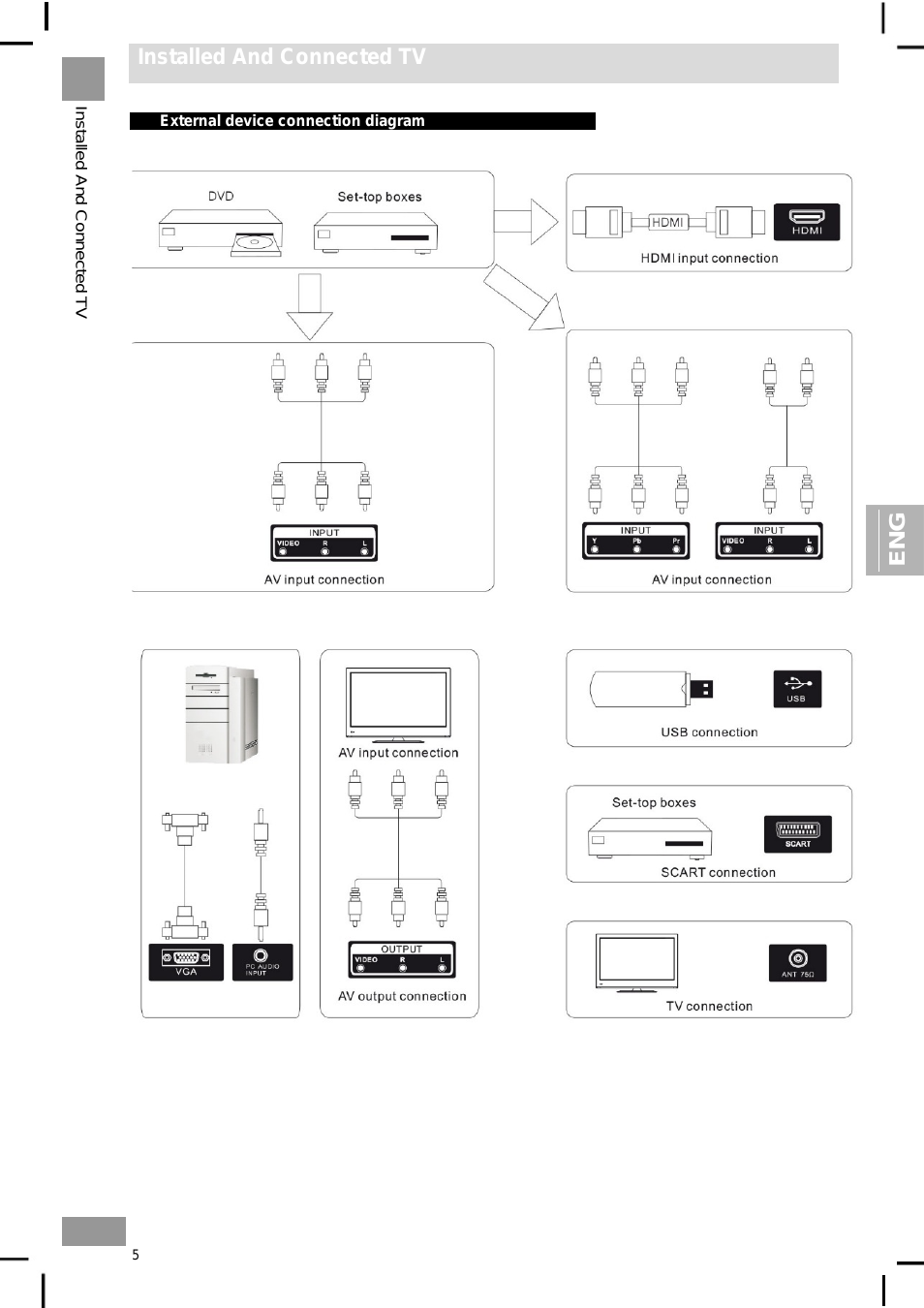

External device connection diagram

5

Installed And Connected TV

Ins

tal

led A

nd C

onne

c

ted

TV

E

NG

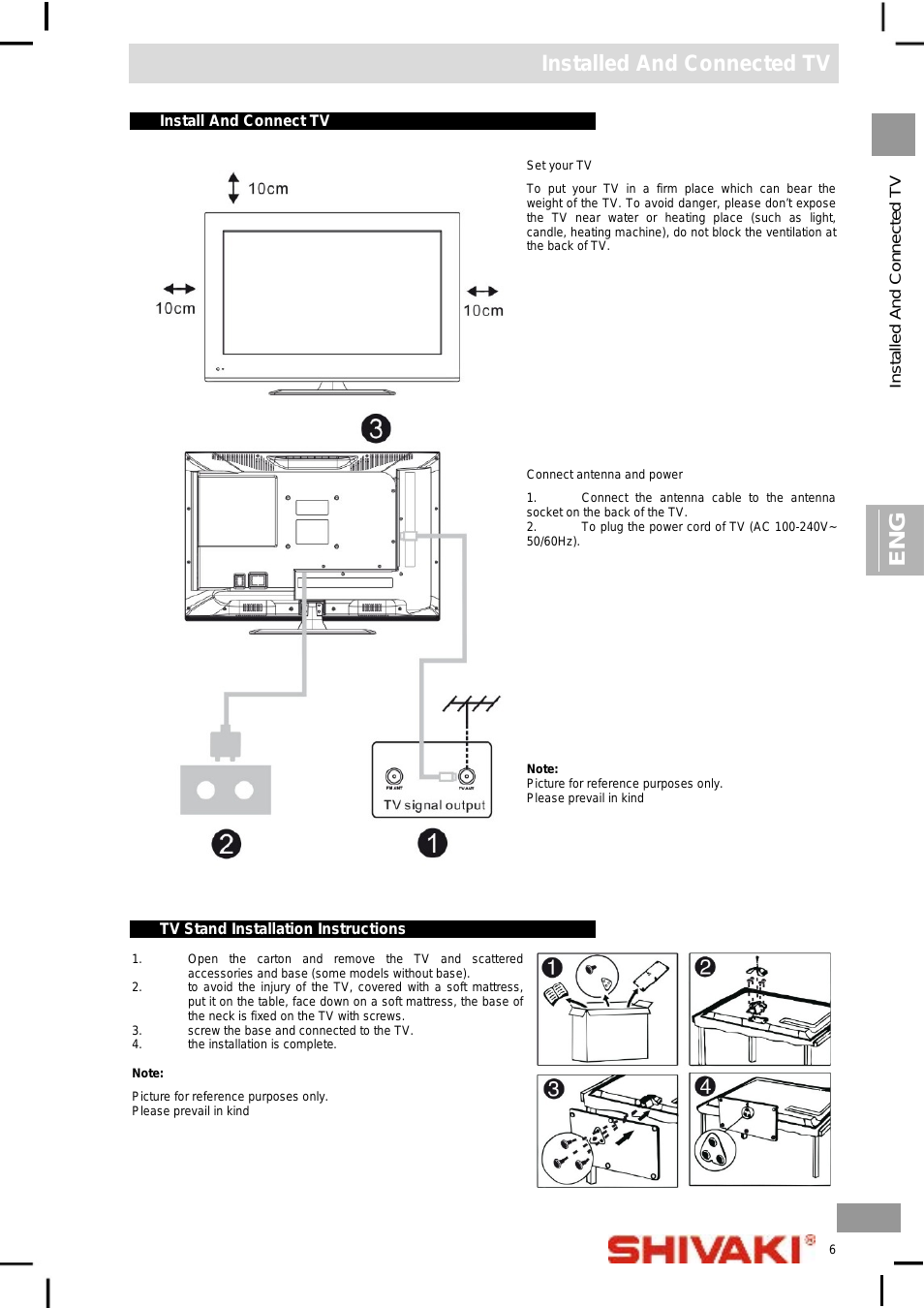

Install And Connect TV

Set your TV

1.

Connect the antenna cable to the antenna

socket on the back of the TV.
2.

To plug the power cord of TV (AC 100-240V~

TV Stand Installation Instructions

1.

Open the carton and remove the TV and scattered
accessories and base (some models without base).

2.

to avoid the injury of the TV, covered with a soft mattress,
put it on the table, face down on a soft mattress, the base of
the neck is fixed on the TV with screws.

3.

screw the base and connected to the TV.

4.

the installation is complete.

Note:

6

Function Description

Func

tion D

es
c

ript

ion

E

NG

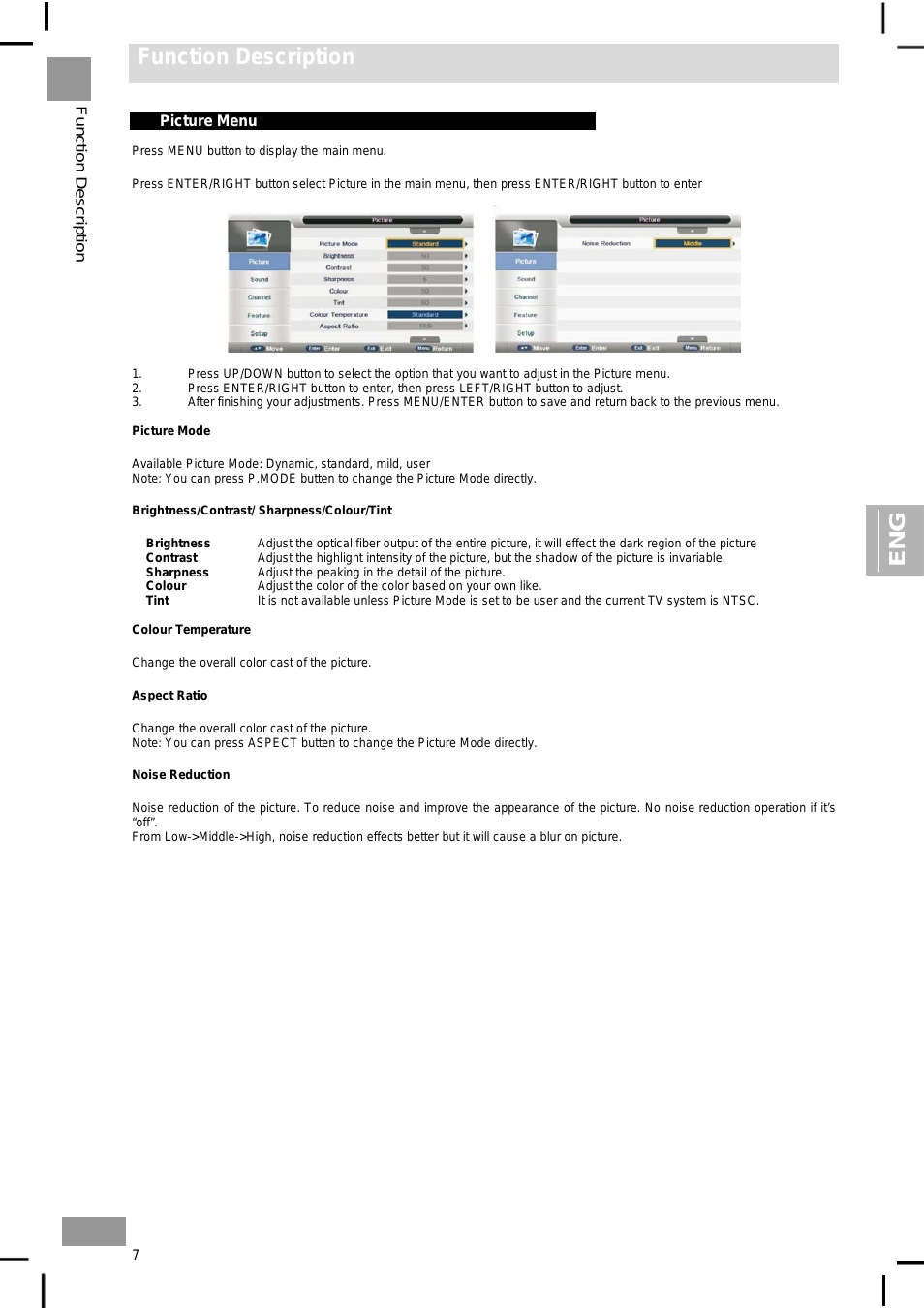

Picture Menu

Press MENU button to display the main menu.

Press ENTER/RIGHT button select Picture in the main menu, then press ENTER/RIGHT button to enter

1.

Press UP/DOWN button to select the option that you want to adjust in the Picture menu.

2.

Press ENTER/RIGHT button to enter, then press LEFT/RIGHT button to adjust.

3.

After finishing your adjustments. Press MENU/ENTER button to save and return back to the previous menu.

Picture Mode

Available Picture Mode: Dynamic, standard, mild, user
Note: You can press P.MODE butten to change the Picture Mode directly.

Brightness/Contrast/ Sharpness/Colour/Tint

Brightness

Adjust the optical fiber output of the entire picture, it will effect the dark region of the picture

Contrast

Adjust the highlight intensity of the picture, but the shadow of the picture is invariable.

Sharpness

Adjust the peaking in the detail of the picture.

Colour

Adjust the color of the color based on your own like.

Tint

It is not available unless Picture Mode is set to be user and the current TV system is NTSC.

Colour Temperature

Change the overall color cast of the picture.

Aspect Ratio

Change the overall color cast of the picture.
Note: You can press ASPECT butten to change the Picture Mode directly.

Noise Reduction

Noise reduction of the picture. To reduce noise and improve the appearance of the picture. No noise reduction operation if it’s
“off”.
From Low->Middle->High, noise reduction effects better but it will cause a blur on picture.

7

Function Description

F

unc

ti

on D

es

c

ri

pt

ion

E

NG

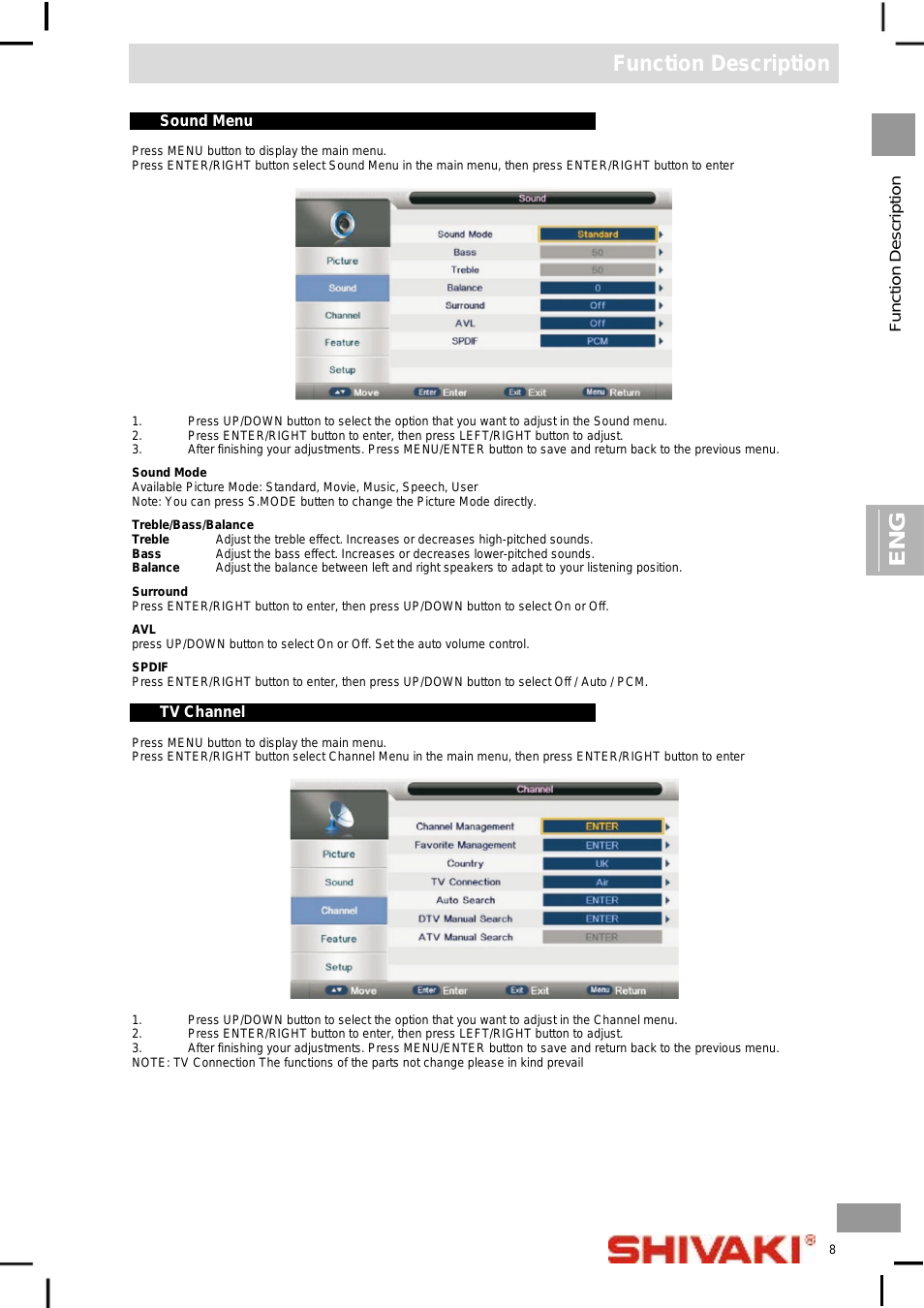

Sound Menu

Press MENU button to display the main menu.
Press ENTER/RIGHT button select Sound Menu in the main menu, then press ENTER/RIGHT button to enter

1.

Press UP/DOWN button to select the option that you want to adjust in the Sound menu.

2.

Press ENTER/RIGHT button to enter, then press LEFT/RIGHT button to adjust.

3.

After finishing your adjustments. Press MENU/ENTER button to save and return back to the previous menu.

Sound Mode
Available Picture Mode: Standard, Movie, Music, Speech, User
Note: You can press S.MODE butten to change the Picture Mode directly.

Treble/Bass/Balance
Treble

Adjust the treble effect. Increases or decreases high-pitched sounds.

Bass

Adjust the bass effect. Increases or decreases lower-pitched sounds.

Balance

Adjust the balance between left and right speakers to adapt to your listening position.

Surround
Press ENTER/RIGHT button to enter, then press UP/DOWN button to select On or Off.

AVL
press UP/DOWN button to select On or Off. Set the auto volume control.

SPDIF
Press ENTER/RIGHT button to enter, then press UP/DOWN button to select Off / Auto / PCM.

TV Channel

Press MENU button to display the main menu.
Press ENTER/RIGHT button select Channel Menu in the main menu, then press ENTER/RIGHT button to enter

1.

Press UP/DOWN button to select the option that you want to adjust in the Channel menu.

2.

Press ENTER/RIGHT button to enter, then press LEFT/RIGHT button to adjust.

3.

After finishing your adjustments. Press MENU/ENTER button to save and return back to the previous menu.

NOTE: TV Connection The functions of the parts not change please in kind prevail

8

Нажмите на кнопку для помощи

Manual: STV140M4 SM SHIVAKI EN

Relevant TV forum topics:
