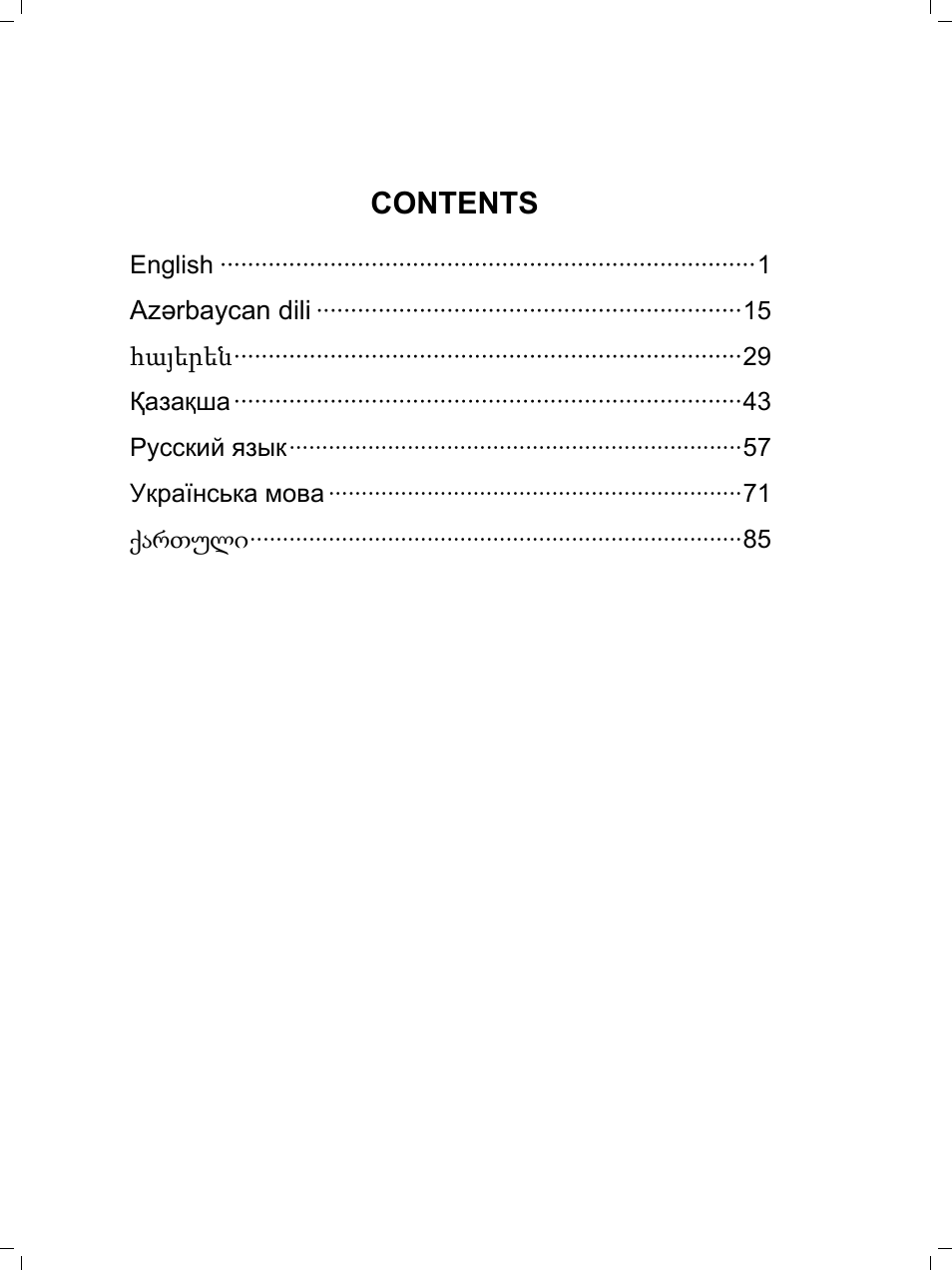

CONTENTS

English

··············································································

1

Azərbaycan dili ······························································

15

հայերեն··········································································

29

Қазақша

··········································································

43

Русский язык·····································································57

Українська мова ·······························································71

ქართული···········································································85

1

Englis

h

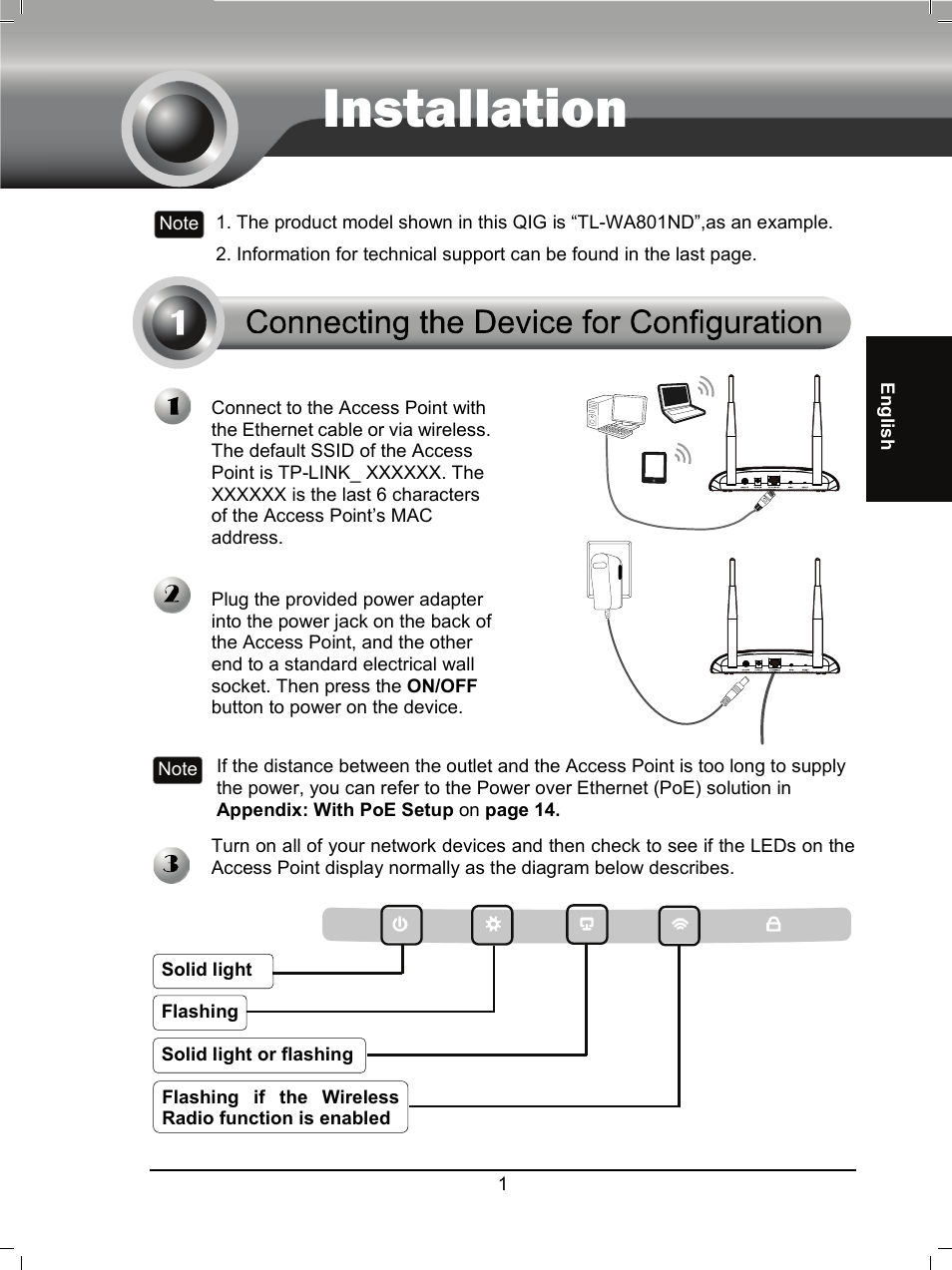

Connect to the Access Point with
the Ethernet cable or via wireless.
The default SSID of the Access
Point is TP-LINK_ XXXXXX. The
XXXXXX is the last 6 characters
of the Access Point’s MAC
address.

Plug the provided power adapter
into the power jack on the back of
the Access Point, and the other
end to a standard electrical wall
socket. Then press the ON/OFF
button to power on the device.

Turn on all of your network devices and then check to see if the LEDs on the
Access Point display normally as the diagram below describes.

Note

If the distance between the outlet and the Access Point is too long to supply
the power, you can refer to the Power over Ethernet (PoE) solution in
Appendix: With PoE Setup on page 14.

Solid light

Flashing

Solid light or flashing

Flashing if the Wireless
Radio function is enabled

Installation

Note

1. The product model shown in this QIG is “TL-WA801ND”,as an example.

2. Information for technical support can be found in the last page.

2

Englis

h

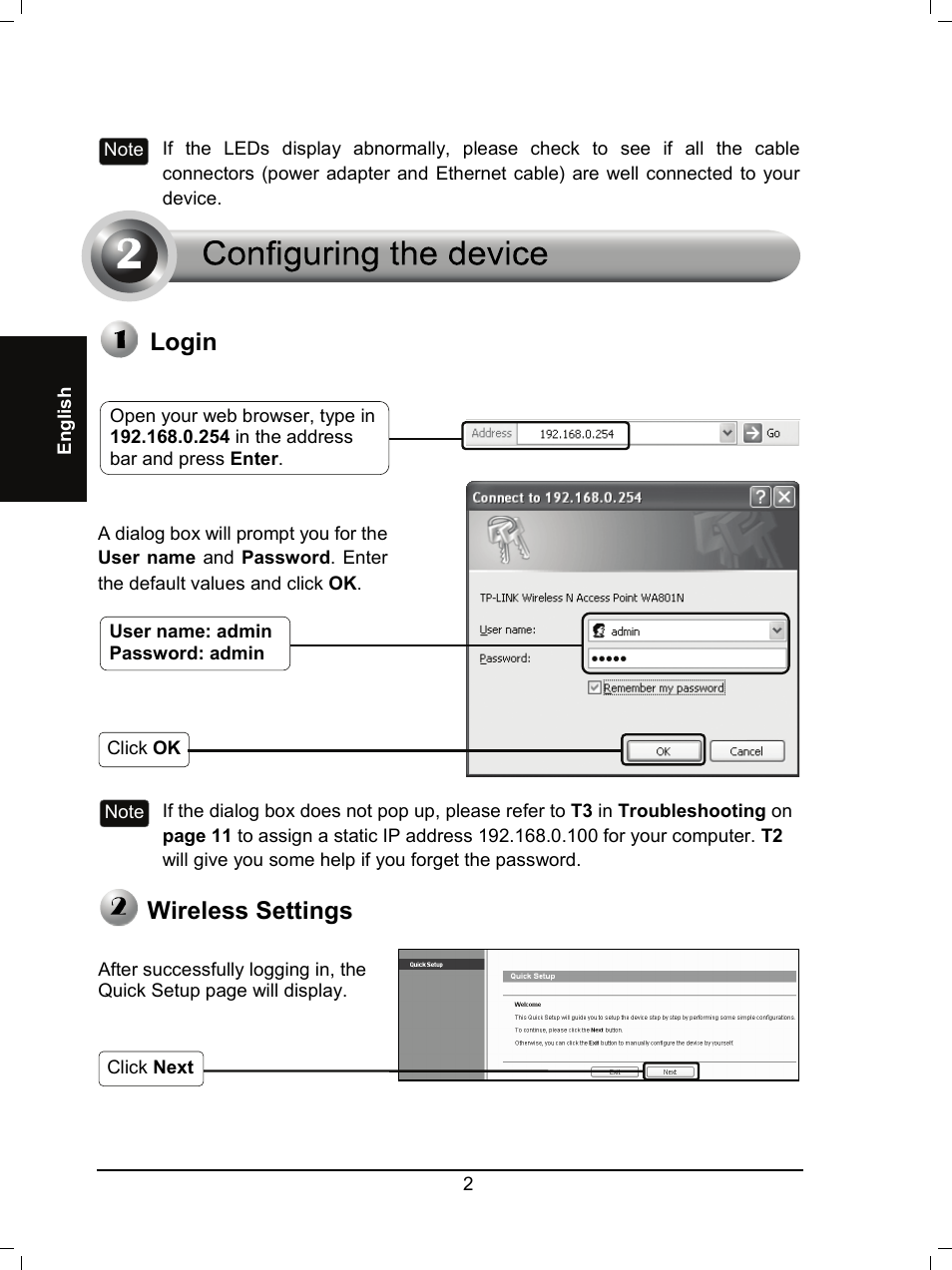

Login

Wireless Settings

A dialog box will prompt you for the
User name and Password. Enter
the default values and click OK.

Note

If the dialog box does not pop up, please refer to T3 in Troubleshooting on
page 11 to assign a static IP address 192.168.0.100 for your computer. T2
will give you some help if you forget the password.

User name: admin
Password: admin

Click OK

Note

If the LEDs display abnormally, please check to see if all the cable
connectors (power adapter and Ethernet cable) are well connected to your
device.

After successfully logging in, the
Quick Setup page will display.

Open your web browser, type in
192.168.0.254 in the address
bar and press Enter.

Click Next

3

Englis

h

A. Access Point Mode

Introduction
In this mode, the product will act as a wireless central hub for your wireless LAN
clients, giving a wireless extension for your current wired network.

For Access Point mode, please refer to part A on page 3.
For Repeater (Range Extender) mode, please refer to part B on page 4.
For Bridge with AP mode, please refer to part C on page 6.
For Client mode, please refer to part D on page 7.
For Multi-SSID mode, please refer to part E on page 8.

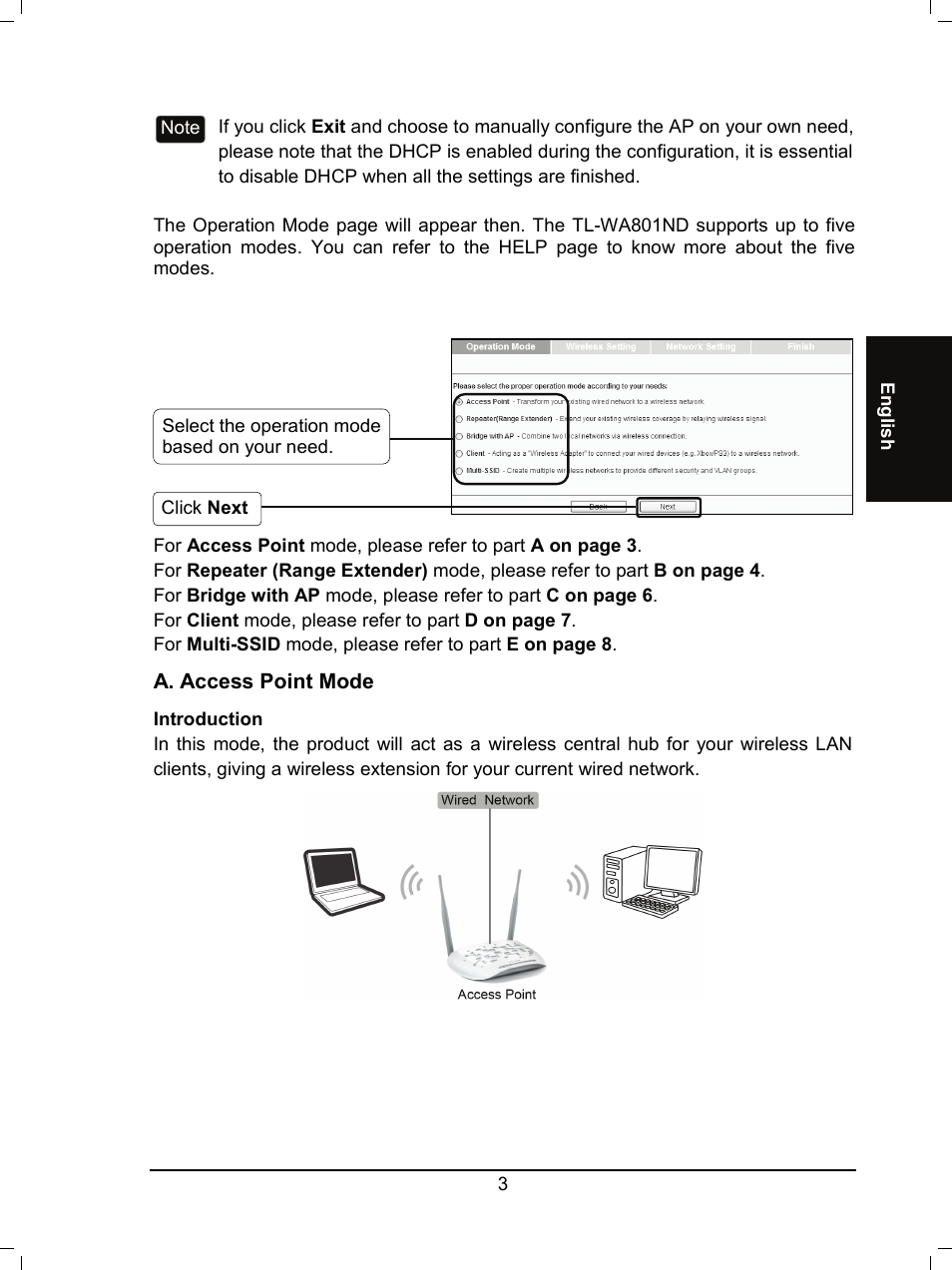

The Operation Mode page will appear then. The TL-WA801ND supports up to five
operation modes. You can refer to the HELP page to know more about the five
modes.

Select the operation mode
based on your need.

Click Next

Note

If you click Exit and choose to manually configure the AP on your own need,
please note that the DHCP is enabled during the configuration, it is essential
to disable DHCP when all the settings are finished.

4

Englis

h

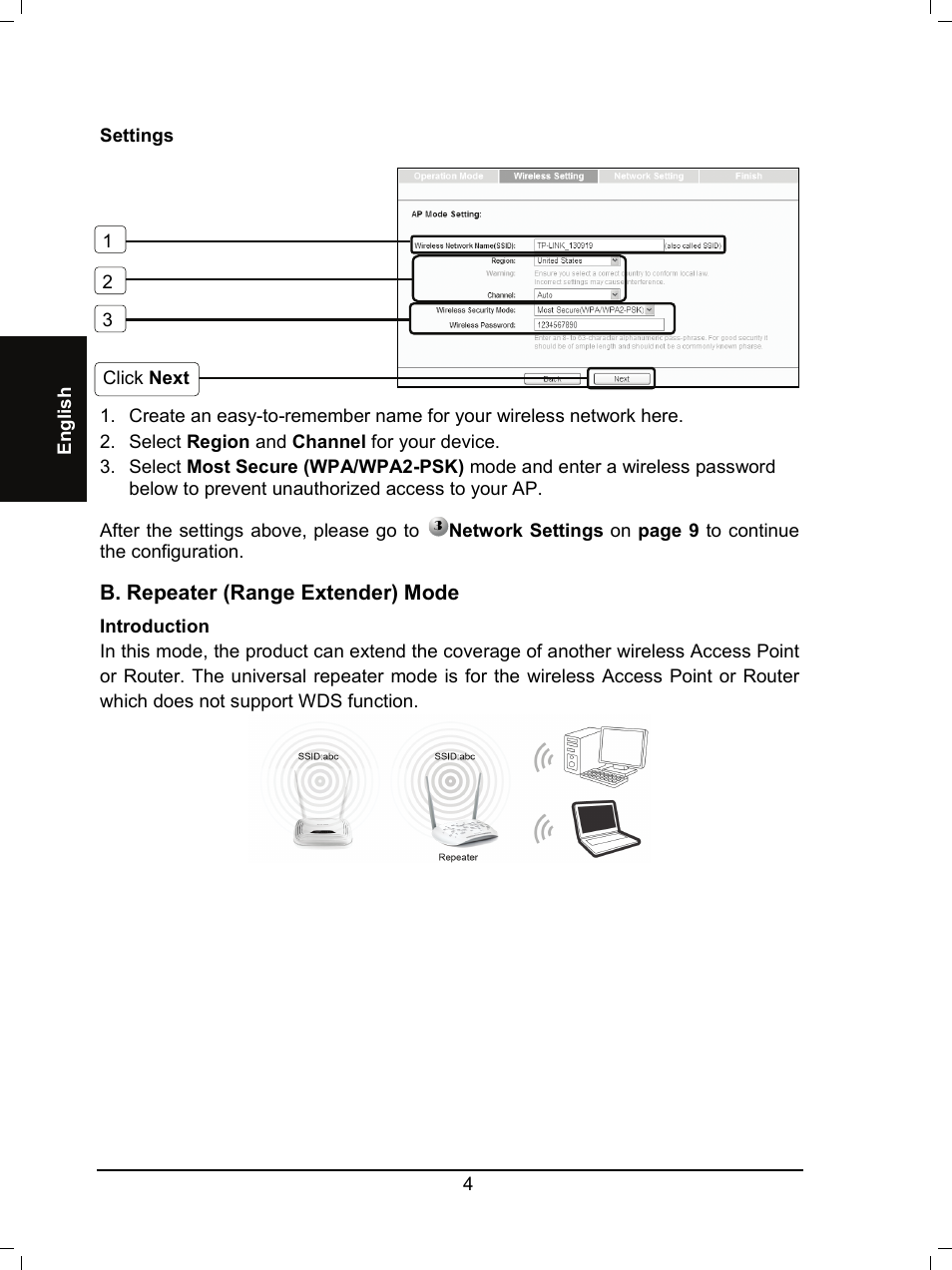

Settings

1. Create an easy-to-remember name for your wireless network here.
2. Select Region and Channel for your device.
3. Select Most Secure (WPA/WPA2-PSK) mode and enter a wireless password

below to prevent unauthorized access to your AP.

After the settings above, please go to

Network Settings on page 9 to continue

the configuration.

B. Repeater (Range Extender) Mode

Introduction
In this mode, the product can extend the coverage of another wireless Access Point
or Router. The universal repeater mode is for the wireless Access Point or Router
which does not support WDS function.

1

2

3

Click Next

5

Englis

h

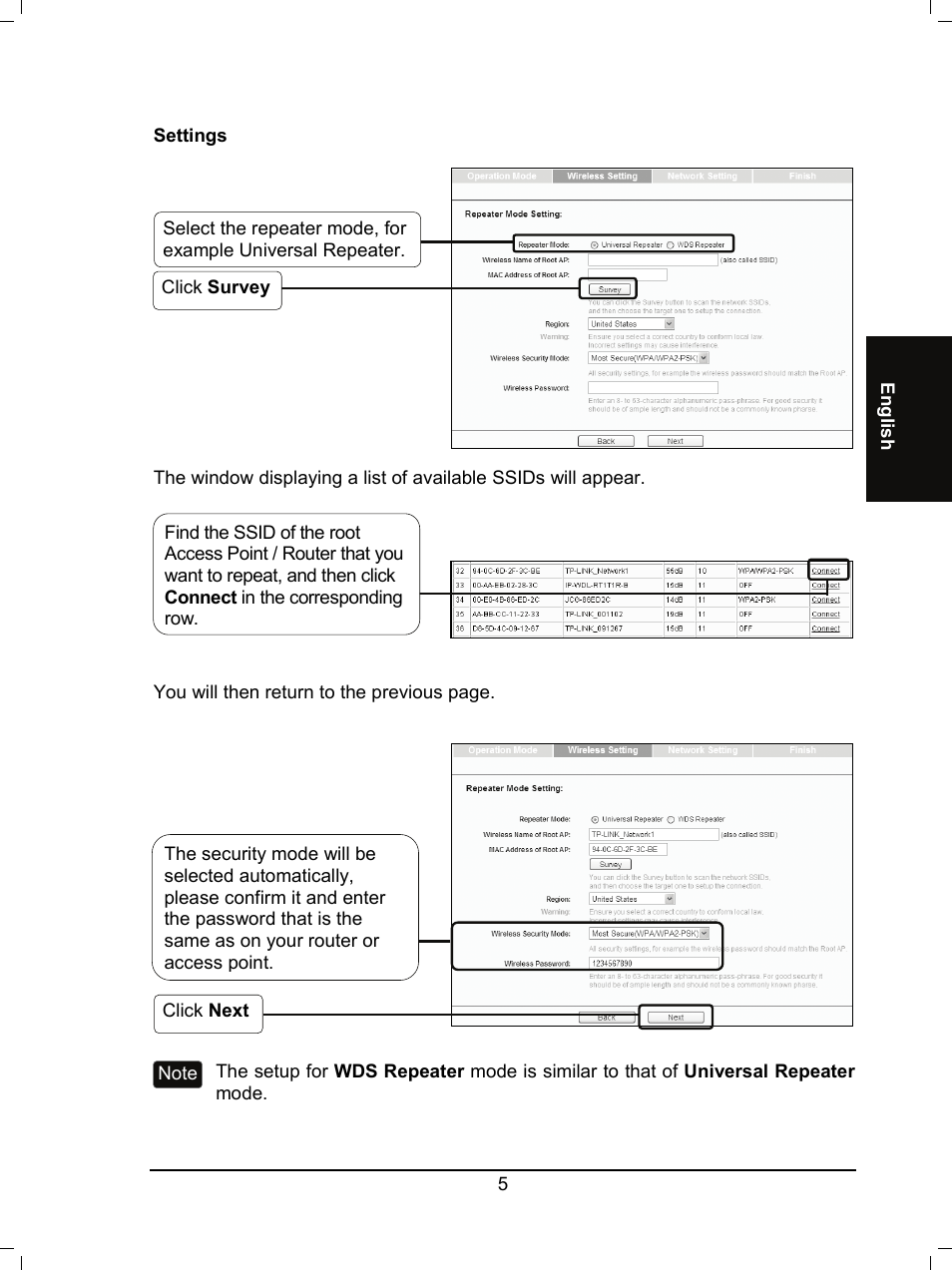

Settings

The window displaying a list of available SSIDs will appear.

You will then return to the previous page.

Select the repeater mode, for
example Universal Repeater.

Click Survey

The security mode will be
selected automatically,
please confirm it and enter
the password that is the
same as on your router or
access point.

Click Next

Note

The setup for WDS Repeater mode is similar to that of Universal Repeater
mode.

Find the SSID of the root
Access Point / Router that you
want to repeat, and then click
Connect in the corresponding
row.

6

Englis

h

After the settings above, please go to

Network Settings on page 9 to continue

the configuration.

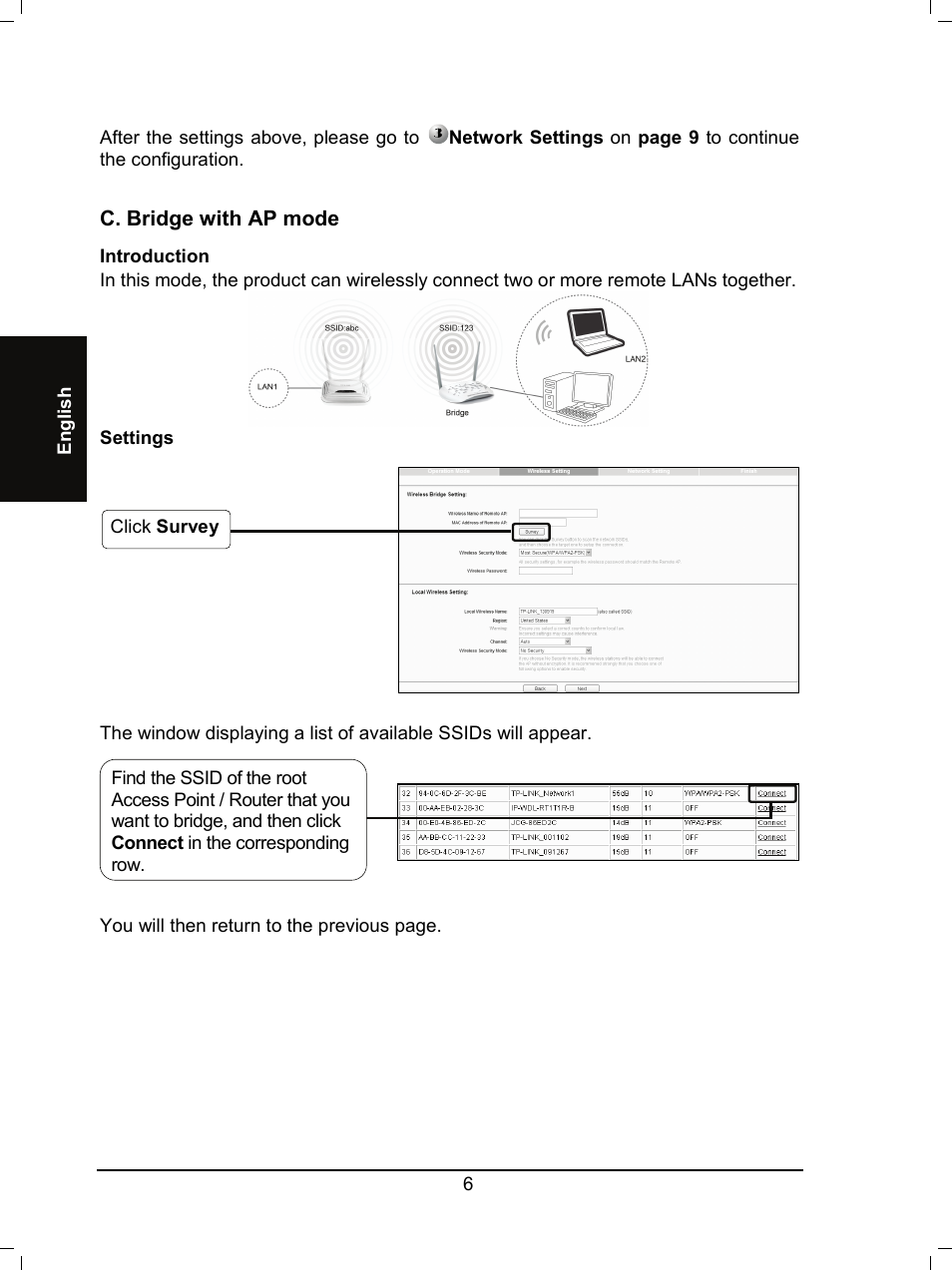

C. Bridge with AP mode

Introduction
In this mode, the product can wirelessly connect two or more remote LANs together.

Settings

The window displaying a list of available SSIDs will appear.

You will then return to the previous page.

Click Survey

Find the SSID of the root
Access Point / Router that you
want to bridge, and then click
Connect in the corresponding
row.

7

Englis

h

After the settings above, please go to

Network Settings on page 9 to continue

the configuration.

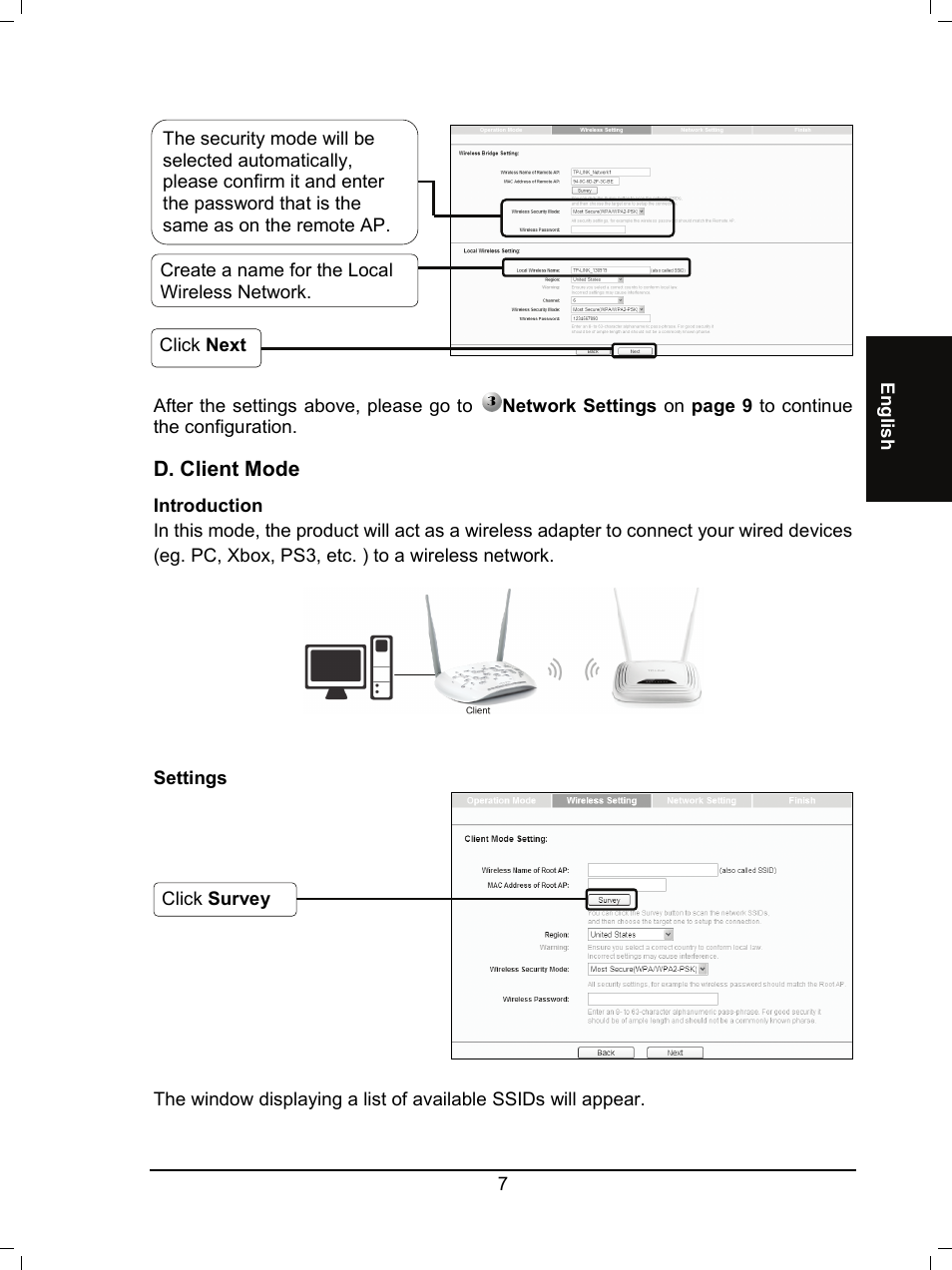

D. Client Mode

Introduction
In this mode, the product will act as a wireless adapter to connect your wired devices
(eg. PC, Xbox, PS3, etc. ) to a wireless network.

Settings

The window displaying a list of available SSIDs will appear.

Click Survey

Click Next

Create a name for the Local
Wireless Network.

The security mode will be
selected automatically,
please confirm it and enter
the password that is the
same as on the remote AP.

8

Englis

h

You will then return to the previous page.

After the settings above, please go to

Network Settings on page 9 to continue

the configuration.

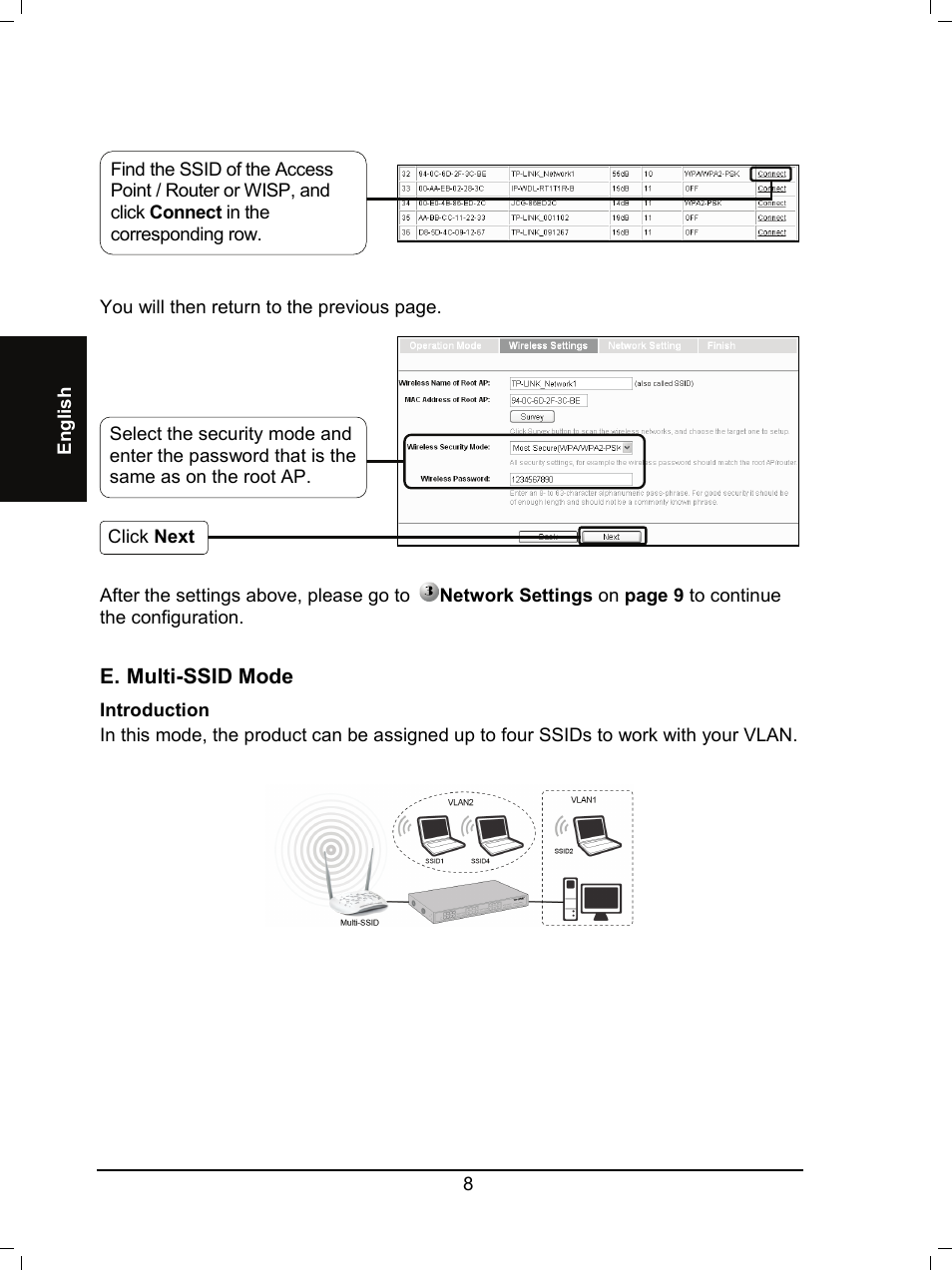

E. Multi-SSID Mode

Introduction
In this mode, the product can be assigned up to four SSIDs to work with your VLAN.

Find the SSID of the Access
Point / Router or WISP, and
click Connect in the
corresponding row.

Click Next

Select the security mode and
enter the password that is the
same as on the root AP.

9

Englis

h

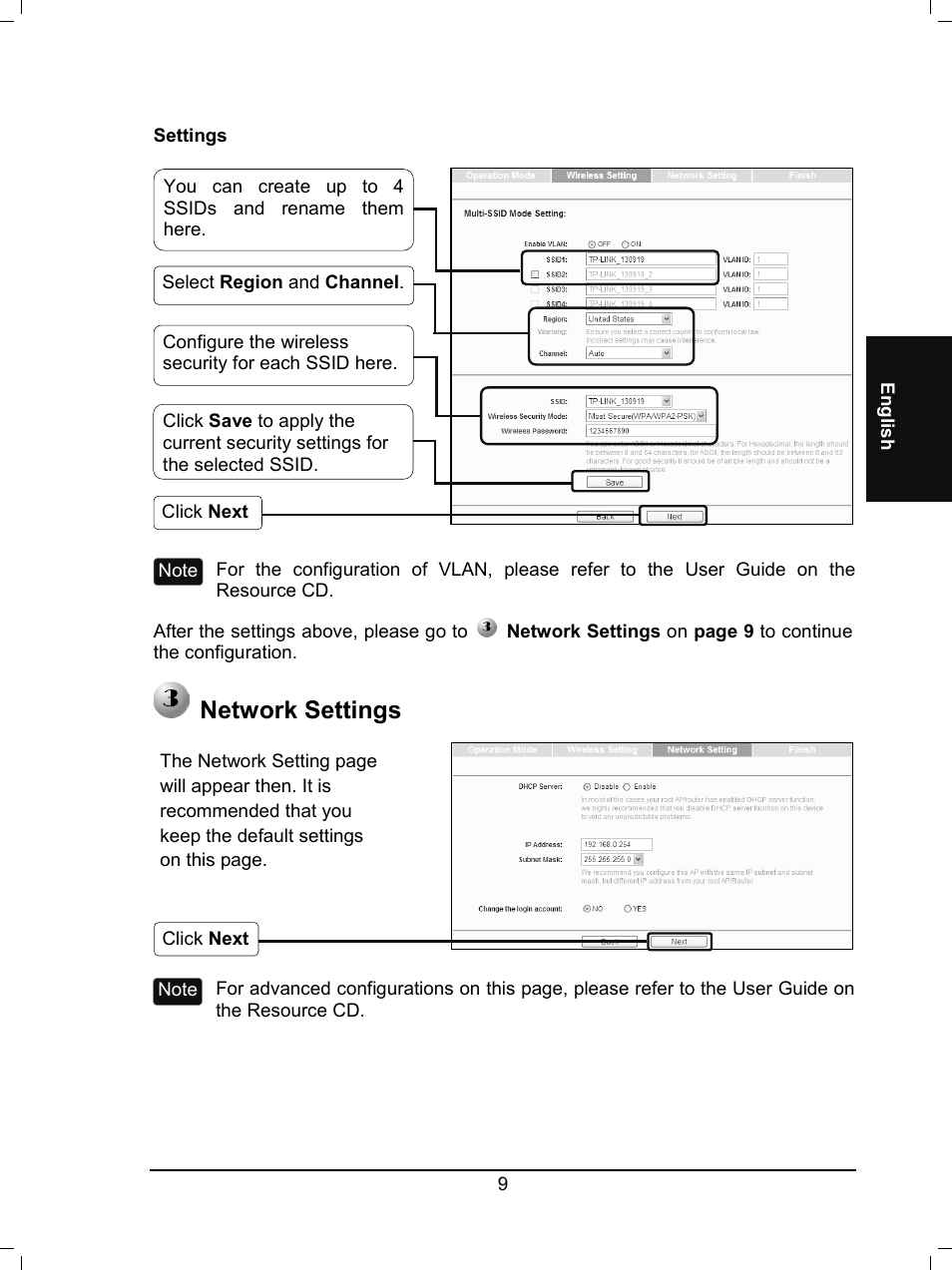

Settings

After the settings above, please go to

Network Settings on page 9 to continue

the configuration.

Network Settings

Note

For advanced configurations on this page, please refer to the User Guide on
the Resource CD.

Click Next

The Network Setting page
will appear then. It is
recommended that you
keep the default settings
on this page.

Note

For the configuration of VLAN, please refer to the User Guide on the
Resource CD.

Click Next

You can create up to 4
SSIDs and rename them
here.

Configure the wireless
security for each SSID here.

Click Save to apply the
current security settings for
the selected SSID.

Select Region and Channel.

Нажмите на кнопку для помощи

Картинка с сайта: emanuals.org

CONTENTS

English ··············································································1

Azərbaycan dili ······························································

15

հայերեն··········································································

29

Қазақша··········································································43

Русский язык·····································································57

Українська мова ·······························································71

ქართული···········································································85

Картинка с сайта: emanuals.org

Installation

Note

1. The product model shown in this QIG is “TL-WA801ND”,as an example.

2. Information for technical support can be found in the last page.

English

Connect to the Access Point with

the Ethernet cable or via wireless.

The default SSID of the Access

Point is TP-LINK_ XXXXXX. The

XXXXXX is the last 6 characters

of the Access Point’s MAC

address.

Plug the provided power adapter

into the power jack on the back of

the Access Point, and the other

end to a standard electrical wall

socket. Then press the ON/OFF

button to power on the device.

Note

If the distance between the outlet and the Access Point is too long to supply

the power, you can refer to the Power over Ethernet (PoE) solution in

Appendix: With PoE Setup on page 14.

Turn on all of your network devices and then check to see if the LEDs on the

Access Point display normally as the diagram below describes.

Solid light

Flashing

Solid light or flashing

Flashing if the Wireless

Radio function is enabled

1

Картинка с сайта: emanuals.org

Login

English

Wireless Settings

2

A

dialog box will prompt you for the

User name and Password.Ente

r

Note

If the LEDs display abnormally, please check to see if all the cable

connectors (power adapter and Ethernet cable) are well connected to you

the default values and click OK.

User name: admin

Password: admin

Click OK

Note

If the dialog box does not pop up, please refer to T3 in Troubleshooting on

page 11 to assign a static IP address 192.168.0.100 for your computer. T2

will give you some help if you forget the password.

r

device.

A

Open your web browser, type in

192.168.0.254 in the address

bar and press Enter.

fter successfully logging in, the

Quick Setup page will display.

Click Next

Картинка с сайта: emanuals.org

English

For Access Point mode, please refer to part

A. Access Point Mode

Introduction

In this mode, the product will act as a wireless central hub for your wireless LAN

clients, giving a wireless extension for your current wired network.

3

A

Note

If you click Exit and choose to manually configure the AP on your own need,

please note that the DHCP is enabled during the configuration, it is essential

to disable DHCP when all the settings are finished.

The Operation Mode page will appear then. The TL-WA801ND supports up to five

operation modes. You can refer to the HELP page to know more about the five

modes.

Select the operation mode

based on your need.

Click Next

on page 3.

For Repeater (Range Extender) mode, please refer to part B on page 4.

For Bridge with AP mode, please refer to part C on page 6.

For Client mode, please refer to part D on page 7.

For Multi-SSID mode, please refer to part E on page 8.

Картинка с сайта: emanuals.org

Settings

1

2

3

Click Next

1. Create an easy-to-remember name for your wireless network here.

2. Select Region and Channel for your device.

English

3. Select Most Secure (WPA/WPA2-PSK) mode and enter a wireless password

below to prevent unauthorized access to your AP.

After the settings above, please go to

Network Settings on page 9 to continue

the configuration.

B. Repeater (Range Extender) Mode

Introduction

In this mode, the product can extend the coverage of another wireless Access Point

or Router. The universal repeater mode is for the wireless Access Point or Router

which does not support WDS function.

4

Картинка с сайта: emanuals.org

Settings

Select the repeater mode, for

example Universal Repeater.

Click Survey

English

The window displaying a list of available SSIDs will appear.

You will then return to the previous page.

The security mode will be

selected automatically,

please confirm it and enter

the password that is the

same as on your router or

access

5

p

oint.

Click Next

Note

The setup for WDS Repeater mode is similar to that of Universal Repeate

r

Find the SSID of the root

Access Point / Router that you

want to repeat, and then click

Connect in the corresponding

row.

mode.

Картинка с сайта: emanuals.org

After the settings above, please go to Network Settings on page 9 to continue

the configuration.

C. Bridge with AP mode

Introduction

In this mode, the product can wirelessly connect two or more remote LANs together.

Settings

English

Click Survey

The window displaying a list of available SSIDs will appear.

Find the SSID of the root

Access Point / Router that you

want to bridge, and then click

Connect in the corresponding

row.

You will then return to the previous page.

6

Картинка с сайта: emanuals.org

The security mode will be

selected automatically,

please confirm it and enter

the password that is the

same as on the remote AP.

Create a name for the Local

Wireless Network.

Click Next

English

After the settings above, please go to

Network Settings on page 9 to continue

the configuration.

D. Client Mode

Introduction

In this mode, the product will act as a wireless adapter to connect your wired devices

(eg. PC, Xbox, PS3, etc. ) to a wireless network.

Settings

Click Survey

The window displaying a list of available SSIDs will appear.

7

Картинка с сайта: emanuals.org

Find the SSID of the Access

Point / Router or WISP, and

click Connect in the

corresponding row.

You will then return to the previous page.

Select the security mode and

English

enter the password that is the

same as on the root AP.

Click Next

After the settings above, please go to

Network Settings on page 9 to continue

the configuration.

E. Multi-SSID Mode

Introduction

In this mode, the product can be assigned up to four SSIDs to work with your VLAN.

8

Картинка с сайта: emanuals.org

Settings

You can create up to 4

SSIDs and rename them

here.

Select Region and Channel.

Configure the wireless

security for each SSID here.

English

Click Save to apply the

current security settings for

the selected SSID.

Click Next

Note

For the configuration of VLAN, please refer to the User Guide on the

Resource CD.

After the settings above, please go to

Network Settings on page 9 to continue

the configuration.

Network Settings

The Network Setting page

will appear then. It is

recommended that you

keep the default settings

on this page.

Click Next

Note

For advanced configurations on this page, please refer to the User Guide on

the Resource CD.

9

Картинка с сайта: emanuals.org

Finish

After Network Settings,

the Finish page will

appear. Here takes the

settings for Access Point

mode for example.

Check your settings and click

Save to save your settings for

future reference.

English

Click Finish

Click OK

Wait until the device

restarts successfully.

Congratulations! You have completed the setup.

10

Картинка с сайта: emanuals.org

T1. How do I restore my Access Point’s configuration to its factory default settings?

With the Access Point powered on,

use a pin to press and hold the

RESET button on the rear panel fo

English

T2. What can I do if I forget my password?

1) Try to use the default user name and password: admin, admin;

2) Referring to the file that you have saved in

Finish last time you configured

the device, the file will show you the user name and password that you have

configured.

3) If the password is still not the correct one, then you can try to restore the Access

Point’s configuration to its factory default settings referring to previous section

T1 and try to reconfigure your AP by following the instructions of this QIG.

T3. What can I do if I cannot access the web-based configuration page?

Assign a static IP address 192.168.0.100 for your computer first before logging in the

management page. Here takes the procedures in Windows 7 for example.

11

r

Troubleshooting

Troubleshooting

5 to 8 seconds before releasing it.

Hold it in for 5 to 8 seconds

Note

Once the Access Point is reset, the current configuration settings will be lost

and you will need to reconfigure the Access Point.

Go to Start > Settings > Control

Panel, and then you will see the

following page.

Click View network

status and tasks

Картинка с сайта: emanuals.org

Click Change adapter settings

English

Right-click Local Area

Connection

Click Properties

Double-click Internet

Protocol Version 4

(TCP/IPv4)

12

Картинка с сайта: emanuals.org

English

Now, try to log on to the Web-based configuration page again after the above

settings have been configured. If you still cannot access the configuration page,

please restore your Access Point’s factory default settings and reconfigure your

Access Point following the instructions of this QIG. Please feel free to contact our

Technical Support if the problem persists.

Note

While the reconfiguration is done, you need to change the IP address

settings as below. Then, with the correct hardware connection, you can sur

Select Obtain an IP address

automatically

Select Obtain DNS server

address automatically

13

f

Select Use the following IP

address

Enter the 192.168.0.100 into the

IP address field, 255.255.255.0

into the Subnet mask field

Click OK

the Internet successfully.

Картинка с сайта: emanuals.org

Turn off all your network devices,

including your computer(s), power

injector and the AP.

Connect your computer to the

LAN port on the power injector

with an Ethernet Cable.

Connect your AP to the PoE port

English

on the power injector with an

Ethernet Cable.

Plug the provided power adapte

Note

1. Passive PoE Injector supports a maximum cable length up to 30 meters

due to the environment.

2. For longer powered cable up to 100 meters, please choose TP-LINK’s

48V PoE adapters: TL-POE200 or TL-POE150S & TL-POE10R.

Product information can be found on our official website

http://www.tp-link.com.

14

r

into the DC jack on the powe

r

Appendix : With PoE Setup

Appendix : With PoE Setup

injector, and the other end to a

standard electrical wall socket.

Полезен ли этот FAQ?

Ваши отзывы помогают улучшить этот сайт.

Мы хотели бы получить ваши отзывы, пожалуйста, дайте нам знать, как мы можем улучшить этот контент.

Спасибо

Мы ценим ваше мнение.
Нажмите здесь, чтобы связаться со службой технической поддержки TP-Link.
